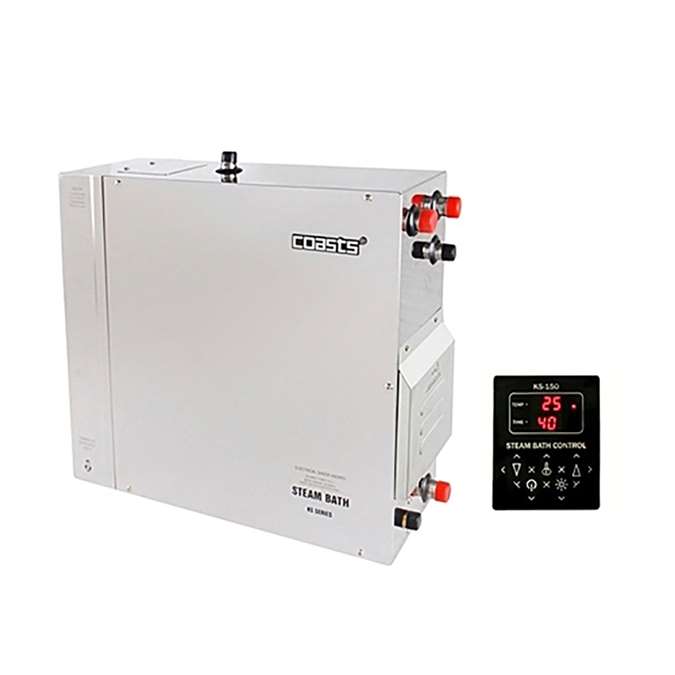

Top Rated 18KW 380V 50HZ 304# Stainless Steel Commercial Steam Generator With Top Service Hole
Item specifics
- Type: Sauna Rooms
- Brand Name: Coasts
- Function: Wet Steam
- Feature: Computer Control Panel
- Model Number: KSA-180
- Main Material: Stainless steel
- Capacity: 10
- Power: 18KW
- Voltage: 380-415V 3N
- Function: Auto Draining
- Water Tank: 304# stainless steel
- Controller: KS-150 touch panel
- Control Panel: Have time and temperature set up
- Certificate: CE
- Shell: 304# stainless steel
Brief introduction:
- NEW steam-proof touch button control panel KS150.
- Could be installed inside the steam room for easy operation. (Available in black and white)
- Display both room temperature and working time.
- Motorized auto-drain system to prolong life of heating elements.
- Automatic water, supplementary function.
- Multiple safety protection.
- Improved water-proof connector
- #304 stainless steel water tank.
- CE certified products.
- Dual steam outlets for large power units 12kw and above, much safer!
- Special water level sensor design for large power units 12kw and above, more stable!
- Top service hole(make the decalssification much easier and without removing existing pipeline).
|
|
Technology information
The standard steam generator is the second generation of our products which covers all power sizes from 3KW to 24KW, 220~240V AC or 380~415V AC. When equipped with KS-150 new water steam-proof digital touch panel, the temperature, working time and even steam room light could be controlled digitally. You could switch between temperature units, and also "Pause" the steam generator from heating when needed without shutting off the whole system.
The Standard steam generator features auto water supplementary system, over-pressure and over-heat protection, and In-generator auto drain system. The segment-heating and self-diagnose function make the heater energy-efficient and easy-operation.
Qualified for CE certification of Europe Union and Tests of China Import and Export Commodity Inspection. The delicately designed Standard series steam generator is durable and efficient, so it covers most requirements of customers, and selected as the "Best-seller" product. We would recommend it as our "STAR" product to everyone.
|
Model
|
Power kW
|
Power requirements 50/60Hz
|
Current (A)
|
Power wire (Copper) N*mm2
|
Dimensions CM
|
Packing dimensions CM
|
Gross weight kg
|
|
KSA-30
|
3.0
|
220-240V~
|
13.6
|
3*2.5
|
42.5*16*30
|
54.5*21.5*42
|
10.5~11
|
|
KSA-40
|
4.0
|
220-240V~
|
18.2
|
3*2.5
|
|
KSA-45
|
4.5
|
220-240V~
|
20.5
|
3*2.5
|
|
380-415V3N~
|
6.8
|
5*1.5
|
|
KSA-50
|
5.0
|
220-240V~
|
22.7
|
3*2.5
|
|
380-415V3N~
|
9.1
|
5*1.5
|
|
KSA-60
|
6.0
|
220-240V~
|
27.3
|
3*4.0
|
|
380-415V3N~
|
9.1
|
5*1.5
|
|
KSA-70
|
7.0
|
220-240V~
|
31.8
|
3*6.0
|
47.5*18.5*45
|
53.5*23*59
|
15.6~16.2
|
|
380-415V3N~
|
11.4
|
5*2.5
|
|
KSA-80
|
8.0
|
220-240V~
|
36.4
|
3*6.0
|
|
380-415V3N~
|
13.6
|
5*2.5
|
|
KSA-90
|
9.0
|
380-415V3N~
|
13.6
|
5*2.5
|
16.4~17
|
|
KSA-105
|
10.5
|
380-415V3N~
|
15.9
|
5*2.5
|
|
KSA-120
|
12.0
|
380-415V3N~
|
18.2
|
5*2.5
|
|
KSA-150
|
15.0
|
380-415V3N~
|
22.7
|
5*2.5
|
51*18.5*46
|
56.5*23*59
|
17.5~18.5
|
|
KSA-180
|
18.0
|
380-415V3N~
|
27.3
|
5*4.0
|
|
KSA-225
|
22.5
|
380-415V3N~
|
34.1
|
5*6.0
|
|
KSA-240
|
24.0
|
380-415V3N~
|
36.4
|
5*6.0
|
|
Notice: KSA steam generator are equipped with auto drain system. 9~12 KW units could be customized to 220~240V on request.
|
