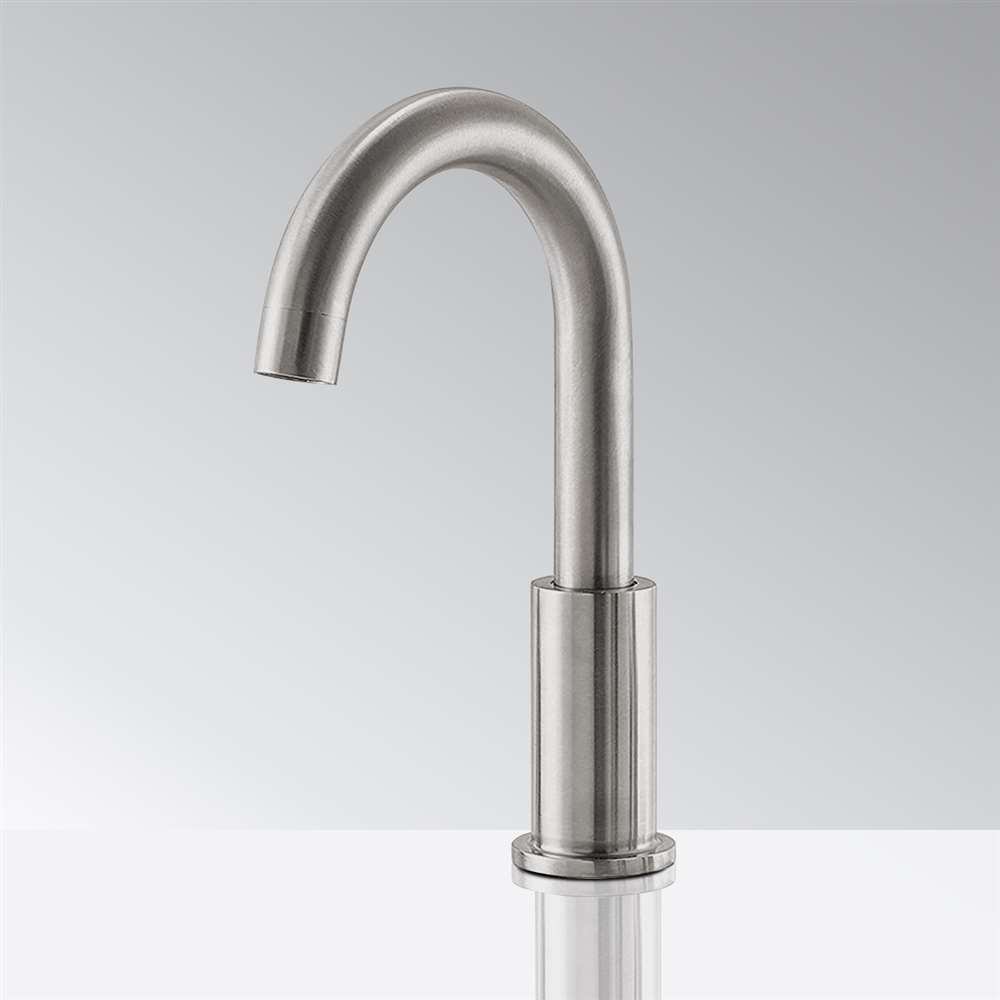

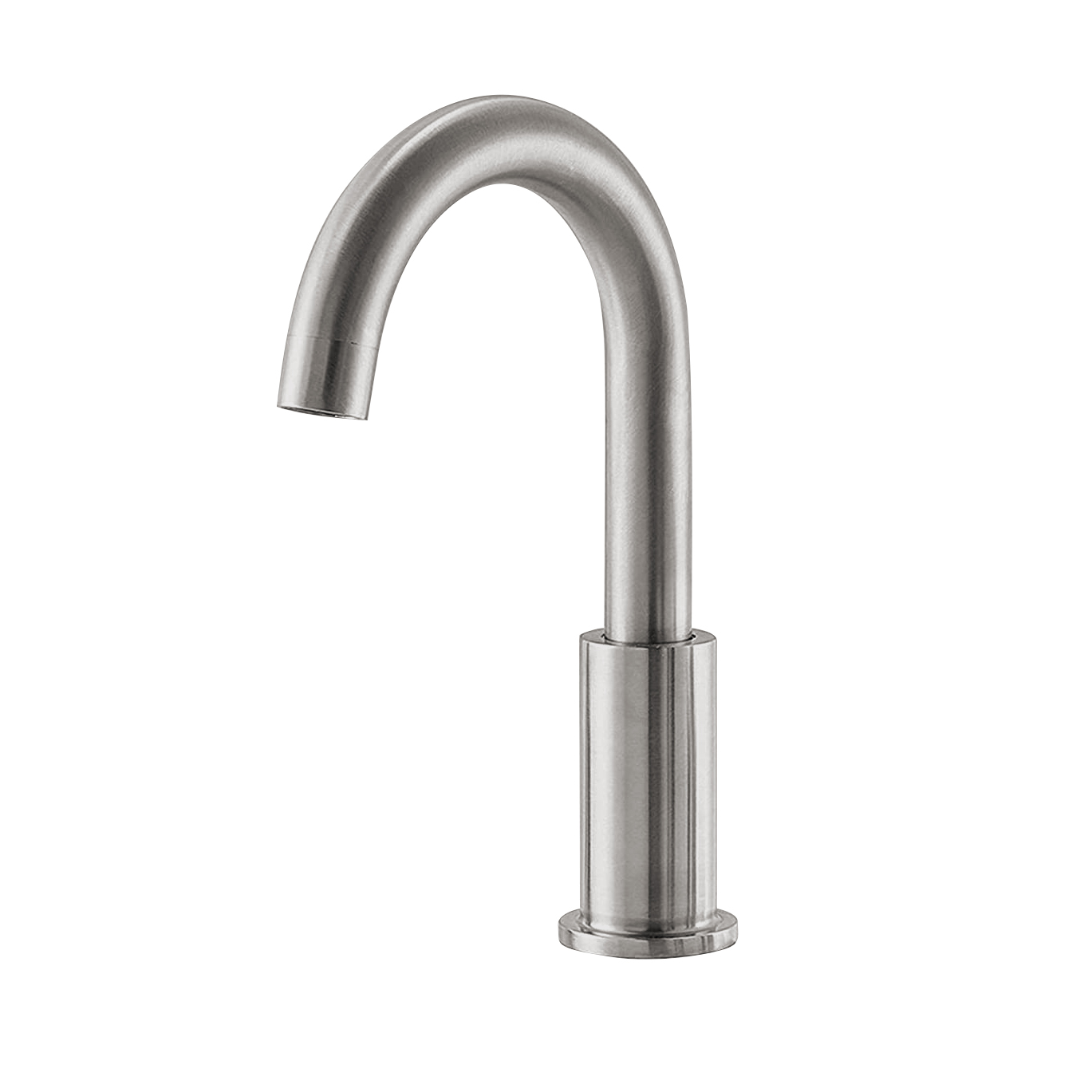

BathSelect Platinum Commercial Automatic Commercial Sensor Faucet with Temperature Control Mixing Valve Available in Brushed Nickel
Platinum Sensor Faucet Special Features:
- Durable Vandal-Resistant Brass Body; Ideal for commercial high traffic use applications
- Intelligent: with its micro-computer controlling its action, the faucet will self-adjust its best detection zone as per the color and shape of the lavatory
- Flashing light indicator; a diagnostic indicator for power up, low battery, and solenoid function.
- The meanings of the codes are described in the installation instructions.
- Convenient to maintain; with a built-in strainer to prevent sundries from entering the solenoid valve and the strainer is easy to clean
- The faucet can be mounted to any sink surface.
- ADA Compliant
- The battery's life is 8,000 cycles per month and with enough water pressure is approximately 5 years service life of the batteries.
- Adjustable sensing range; while the factory range is set about 4"to 5" from the sensor, it can be adjusted.
- Water Flow Rate: 1.3 GPM (gallons-per-minute)
- Power: AC 110V/DC.6V
- Detection Zone: Factory set 25cm/10" (based on standard inductive board)
- Ambient Temperature: 1 - 45 ℃ / 33.8 -113
- Degree of protection by enclosure: 1P56
- Usage: Commercial
- Overall Height: 9.6" (measured from the countertop to the highest part of the faucet)
- Spout Height: 6.7" (measured from countertop to the spout outlet)
- Spout Reach: 5.2" (measured from the center of the faucet base to the center of the spout outlet)
- Mounting Type: Single hole
- Number of Holes Required for Installation: 1
- Faucet Centers (Distance Between Handle Installation Holes): Single Hole
- Flow Rate: 1.3 GPM (gallons-per-minute)
- Maximum Deck Thickness: 1-5/8"
- Infrared sensor operation.
Fits all standard US plumbing.
BathSelect touchless faucet comes with AC/DC option (hardwired and battery backup)
Water Pressure: 0.5 - 7.0 KGS/cm, 10-125 psi.
Touchless Operation
Added feature Temperature Control operation mixer(optional)
Sensitive Sensor with Infrared AI Smart-Chip
Water Pressure: 0.5 - 7.0 KGS/cm, 10 - 125 psi
Solid Brass Construction, Brushed Nickel
Installation made easy with simplified instructions
Water resistant solenoid enclosure
Advanced energy saving design for long lasting battery life
Comes complete with Hoses & Accessories
ADA Compliant
Can be installed in new or retrofit applications
Touchless operation; specifically designed for optimal performance in various commercial use applications, making it ideal for public restrooms, restaurants, office buildings, public facilities and hospitals. Fits all standard US plumbing.
Intelligent: with its micro-computer controlling its action, the faucet can self-adjust its best detection zone as per the color and shape of the lavatory!
The Sensor Faucet finish is Brushed Nickel, with a built-in Infrared AI Smart-Chip No Water Dripping Design with 100% Touch-free operation. Sensor faucet
Platinum Thermostatic Sensor Tap B505 Solid Brass Construction - ADA Compliant
