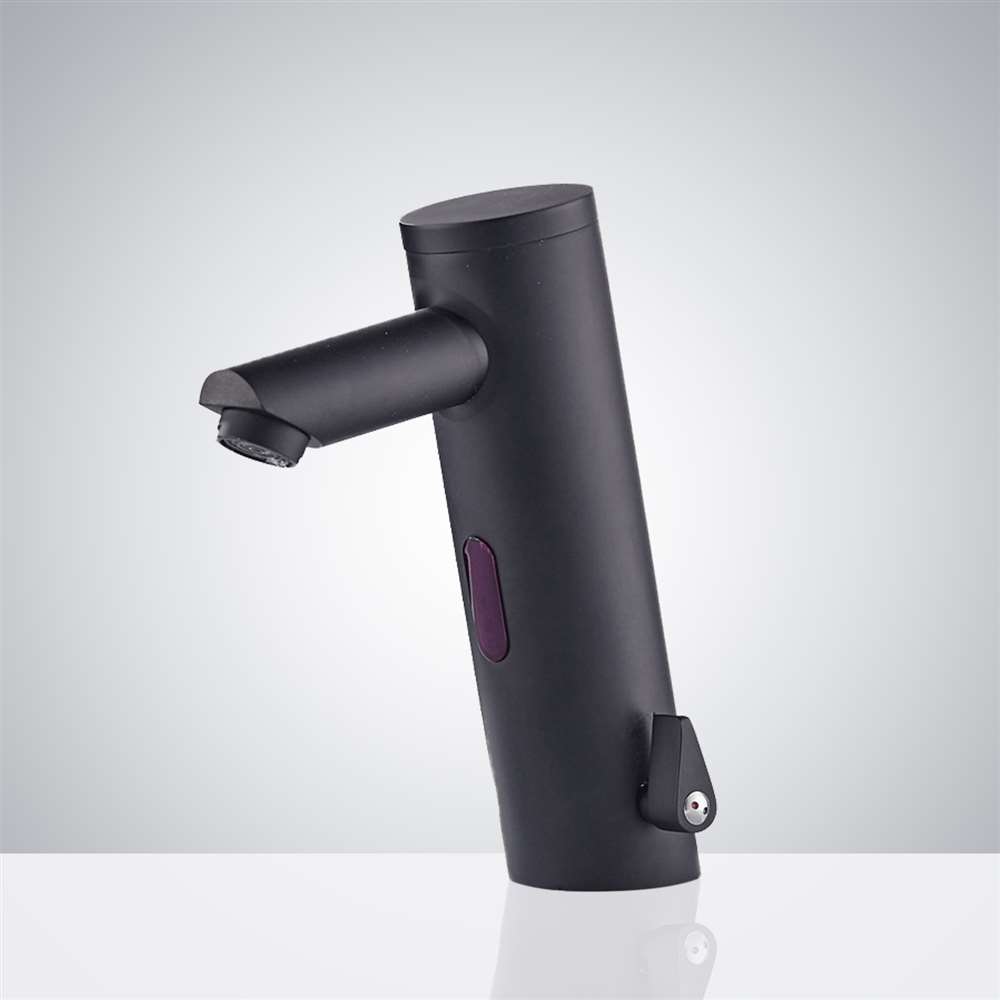

BathSelect Thermostatic Commercial Automatic Motion Sensor Faucet Solid Brass Construction in Matte Black

Intelligent: with its micro-computer controlling its action, the faucet can self-adjust its best detection zone as per the color and shape of the lavatory!

Sensor Faucet finish is polished chrome, with built-in Infrared AI Smart-Chip No Water Dripping Design with 100% Touch-free operation.

Sensor faucet meets ADA regulations

Reduces the transfer of germs by preventing cross-contamination and re-contamination of germs and bacteria by not touching the faucet handles. Cut down on water usage by minimizing and eliminating unnecessary, unattended water flow.

Sensor Faucet Special Features:

• Durable Vandal-Resistant Brass Body; Ideal for commercial high traffic use applications
• Intelligent: with its micro-computer controlling its action, the faucet will self-adjust its best detection zone as per the color and shape of the lavatory
• Flashing light indicator; diagnostic indicators for power up, low battery, and solenoid function.
• The meanings of the codes are described in the installation instructions.
• Convenient to maintain; with a built-in strainer to prevent sundries from entering the solenoid valve and the strainer is easy to clean
• The faucet can be mounted to any sink surface.
• ADA Compliant
• The battery's life is 8,000 cycles per month and with enough water pressure is approx 5 years service life of the batteries.
• Adjustable sensing range; while the factory range is set about 4"to 5" from the sensor, it can be adjusted.

• Diameter of inlet pipe: DN15
• Diameter of outlet pipe: DN15
• Water Flow Rate: 1.3 GPM (gallons-per-minute)
• Power: DC.6V
• Detection Zone: Factory set 25cm/10" (based on standard inductive board)
• Ambient Temperature: 1 - 45 �Ž / 33.8 -113 �‹
• Degree of protection by enclosure: 1P56

• Need matching pop up drain? Select here

• Overall Height: 7" (measured from the countertop to the highest part of the faucet)
• Spout Height: 3-1/2" (measured from the countertop to the spout outlet)
• Spout Reach: 4" (measured from the center of the faucet base to the center of the spout outlet)
• Mounting Type: Single hole
• Number of Holes Required for Installation: 1
• Faucet Centers (Distance Between Handle Installation Holes): Single Hole
• Flow Rate: 1.3 GPM (gallons-per-minute)
• Maximum Deck Thickness: 1-5/8"
• Infrared sensor operation with temperature control.
