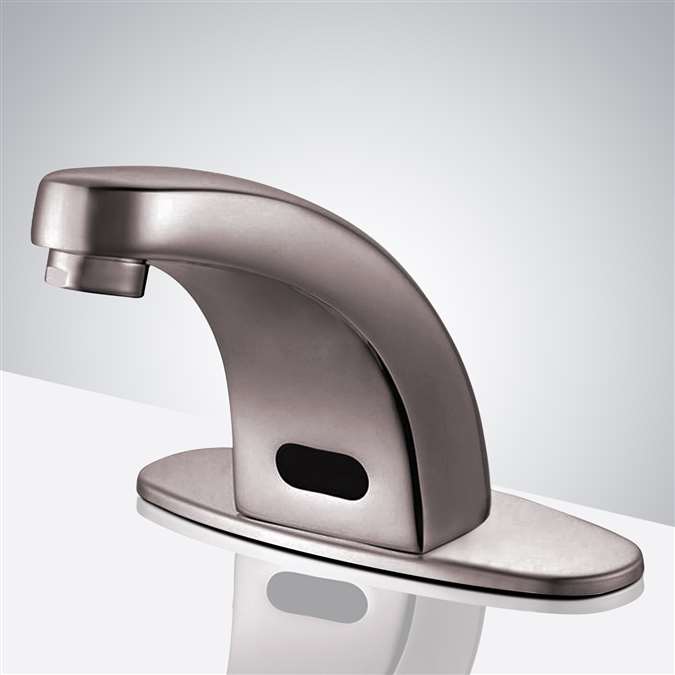

Salina Commercial Automatic Sensor Faucet designed for new and retrofit installations
|
- Durable solid-brass construction; expertly crafted
- Motion detection touchless sensor faucet operation
- Drip Free Ceramic Disc Cartridge for Smooth and Long Lasting Operation
- Sensitive Sensor with Infrared AI Smart-Chip
- Factory set to 30-second Auto Shutoff (can be adjusted).
- Water Pressure: 0.5 - 7.0 KGS/cm, 10 - 125 psi
- Solid Brass Construction, Chrome Finish
- Installation made easy with simplified instructions
- Water resistant solenoid enclosure
- Advanced energy saving design for long lasting battery life
- Comes complete with Hoses & Accessories
- Power Supply: AC110V And DC6V (batteries not included)
- AC/DC power option.
- ADA Compliant
- Stainless Steel Hoses Included
- Can be installed in new or retrofit applications.
- Suitable Places: family bathrooms, hotels, office buildings, airports, medical institutions, and public restrooms
- Usage: Commercial
- Touchless operation; specifically designed for optimal performance in various commercial use applications, making it ideal for public restrooms, restaurants, office buildings, public facilities and hospitals. Fits all standard US plumbing.
|
The Salina Sensor Faucet is intelligent: with its micro-computer controlling its action, the faucet can self adjust its best detection zone as per the color and shape of the lavatory! Sensor Faucet finish is polished chrome, with built-in Infrared AI Smart-Chip.No Water Dripping Design with 100% Touch-free operation.
|
Reduces the transfer of germs by preventing cross-contamination and re-contamination of germs and bacteria by not touching the faucets or handles. Cut down on water usage by minimizing waste of water while soaping, lathering, scrubbing, and drying hands by eliminating unnecessary and unattended water flow.
Sensor Activated Faucet Special Features:
- Durable Vandal-Resistant Brass Body; Ideal for commercial high traffic use applications
- Intelligent: with its micro-computer controlling its action, the faucet will self adjust its best detection zone as per the color and shape of the lavatory
- Flashing light indicator; a diagnostic indicator for power up, low battery, and solenoid function.
- The meanings of the codes are described in the installation instructions.
- Convenient to maintain, with a built-in strainer to prevent sundries from entering the solenoid valve and the strainer is easy to clean
- The faucet can be mounted to any sink surface.
- ADA Compliant.
- The battery's life is 8,000 cycles per month and with enough water pressure is approx 5 years service life of the batteries.
- Adjustable sensing range, while the factory range is set about 4"to 5" from the sensor, it can be adjusted.
|
Diameter of the inlet pipe
|
DN15
|
|
Diameter of the outlet pipe
|
DN15
|
|
Water Pressure
|
0.05Mpa - 0.7Mpa
|
|
Power
|
DC.6V
|
|
Detection Zone
|
Factory set 25cm/10" (based on standard inductive board)
|
|
Ambient Temperature
|
1 - 45 ℃ / 33.8 -113 °F
|
|
Degree of protection by enclosure
|
1P56
|
Installation Manual For Salina Commercial Touchless Sink Faucet
Sensor Faucets Simple Installation Instructions FAQ-Sensor Faucet
Reduces the transfer of germs by preventing cross-contamination and re-contamination of germs and bacteria by not touching the faucets or handles. Its a best touchless bathroom faucet. Cut down on water usage by minimizing waste of water while soaping, lathering, scrubbing and drying hands by eliminating unnecessary and unattended water flow Uses 4AA Alkaline Batteries (purchase separately).Water Pressure: 0.5 - 7.0 KGS/cm, 10-125 psi.
Technical Details of Salina Touchless Sink Faucet
Sensor Faucet water-saving: water flows out when your hands approach it and stops immediately. Hygienic: self-open and close to free hands from any touching, which can efficiently avoid bacteria mutual infection
Hands Free Detailed Product Description:
- Water-saving: water flows out when your hands approach it and stops immediately
- Hygienic: self-open and close to free hands from any touching, which can efficiently avoid bacteria mutual infections
- Intelligent: with its micro-computer to controlling its action, the faucet can self adjust its best detection zone as per the color and shape of lavatory
- Low power consumption: For DC flushers, 4AA alkaline batteries can be used for 2 years at 200 cycles a day
- Convenient to maintain: There is a strainer inside to prevent sundries from entering the solenoid valve and the strainer is easy to clean
Faucet Line Model:
- Solid Brass Faucet.
- Hermetically Sealed Sensor and Electronics.
- Visible Low Battery Indicator.
- Battery (4 standard AA batteries) or A/C Powered.
- ome owners may find this model a great addition to the powder room or the kids bathroom
- This faucet is shipped complete. ANSI A112.18.1M CSA Standard B125, 2.2 U.S
- GPM Complies with NSF Standard 61, Section 9
- Flow Preventers Stainless Steel Hoses Mounting Hardware Batteries Pre-installed All the hardware necessary for satisfactory installation
- Specifications and Dimensions
- Spout: Chrome Plated
- Solid Brass Power: 4 (AA) Alkaline Batteries or AC Adapter
- Battery life expectancy: 200,000 cycles
- Solenoid valve: 6 Volt magnet latching
- Working Water Pressure: 1 PSI -100 PSI
- Supply Inlet Size: 1/2” NPT Male
- Water Temperature Control: Built-in Pop-Up Drain
- Rod: N/A Sensor type and Location: Active Infrared, Neck mount Sensor
- Microprocessor: Digital, Pug And Play Sensing Range: 2” to 6”
- Response Time: 0.3 Second
- Shut-Off Delay Time: 2 Seconds
- Maximum Running Time: 60 Seconds
- Particle filter size: 50
- Mesh Aerator: 2.2 GPM Standard
Main Features:
- Water-saving: water flows out when your hands approach it and stops immediately
- Hygienic: self-open and close to free hands from any touching, which can efficiently avoid bacteria mutual infections
- Intelligent: with its micro-computer to controlling its action, the faucet can self adjust its best detection zone as per the color and shape of lavatory
- Low power consumption: for 4 AA alkaline batteries can be used for 2 years at 200 cycles a day
- Convenient to maintain: there is a strainer inside to prevent sundries from entering the solenoid valve and the strainer is easy to clean
|
|
|
Perfect
