Installation Manual For Renata 22" Contemporary RGB Multi Color Shower Head
22 Inch dark Oil Rubbed Bronze RGB Multi-Color LED Rain Shower Head with Mixer/Controller Option
With this 2-functions waterfall and rain shower head you can turn on the fun in your shower just by turning on the water, the LED lights will automatically light up and set the mood. They will even change colors automatically based on the water temperature. All this with no batteries, everything is self-powered by a built-in dynamo that takes advantage of the water pressure to create the energy to light the bulbs. LED shower head will turn your shower into one that looks exceptional. This shower combines temperature control and precise water flow regulation. The valve core material is a high quality of ceramic. It has self-cleaning silicon nozzle water and air mixture technology & It shower head is a multifunctional mode like rainfall mode, waterfall, mode, water column hand shower mode. It's a great experience showering with the water falling directly overhead like rain or waterfall, offering you the luxury and relaxing shower enjoyment.
Renata 22" Contemporary RGB Multi-Color Water Powered Led Shower Head Features:
- Brand Name: BathSelect
- Model Number: BTZBD013-1ORB
- Shower Set Feature: Waterfall and Rainfall can work both or separately
- LED Light: Automatically turn on by water pressure and change color
- Anti-Scald Device: Yes

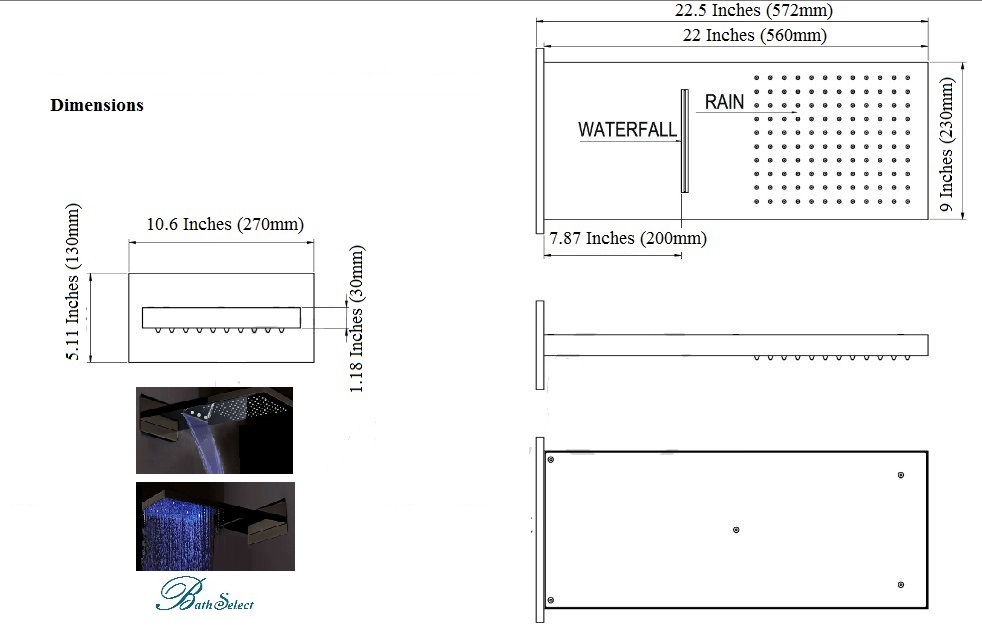

- Height: 1.1"
- Length: 22" (554 mm)
- Width: 9" (230 mm)
- Showerhead Style: RGB Contemporary Rain Shower
- Style: Model Stylish Design
- Showerhead Material: Stainless Steel
- Finish: Oil Rubbed Bronze
- Flow Rate: 2.5 GPM.
- Valve material: Ceramic
- Number of Handles: 3 handles
|
|
BathSelect® Manufacturer Warranty Information![](https://www.bathselect.com/v/vspfiles/assets/images/BathSelect%20Warranty.jpg)
- Before you begin, please read the installation instructions below. Observe all local building and safety codes.
- Unpack and inspect the product for any shipping damages. If you find damages, do not install.
- Please note all showers must be installed by a professional and certified plumber otherwise warranty might be voided
|
|

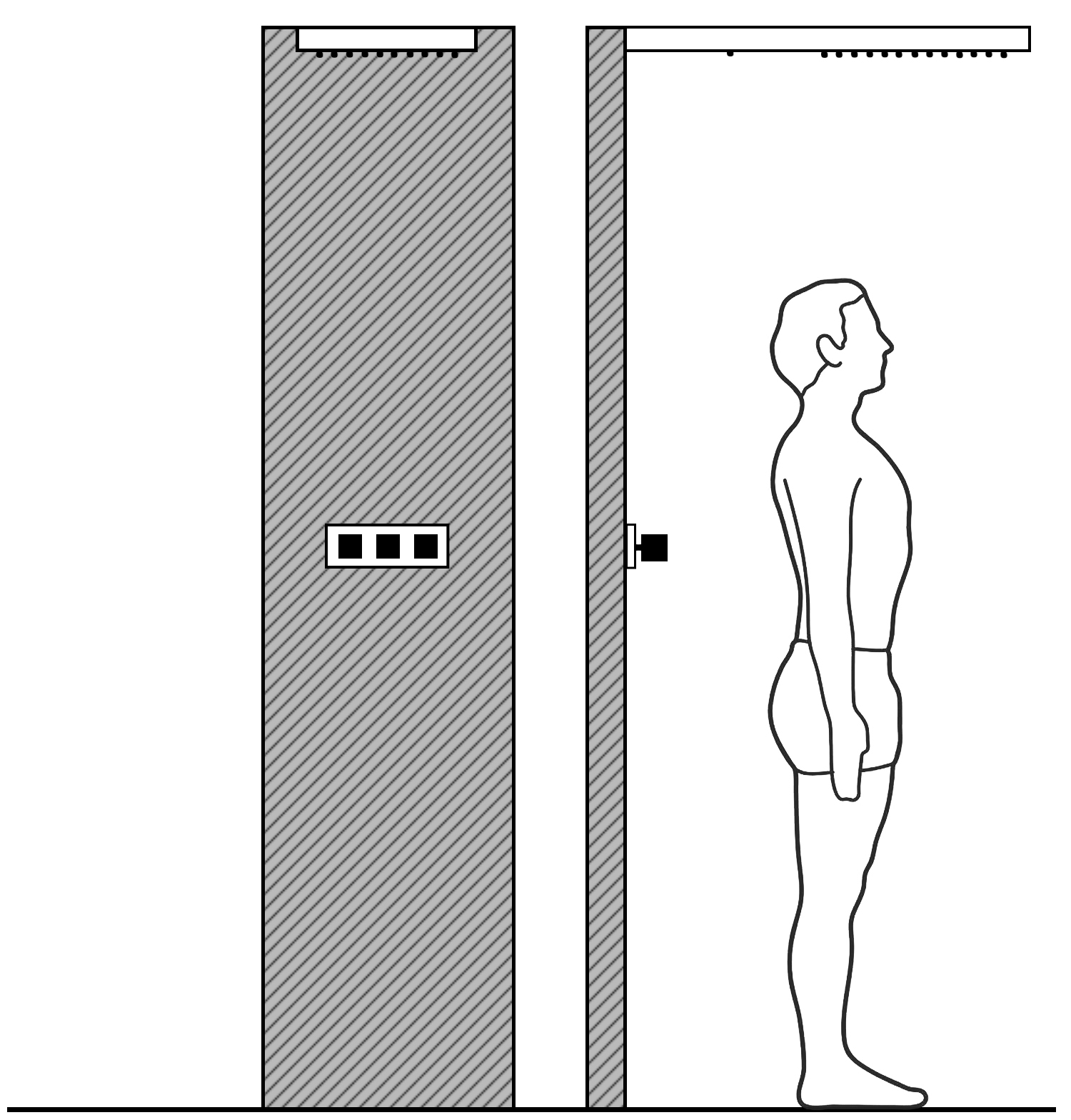

Shower Head Installation
1. Open the top cover and drill according to the marked position.
- Mark by the position of the four holes.
- Take care to avoid wires and pipes to prevent damage.
- Be sure to confirm that the four holes are on the same horizontal line.
2. Two inlet fittings are connected to the pipe joint of the wall; then the nut, expansion screw, and inlet pipe are connected.
3. Reinstall the top cover.
![](/v/vspfiles/assets/images/1 Renata 22 Contemporary RGB Multi Color Water Powered Led Shower Head.jpg)

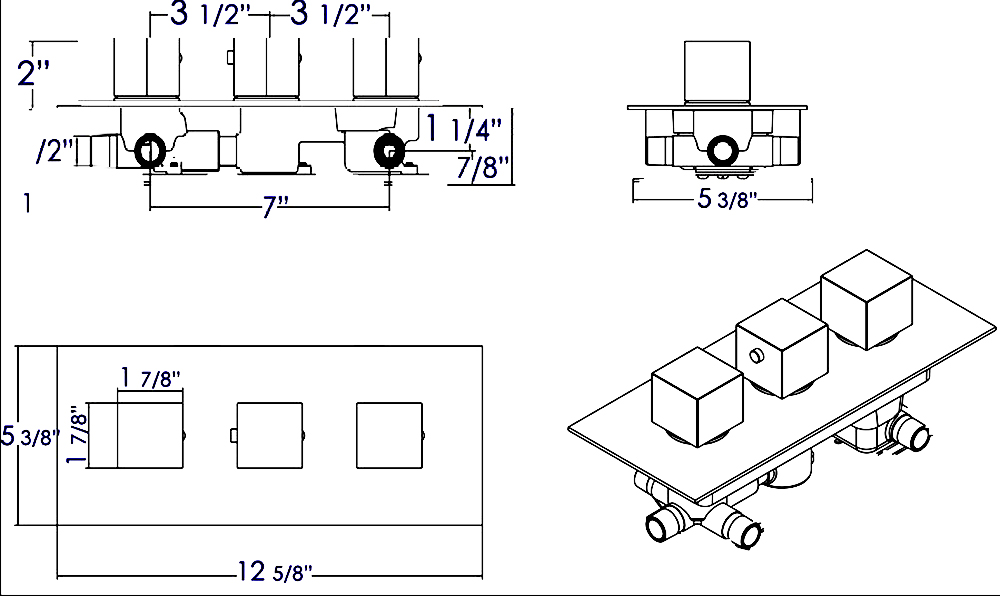

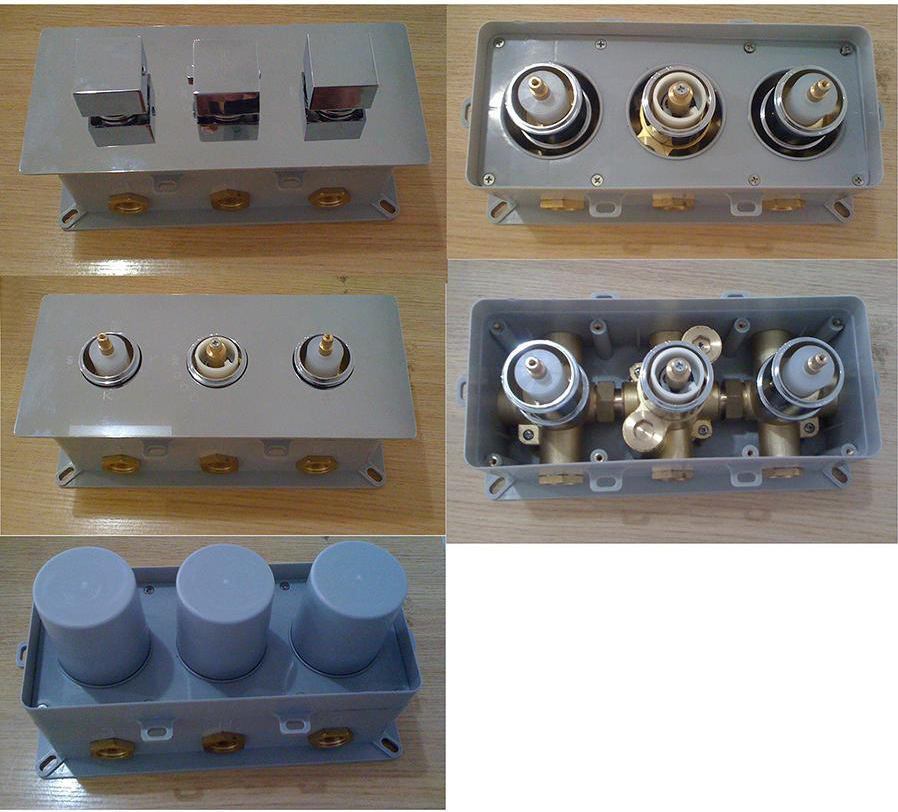

Mixer
![](/v/vspfiles/assets/images/Perugia 16 Ceiling Mount LED Shower Head with Body Massage Jets 3.jpg)
![](/v/vspfiles/assets/images/Perugia 16 Ceiling Mount LED Shower Head with Body Massage Jets 4.jpg)

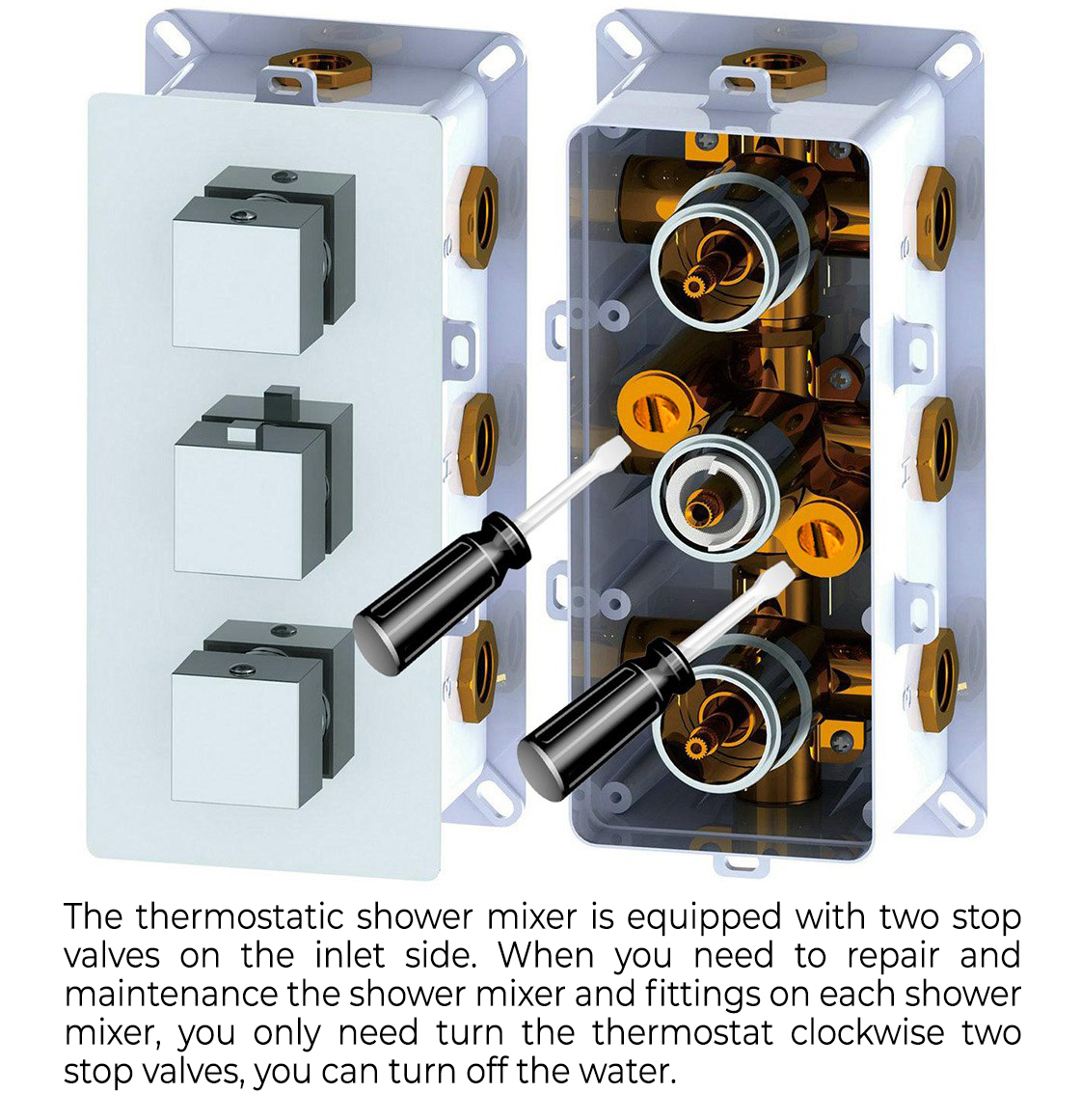

![](/v/vspfiles/assets/images/Reno Brass Multi-Function Shower System 13.jpg) The thermostatic shower mixer is equipped with two stop valves on the inlet side. When you need to repair and maintenance the shower mixer and fittings on each shower mixer, you only need to turn the thermostat clockwise two stop valves, you can turn off the water.
|
