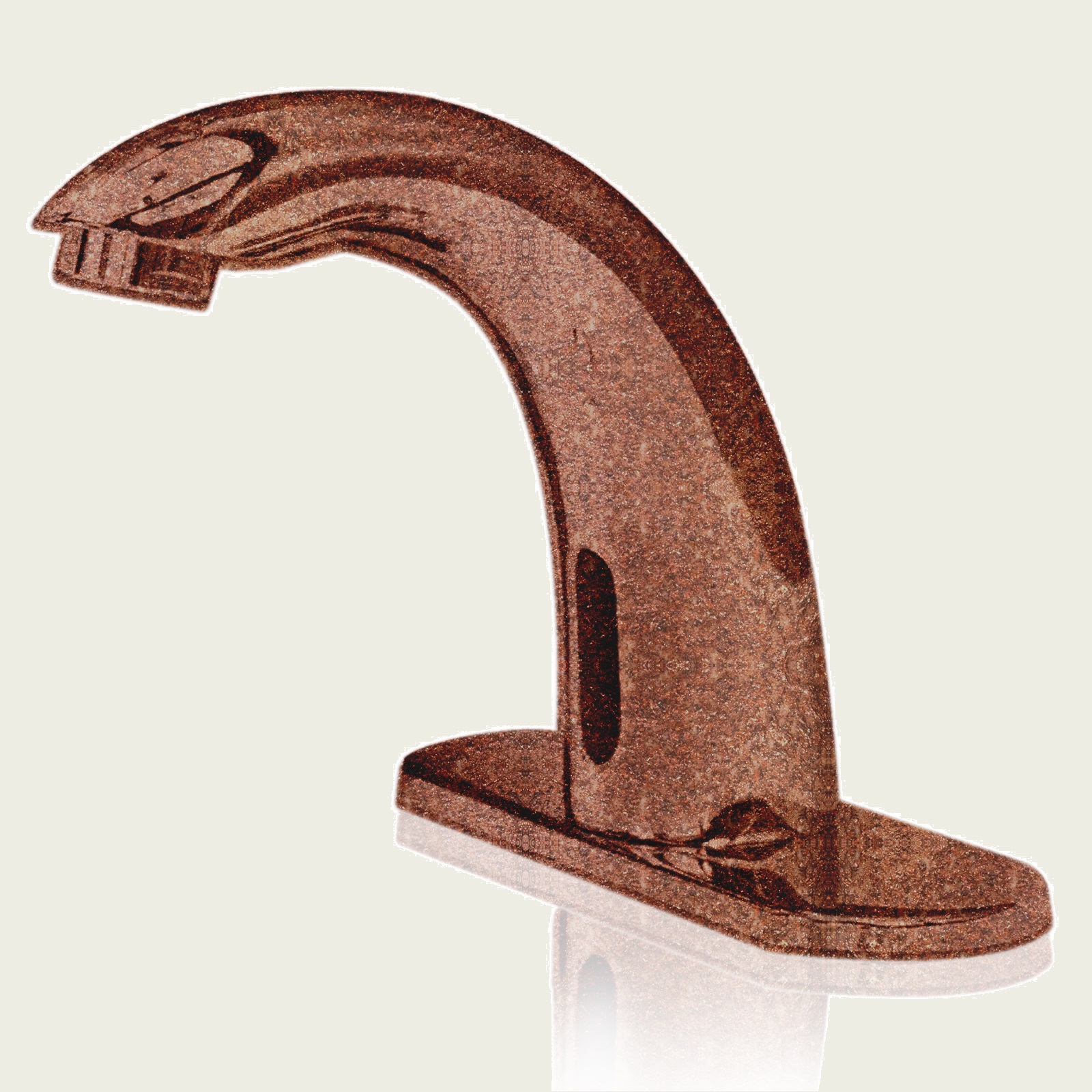

Plato Copper Tone Sensor Faucet - designed for a unique style
Plato Sensor Faucet
Here is a faucet in a class of its own. It has a striking unique copper tone finish which sets your restroom apart from others. The infrared sensors enable a totally hands-free operation, effectively preventing transfer of germs. This Plato copper tone finish sensor faucet is compatible with all standard US plumbing. The Infrared AI Smart-Chip enables complete touch-less operation. The faucet comes with easy installation instructions and all the required hoses and accessories. There is a water-resistant solenoid enclosure, which houses the solenoid valve set at a 30-second shutoff, but can be adjusted according to user preferences. The faucet uses 4AA alkaline batteries and has an advanced energy-saving design for longer battery life but can also run on AC110V. Water pressure delivery is 0.5 - 7.0 KGS/cm, 10-125 psi. The robust brass construction has a unique copper tone finish, giving the faucet a sleek, aesthetically-pleasing effect. The faucet can be used in commercial and residential locations, and is ADA Compliant, and has a 3-year warranty. This cast brass electronic faucet in reduces the transfer of germs by preventing cross-contamination and re-contamination of germs and bacteria by not touching the faucets or handles. Fits all standard US plumbing.
- Complete motion detection touchless operation
- Sensitive Sensor with Infrared AI Smart-Chip
- Factory set to 30-second Auto Shutoff (can be adjusted).
- Water Pressure: 0.5 - 7.0 KGS/cm , 10 - 125 psi
- Solid Brass Construction, Copper tone Finish
- Installation made easy with simplified instructions
- Water resistant solenoid enclosure
- Advanced energy saving design for long lasting battery life
- Sensor faucet comes complete with Hoses & Accessories
- Power Supply: AC110V And DC6V (batteries not included)
- AC/DC power option.
- Fit for residential or commercial use applications.
- ADA Compliant.
- Can be installed in new or retrofit applications.
- Comes with 3 Year Warranty
|
Intelligent: with its micro-computer controlling its action, the motion sensor faucet can self adjust its best detection zone as per the color and shape of lavatory!Sensor Faucet finish is polished chrome, with built-in Infrared AI Smart-Chip No Water Dripping Design 100% Touch-free operation
|
Reduces the transfer of germs by preventing cross-contamination and re-contamination of germs and bacteria by not touching the faucets or handles. Cut down on water usage by minimizing waste of water while soaping, lathering, scrubbing and drying hands by eliminating unnecessary and unattended water flow.
Sensor Activated Faucet Special Features:
- Durable Vandal-Resistant Brass Body; Ideal for commercial high use restroom applications
- Intelligent: with its micro-computer controlling its action, the faucet will self adjust its best detection zone as per the color and shape of lavatory
- Flashing light indicator; a diagnostic indicators for power up, low battery, and solenoid function.
- Meaning of the codes are described in the installation instructions.
- Convenient to maintain; with built-in strainer to prevent sundries from entering the solenoid valve and the strainer is easy to clean
- Faucet can be mounted to any sink surface.
- ADA Compliant.
- Batteries life 8,000 cycles per month and with enough water pressure is approx 5 year service life of the batteries.
- Adjustable sensing range; while the factory range is set about 4"to 5"from the sensor, it can be adjusted.
|
Diameter of inlet pipe
|
DN15
|
Diameter of outlet pipe
|
DN15
|
Water Pressure
|
0.05Mpa - 0.7Mpa
|
Power and Voltage
|
DC.6V
|
AC.220V - 50/60Hz
|
Power Consumption
|
0.5MW
|
<2W
|
Detection Zone
|
Factory set 25cm/10" (based on standard inductive board)
|
Ambient Temperature
|
1 - 45 ℃ / 33.8 -113 °F
|
Degree of protection by enclosure
|
1P56
|
Lano Sensor Faucet water-saving; hygienic; automatically opens and closes to free hands - no touch, avoid bacteria mutual infections!A great addition to powder room; kids bathroom, hotels, restaurants, public places, government facilities...! - This Sensor Faucet Applications; Residential, Commercial use & ADA
- This faucet is shipped complete. ANSI A112.18.1M CSA Standard B125, 2.2 U.S.
- GPM Complies with NSF Standard 61, Section 9
- Flow Preventers Stainless Steel Hoses Mounting Hardware Batteries Pre-installed
- All the hardware necessary for satisfactory installation
- Specifications and Dimensions
- Spout: Chrome Plated Solid Brass Power: 4 (AA) Alkaline Batteries or AC Adapter
- Battery life expectancy: 250,000 cycles Solenoid valve: 6 Volt magnet latching
- Working Water Pressure: 1 PSI -100 PSI
- Supply Inlet Size: 1/2” NPT Male
- Water Temperature Control;
check Options for temperature control sensor faucets - Built-in Pop-Up Drain
- Rod: N/A
- Sensor type and Location: Active Infrared, Neck mount Sensor
- Microprocessor: Digital, Pug And Play Sensing Range: 2” to 6”
- Response Time: 0.3 Second
- Shut-Off Delay Time: 2 Seconds
- Anti vandalism maximum Running Time: 60 Seconds
- Particle filter size: 50
- Mesh Aerator: 2.2 GPM Standard
|
|
|
|
|
|
|
|
|
|
|
|
|
Features
Plato Electronic Sensor Faucet
- copper tone Finish Product Description Infrared sensor operated, touch-free operation
- Advanced energy saving design for long lasting battery life
- Waterproof sensor
- Battery low LED light indicator
- Sensing distance adjusted automatically
- Long life durable body
- Advanced circuit design saves electricity and water
- Battery: 4 x 'AA' size cells
- Operational water pressure range: 0.05 - 0.6MPa
- US standard water supply pipe size: DN15 (G1/2")
- Ambient temperature range: 0.1 - 45ºC
- Sensing distance: 25cm
- Time delay: 0.5 seconds
- Operation duration: power will automatically cut off after continuous use for 60 seconds
- Pop-up drain: Yes
- Color: Copper tone
Sensor Tap Advantage:
- Conserves water
- Saves energy during water heating process
- Hygienic, no-touch activation
- Easy installation
- Durable, solid all-brass construction
- Built-in filter
- ADA complaint Ideal for use by disabled people
- Vandal resistant
- Waterproof Components
|
|
|
|
|
|
|
