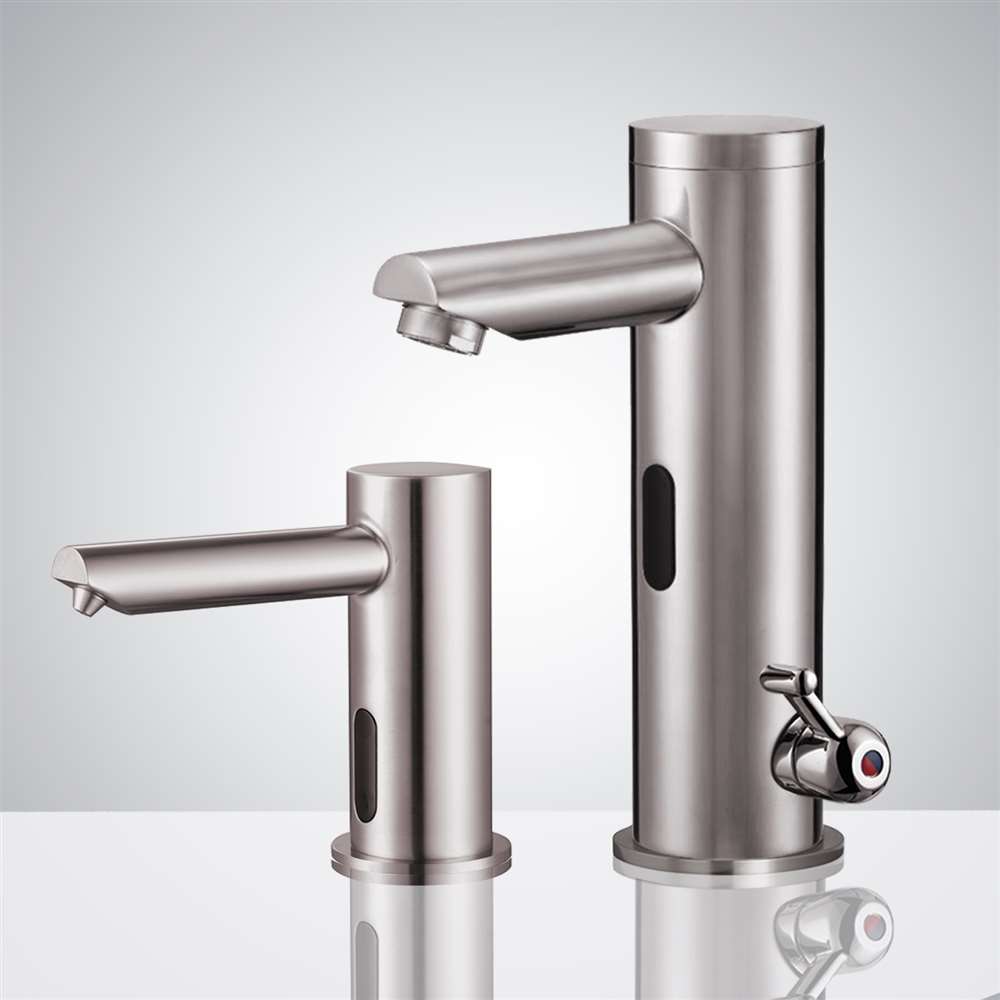

Munich Thermostatic Sensor Faucet & Automatic Soap Dispenser For Restrooms In Brushed Nickel
- Touchless Operation
- Sensitive Sensor with Infrared AI Smart-Chip
- Added feature Temperature Control operation
- Factory se to 30-second Auto Shutoff (can be adjusted).
- Water Pressure : 0.5 - 7.0 KGS/cm , 10 - 125 psi
- Solid Brass Construction, Brushed Nickel Finish
- Installation made easy with simplified instructions
- Water resistant solenoid enclosure
- Advanced energy saving design for long lasting battery life
- Comes complete with Hoses & Accessories
Power Supply : AC110V And DC6V (batteries not included)
- AC/DC power option.
- ADA Compliant, commercial sensor faucet.
- Can be installed in new or retrofit applications.
- Usage: Commercial / Residential
- Ideal for commercial use applications in public restrooms, restaurants, office building, public facilities, hospitals.
- Fits all standard US plumbing.
All Parts in one perfect product;
Ceramic Cartridge;
Built-in check valve;
Sensor control;
|
Intelligent : with its micro-computer controlling its action, the faucet can self adjust its best detection zone as per the color and shape of lavatory!
Temperature Control Sensor Faucet finish is Brushed Nickel, with built-in Infrared AI Smart-Chip No Water Dripping Design 100% Touch-free operation.

|
Reduces the transfer of germs by preventing cross-contamination and re-contamination of germs and bacteria by not touching the faucet handles. Cut down on water usage by minimizing waste of water while soaping, lathering, scrubbing and drying hands by eliminating unnecessary and unattended water flow.
Sensor Activated Faucet Special Features :
- Durable Vandal-Resistant Brass Body; Ideal for commercial high use restroom applications
- Intelligent : with its micro-computer controlling its action, the faucet will self adjust its best detection zone as per the color and shape of lavatory
- Flashing light indicator; a diagnostic indicators for power up, low battery, and solenoid function.
- Meaning of the codes are described in the installation instructions.
- Convenient to maintain; with built-in strainer to prevent sundries from entering the solenoid valve and the strainer is easy to clean
- Faucet can be mount to any sink surface.
- ADA Compliant.
- Batteries life 8,000 cycles per month and with enough water pressure is approx 5 year service life of the batteries.
- Adjustable sensing range; while the factory range is set about 4"to 5"from the sensor, it can be adjusted.
-
Diameter of inlet pipe:
DN15
-
Diameter of outlet pipe:
DN15
-
Water Pressure:
0.05Mpa - 0.7Mpa
-
Power:
DC.6V
-
Flow Rate:
0.5 GPM (1.9 L/min)
-
Detection Zone:
Factory set 25cm/10" (based on standard inductive board)
-
Ambient Temperature:
1 - 45 ℃ / 33.8 -113 ° F
-
Degree of protection by enclosure:
1P56
Heavy Duty Lavatory Automatic Sensor Faucet, Solid Brass, Generally Suitable for High Traffic Commercial and Residential Applications.
- Specifications:
Overall Height :
7" (measured from counter top to the highest part of the faucet)
- Spout Height : 3-1/2" (measured from counter top to the spout outlet)
- Spout Reach : 4" (measured from the center of the faucet base to the center of spout outlet)
- Mounting Type : Single hole
- Number of Hole Required for Installation: 1
- Faucet Centers (Distance Between Handle Installation Holes) : Single Hole
- Flow Rate : 1.3 GPM (gallons-per-minute)
- Maximum Deck Thickness : 1-5/8"
- Infrared sensor operation
Automatic Commercial Faucet Brushed Nickel
Temperature Control Thermostatic technology that controls the temperature fluctuations at the outlet, preventing scalding ,while mixing the water at the desirable temperature at the point of use.
The B5125D-BNSD Temperature Control lavatory faucet features an integrated above counter mixer built into the faucet body, a 2-8 inch sensor range, and built in brass solenoid. Maintenance of the B5125D-BNSD is simple and can be performed in minimal time. The faucet is equipped with a sensor override and a 60-second time out feature to prevent floods. The Fontana® faucet line is certified to meet ASME A112.18.1/CSA B125.1.This contemporary angel spouts single post AC/DC operated faucets provide facilities with ultimate reliability and easy maintenance. Perfect for hotels, private washrooms and other public commercial lavatories. Ideal for commercial use applications in public restrooms, restaurants, office building, public facilities, hospitals. Fits all standard US plumbing.
|
