How to install a wall mount shower system with digital display mixer

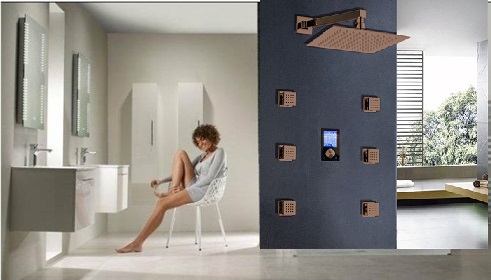

Trialo Light Oil Rubbed Bronze finish Solid Brass Color Changing LED Rain Shower Head with Digital Mixer and Adjustable Body Jets
Turn on the fun in your shower just by turning on the water, the LED lights will automatically light up and set the mood. The Trialo Solid Brass Ceiling Mount Led Shower System can experience the true feeling of rain, as well as SPA body massage spray, relieving fatigue and stress. It is your best choice, a choice to enjoy life. The lights will dim and brighten when you lower and raise the pressure so you can set the perfect mood, water, and light. The showerhead will automatically change colors according to the temperature of the water so you always know how the water will feel on your skin just by looking at it. The elderly, children and pregnant women can use. This is a touch screen digital temperature control valve LED shower set. When the temperature exceeds 50 degrees will automatically stop working, preventing burns. LED lights can change color with different temperatures automatically. The thermostatic shower system is high flow shower valve, new technological coating layers electroplating to anti-rust, never get rust.
Trialo Light Oil Rubbed Bronze Shower Set Features:
- Brand Name: BathSelect
- Model Number: BST-052-ORB
- Material: Solid Brass
- Finish: Light Oil Rubbed Bronze
- Style: Contemporary Rain Showerhead
- Showerhead Thickness: 0.33
- Showerhead Sizes: 8", 10", 12", 16"
- Body Sprays: Comes in set of 6 body sprays
- Control Digital: Control Thermostatic Mixer
- LED Power Source: Water Flow
- LED Color: Blue, Green, Red
- Mount Method: Wall or Ceiling Mount
- Connection:1/2" US standard
- Body Jet Size: 5x5 inches
- Mixer: Solid Brass
- Anti Scard Device
- Connection Threading: US Universal Standard
- Flow rate is 2.5 GPM
|
.jpg)
|
  BathSelect® Manufacturer Warranty Information
- Before you begin, please read the installation instructions below. Observe all local building and safety codes.
- Unpack and inspect the product for any shipping damages. If you find damages, do not install.
- Please note all showers must be installed by a professional and certified plumber otherwise warranty might be voided
|
shower
|
|
Shower Head Installation
Step 1
|
shower
|
Step 2
|
shower
|
Step 3
|
|
Step 4
|
|
Step 5
|
|
Step 6
|
Step 1
|
shower
|
Step 2
|
|
|
|
- Use your hands counter clockwise to unscrew the old showerhead and removed it.
- Take out the showerhead, make sure the shower filter is placed in the connector.
- Ensure the showerhead full horizontal alignment wall mounted shower arm thread.
- Use your hands clockwise to tighten showerhead.
Shower Body-Jet Installation
|
|
Step 1
|
shower
|
Step 2
|
shower
|
|
|
Step 3
|
|
Step 4
|
|
|
|
|
Step 1:
Multiple Bodyspray Installation
• Water Supply
• Nipple Mamelon Nipple
• Pressure Balancing Loop
1. Route the water supply lines.
2. If installing more than one bodyspray off the same supply line, construct a pressure balancing loop. Locate a tee along the loop at each bodyspray installation location.
3. Do not strap the pipes at this time.
Single Bodyspray Installation
• Nipple Mamelon Nipple
1. Route the water supply line.
2. Install an elbow to the end of the supply pipe at the bodyspray installation location.
Step 2:
Install the Plaster Guard
• Elbow (or Tee)
• Install the plaster guard
Set Piping Depth
Align mark with the front of the stud face
• Thin Wall
Align mark with the front of the stud face
• Standard Wall
install the plaster guard. Push until the plaster guard is snug against the face of the elbow (or tee).
|
|
Step 3:
1. Install the water-resistant wallboard.
2. Cut out a 4" (10.2 cm) to 4-1/4" (10.8 cm) square at each the installation location.
3. Install the finished wall material.
Step 4:
• Escutcheon
• Leak Shield
• Adapter
• Extension
• Socket Wrench With Bit
• Screw
• Waterway Passage
1. Insert the escutcheon into the rough opening. The double ribs of the leak shield should be facing up.
2. If the leak shield makes contact with the elbow: Enlarge the hole in the back of the leak shield to 1-1/4" (3.2 cm).
3. Thread the adapter onto the nipple using the provided 0.4" bit, 11 mm or 7/16" socket, extension and socket wrench. Use masking tape to hold the bit in place, as the bit could fall off and cause damage.
IMPORTANT! The escutcheon should sit loosely at this point. If it is tight against the wall, use a longer pipe nipple.
4. Align the groove in the waterway with the double ribs on the leak shield.
5. Press the waterway into place over the adapter. Secure the waterway to the adapter with the screw provided.
6. Verify that the escutcheon does not turn or shift.
|
Hand-Held Shower Installation Instructions
|
Step 1:
|
|
Step 2:
|
|
Step 3 & 4:
|
|
Hand
Held
Shower
|
|
Hand
Held
Shower
|
|
|
Handheld Shower
|
|
Handheld Shower
|
|
Handheld Shower
|
|
Step 5:
|
|
Step 6 & 7:
|
|
Step 8:
|
|
|
|
|
|
2. HOLE LOCATIONS FOR WALL MOUNT
Remove Front Cover (A) from Wall Mount (B). Use Wall Mount Screw Holes (C) to place the desired location. Using a punch or awl, tap the screw hole locations.
Holes must be vertically aligned.
3. ANCHOR INSTALLATION
Drill two 1/4” dia. Holes (A). If installing into a studs drill two 1/8” dia. holes and do not use Anchors (B). Insert Anchors (B) into Holes (A) and tap flush with the wall.
4. WALL MOUNT INSTALLATION
Place Wall Mount (A) into wall and inset Mounting Screws (B) through Wall Mount Holes (C) and tighten until Wall Mount (A) is flush with the wall.
Do Not Over Tighten! Insert Front Cover (D) into Wall Mount (A)
5. DROP ELBOW & HOSE INSTALLATION
Apply PTFE plumbers tape on both ends of Pipe Nipple (A) (not included). Screw Pipe Nipple (A) into the elbow inside the wall.
The Pipe Nipple (A) is to project 1/4” – 3/4” from the finished wall. Screw Drop Elbow (B) onto Pipe Nipple (A) and tighten until Drop Elbow (B) is property positioned and flush to the finished wall.
Place Rubber Seal (C) inside Hex Hose Fitting (D). Connect Hex Hose Fitting (D) into Drop Elbow Outlet (E) by turning Hex Hose Fitting (D).
6. UNIT STARTUP
Turn on hot and cold water supplies, and check all connections for leaks.
7. FINAL FLUSHING
For final flushing, turn the valve on and allow water to run through the Hose (A) for several minutes.
Allow water to run for several minutes until all foreign matter clears the line.
8. SHOWER ARM INSTALLATION
Place Rubber Se
|
