Installation Instruction

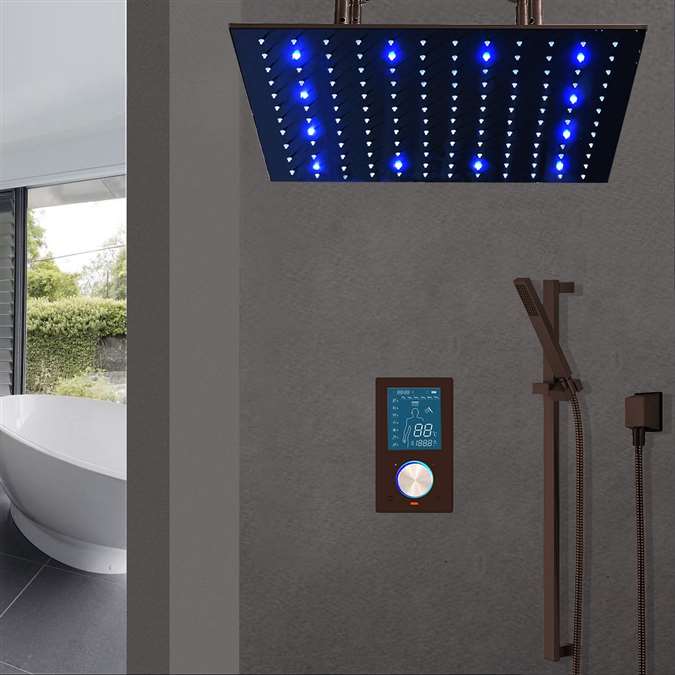

BathSelect Smart LCD Screen 20" Large LED Shower Head With Hand-Shower

BathSelect smart large LED ceiling light-Oil Rubbed Bronze Shower-head with hand shower & body jet spray comes in a high-pressure bathroom head shower. It has a LED bronze shower. This shower set has been made with premium-grade material. The water flow capacity is around 7-9 L/min. The valve core material is a high quality of ceramic. It is a ceiling shower head. It has an electronic intelligent thermostat touch switch & multiple functions like shower time, water flow, screen, water temperature, master switch( temperature control, confirm key), set key(water temperature, flow), function key(hand shower, rainfall, misty). It is your best choice, a choice to enjoy life. The elderly, children and pregnant women can use it. This is a touch screen digital temperature control valve LED shower set.

Features:

  • Brand Name: BathSelect
  • Model Number: BS9642
  • Type: Bathroom Shower Head
  • Installation Mount: Ceiling Mount
  • Number of Handle: Smart Touch Screen
  • Installation Type: US Standard
  • Fixed Support: Yes, Rotatable Type
  • Style: Contemporary
  • Color: Light Oil-Rubbed Bronze
  • Shape: Square
  • Material: Brass
  • Customize: Yes
  • Connection Size: G 1/2"
  • Shower Water Flow: 7-9 L/min
  • Surface Finish: Bronze
  • Surface Treatment: Polished
  • Remote Control: Yes
  • Valve Core Material: Ceramic
  • Hot & Cold Water: Auto-Thermostat Control
  • Surface Treatment: Light Oil-Rubbed Bronze
BathSelect Smart LCD Screen 20" Large LED Shower Head With Hand-Shower
BathSelect® Manufacturer Warranty Information

  • Before you begin, please read the installation instructions below. Observe all local building and safety codes.
  • Unpack and inspect the product for any shipping damages. If you find damages, do not install.
  • Please note all showers must be installed by a professional and certified plumber otherwise warranty might be voided.


Shower Head Installation

BathSelect Smart LCD Screen 20" Large LED Shower Head With Hand-Shower

  • Decorative cover
  • Screws
  • Pipe 1
  • Pipe 2
  • Screw
  • Bolt
  • Nut
  • Water Inlet Pipe

  • BathSelect Smart LCD Screen 20" Large LED Shower Head With Hand-Shower

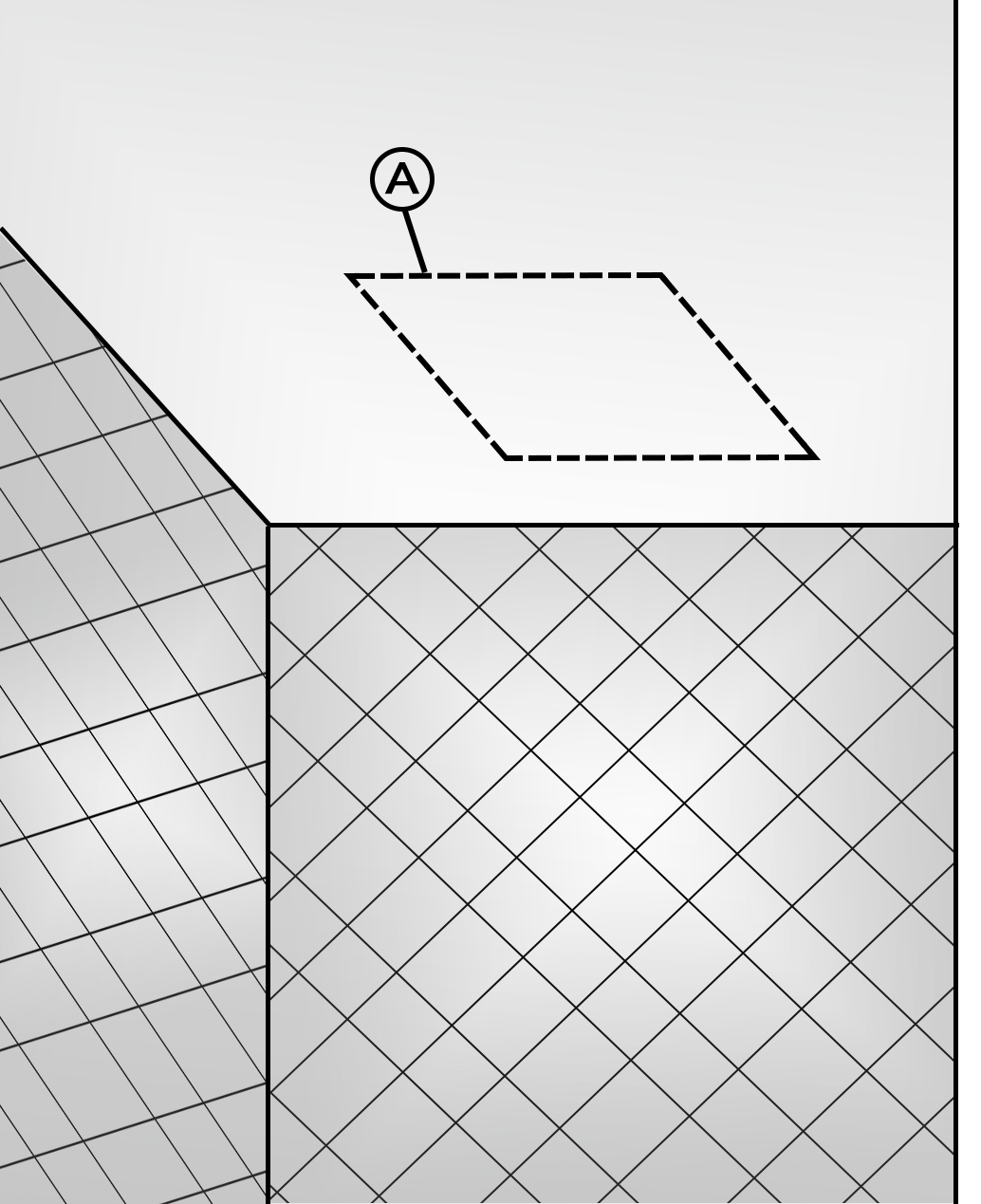

    Hole size on ceiling

    1. Drawing the line on the ceiling according to the above specification
    · Decorative Cover
    · pipe 1

    2. connect pipe 1 with decorative cover


BathSelect Smart LCD Screen 20" Large LED Shower Head With Hand-Shower

3.

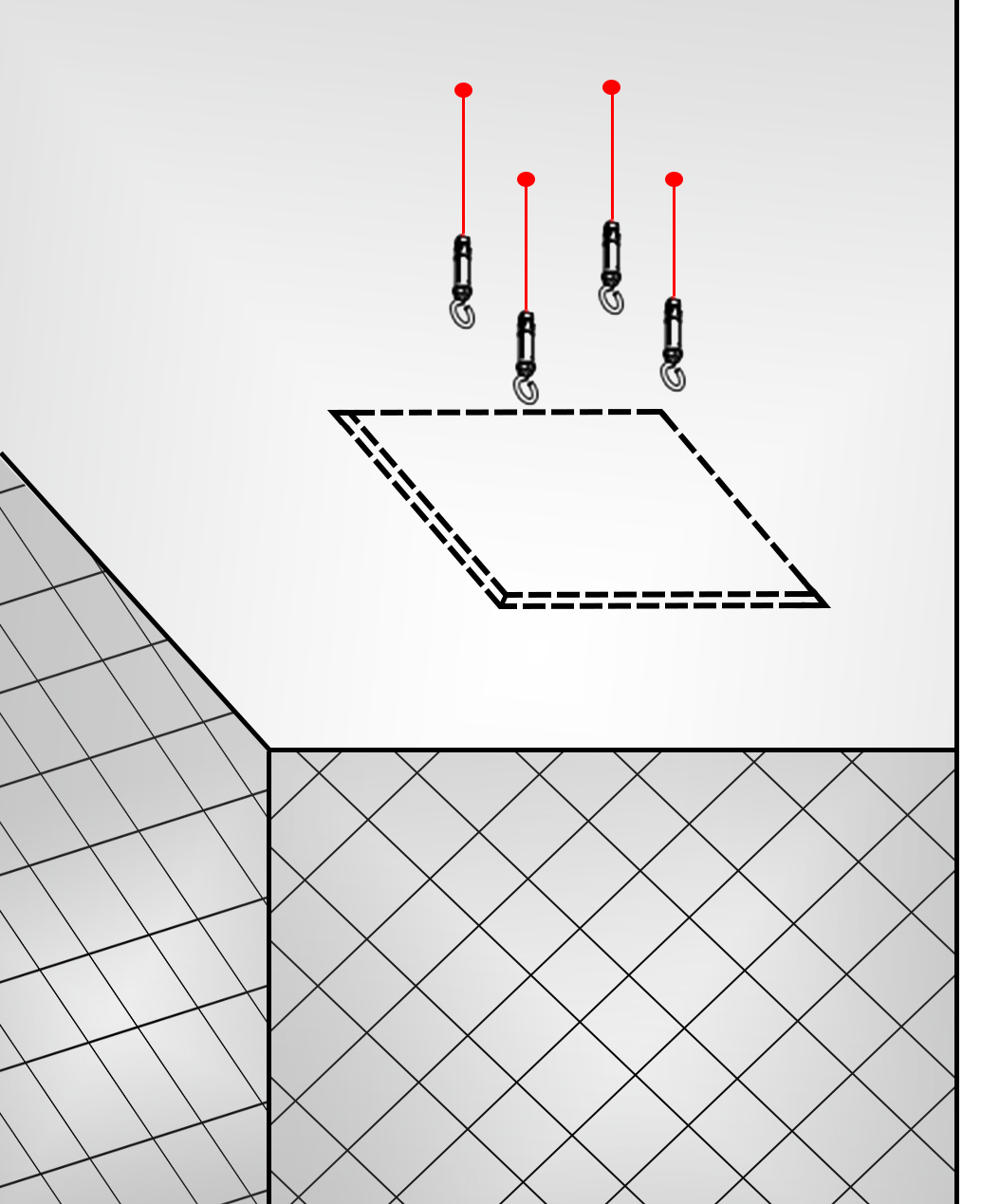

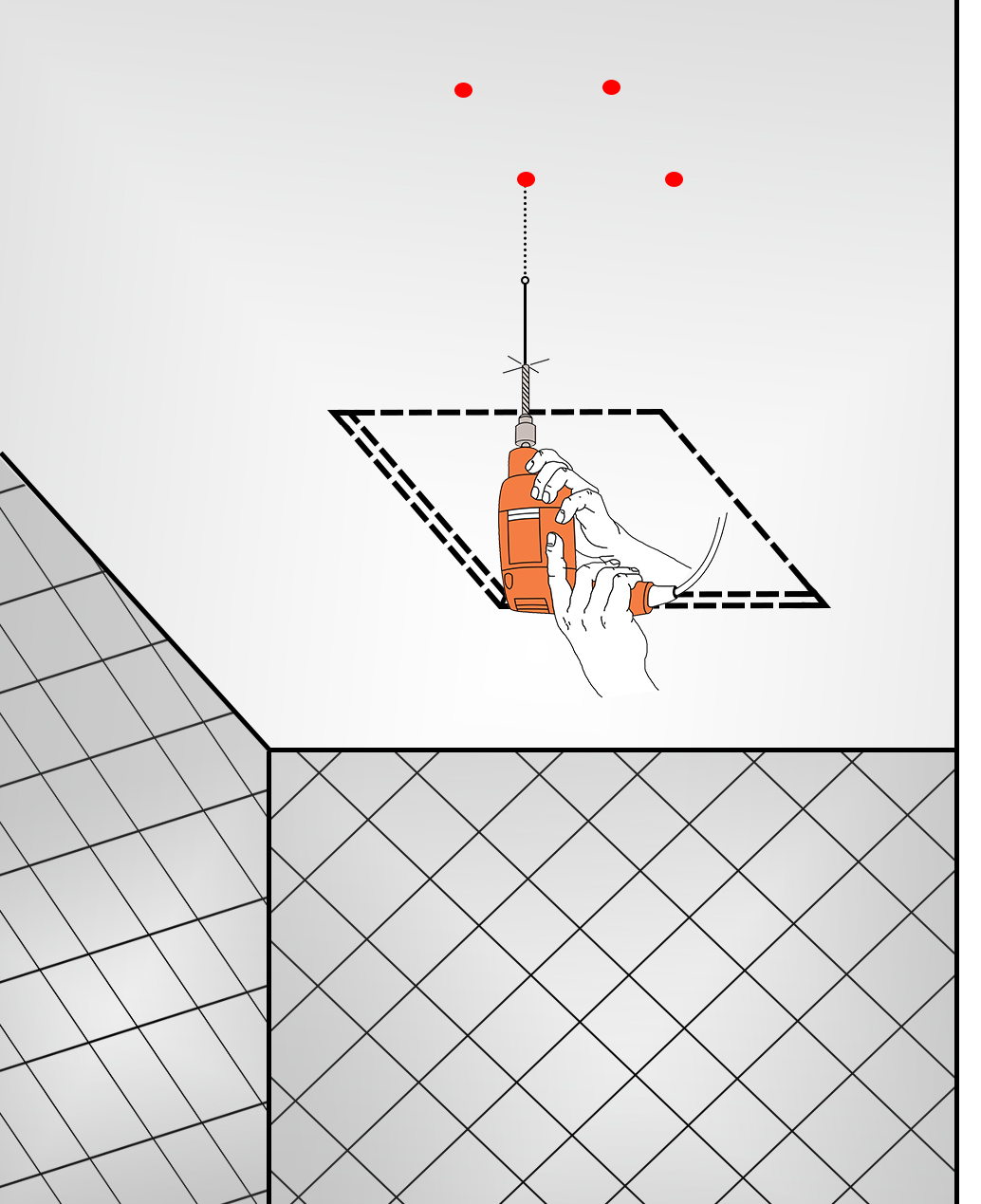

Drill the holes on the ceiling according to the above hole specification and install 4 pipes.

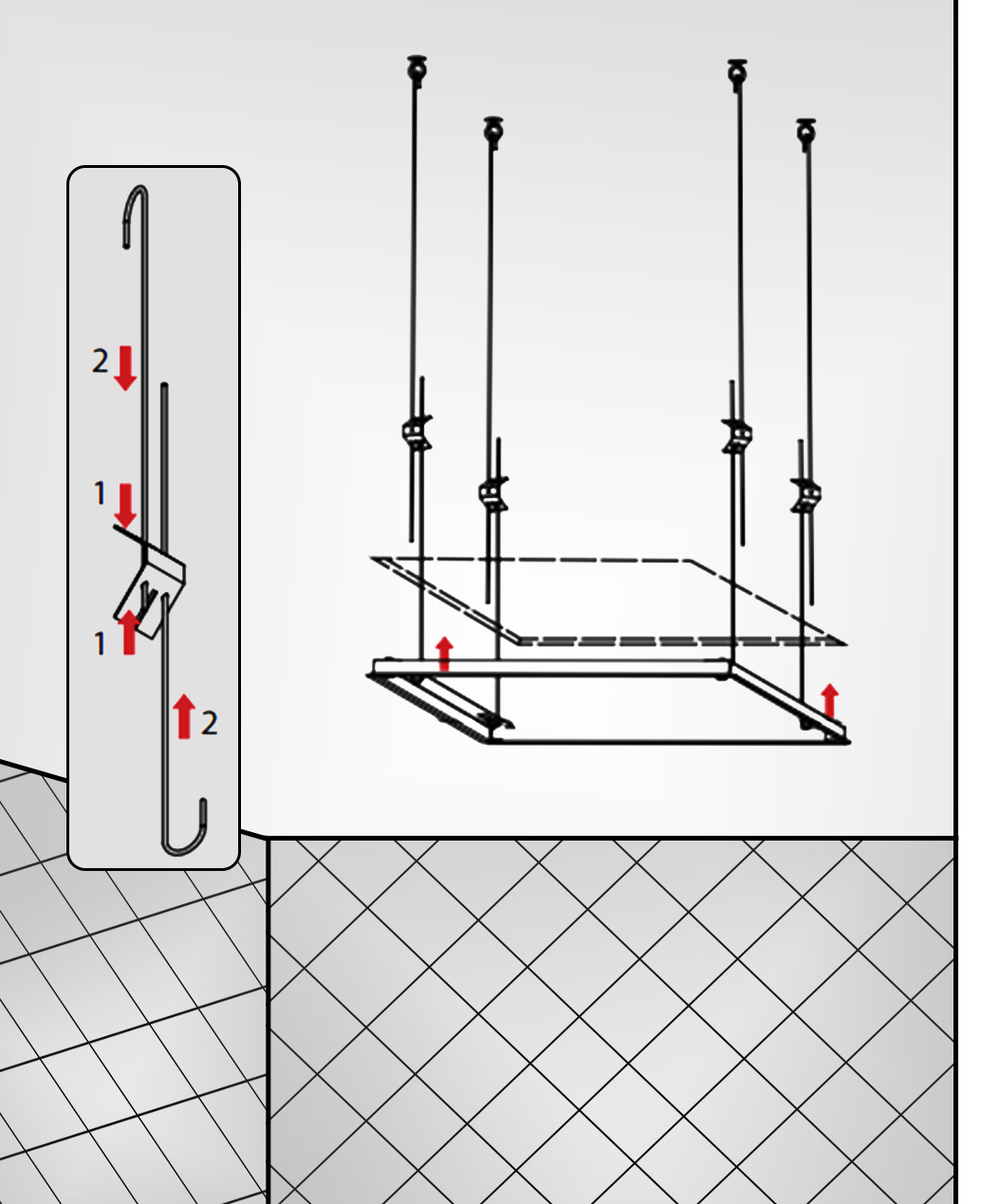

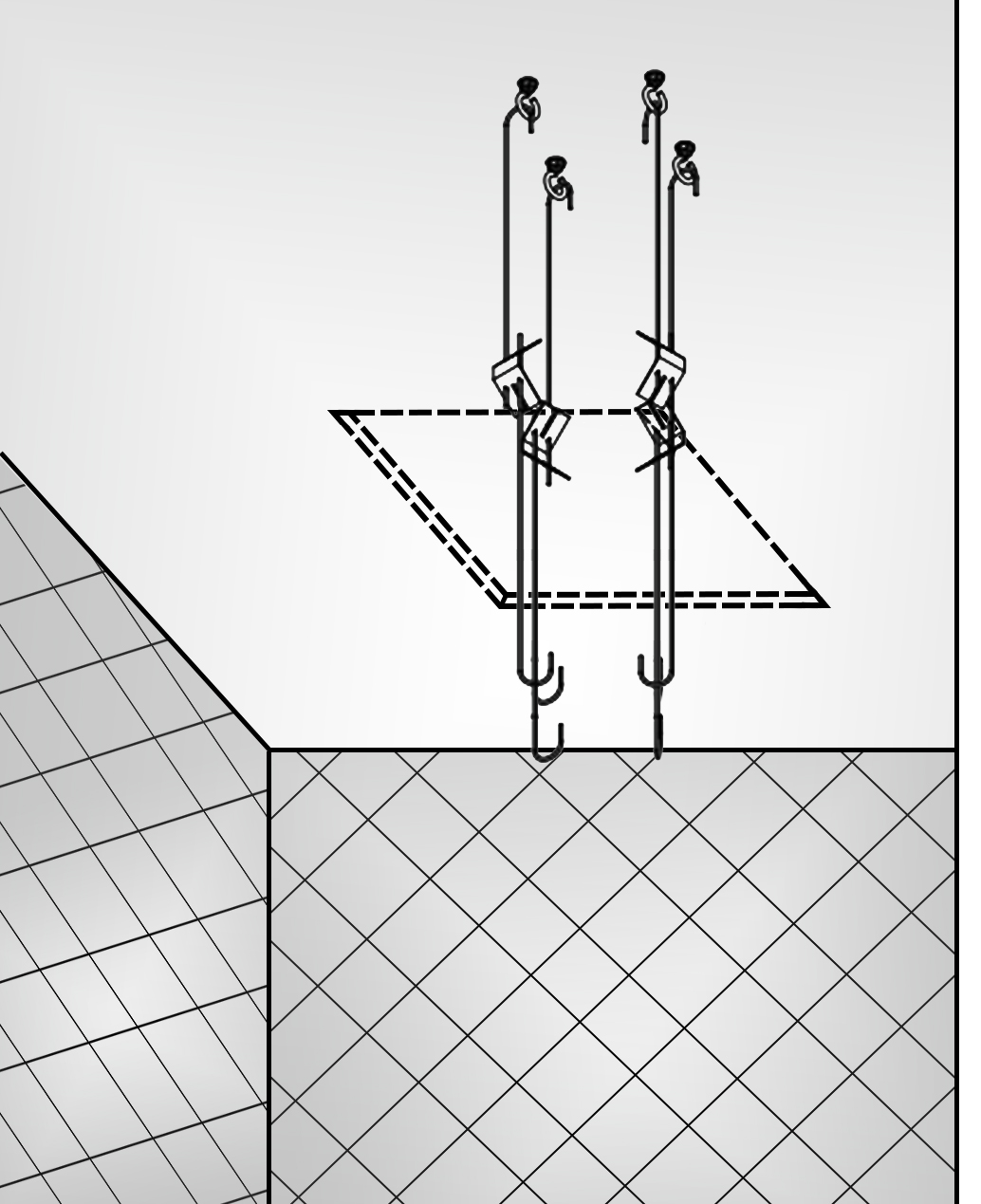

4. According to the right drawing, install four-pipe 2 into pipe 1. Put the screw bolts through the hole on the side to lock pipe 2 with pipe 1.


BathSelect Smart LCD Screen 20" Large LED Shower Head With Hand-Shower

5. As the right drawing is shown, install four-pipe 2 on the head shower.


6.

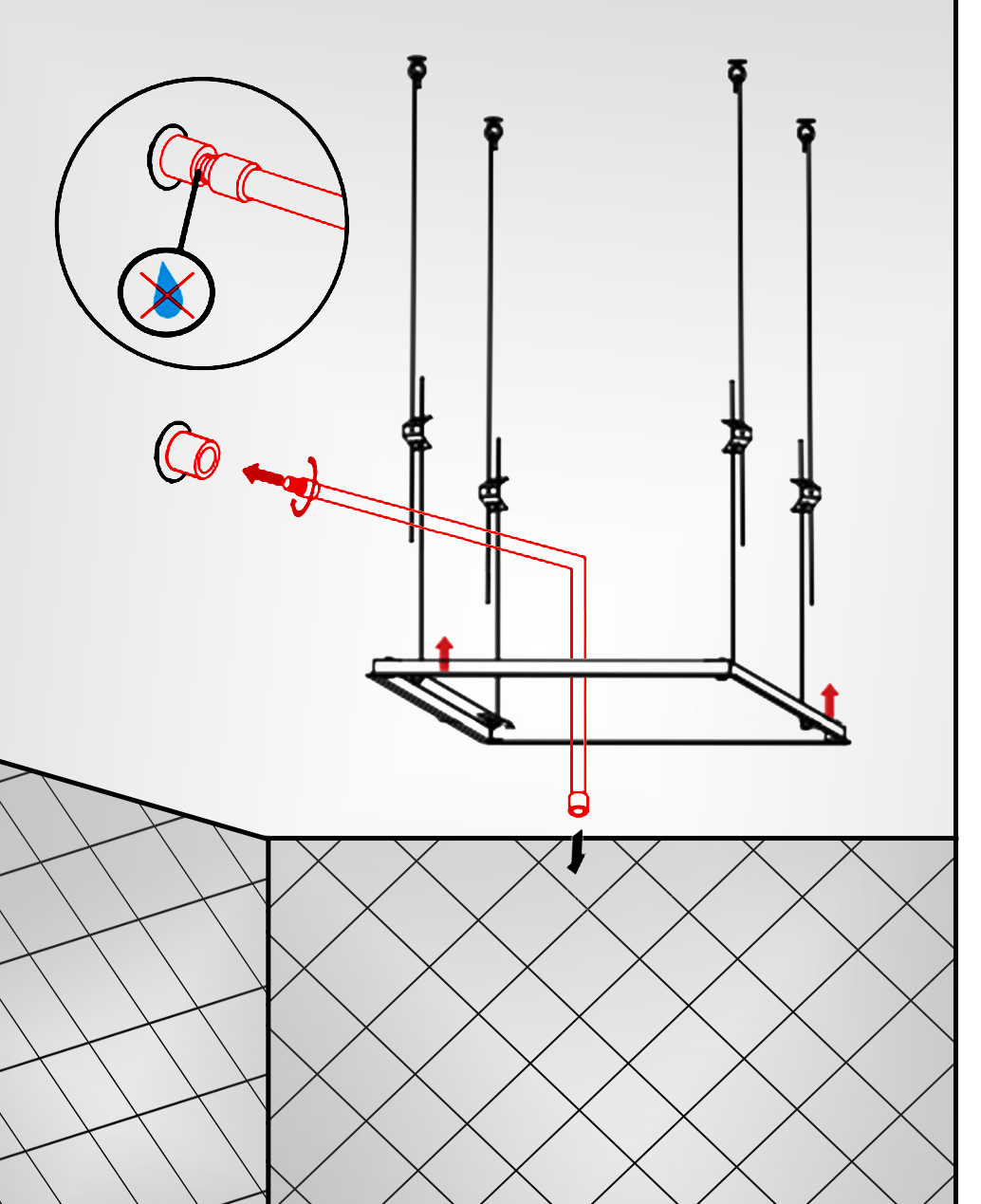

After fixing the showerhead on the ceiling, connect the shower hose with 2 water inlet on the showerhead back cover. The other end connects with the water outlet pipe in the wall


BathSelect Smart LCD Screen 20" Large LED Shower Head With Hand-Shower
Remarks: Ceiling mounted shower head come with fixing bar installation

1. Draw size on ceiling
2. Install fixing bar on ceiling

BathSelect Smart LCD Screen 20" Large LED Shower Head With Hand-Shower
3. Install fixing bar on shower head


BathSelect Smart LCD Screen 20" Large LED Shower Head With Hand-Shower

4. Put shower head bar on ceiling fixing bar.




BathSelect Smart LCD Screen 20" Large LED Shower Head With Hand-Shower

BathSelect Smart LCD Screen 20" Large LED Shower Head With Hand-Shower

BathSelect Smart LCD Screen 20" Large LED Shower Head With Hand-Shower

BathSelect Smart LCD Screen 20" Large LED Shower Head With Hand-Shower

BathSelect Smart LCD Screen 20" Large LED Shower Head With Hand-Shower

BathSelect Smart LCD Screen 20" Large LED Shower Head With Hand-Shower

The showerhead installation is now complete.


Hand-Held Shower Instructions

BathSelect Smart LCD Screen 20" Large LED Shower Head With Hand-Shower

BathSelect Smart LCD Screen 20" Large LED Shower Head With Hand-Shower BathSelect Smart LCD Screen 20" Large LED Shower Head With Hand-Shower BathSelect Smart LCD Screen 20" Large LED Shower Head With Hand-Shower
BathSelect Smart LCD Screen 20" Large LED Shower Head With Hand-Shower BathSelect Smart LCD Screen 20" Large LED Shower Head With Hand-Shower
