Installation Manual For Romo 22" Contemporary RGB Multi Color Shower Head












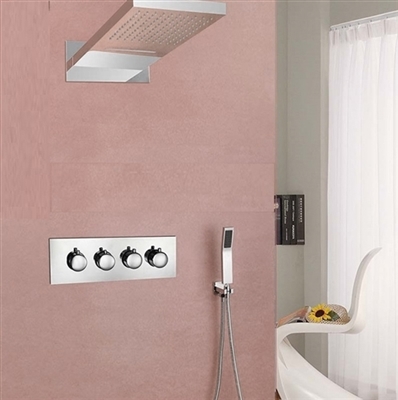

Romo 22" Contemporary RGB Multi Color Water Powered Led Shower Set


1. Open the top cover and drill according to the marked position.

  • Mark by the position of the four holes.
  • Take care to avoid wires and pipes to prevent damage.
  • Be sure to confirm that the four holes are on the same horizontal line.

2. Two inlet fittings are connected to the pipe joint of the wall; then the nut, expansion screw, and inlet pipe are connected.

Hand-Held Shower Instructions




5. HOLE LOCATIONS FOR WALL MOUNT

Remove Front Cover (5A) from Wall Mount (5B). Use Wall Mount Screw Holes (5C) to place the desired location. Using a punch or awl, tap the screw hole locations. Holes must be vertically aligned.


6. ANCHOR INSTALLATION

Drill two 1/4” dia. Holes (6A). If installing into a studs drill two 1/8” dia. holes and do not use Anchors (6B). Insert Anchors (6B) into Holes (6A) and tap flush with the wall.


7. WALL MOUNT INSTALLATION

Place Wall Mount (7A) into wall and inset Mounting Screws (7B) through Wall Mount Holes (7C) and tighten until Wall Mount (7A) is flush with the wall. Do Not Over Tighten! Insert Front Cover (7D) into Wall Mount (7A)


8. DROP ELBOW & HOSE INSTALLATION

Apply PTFE plumbers tape on both ends of Pipe Nipple (8A) (not included). Screw Pipe Nipple (8A) into the elbow inside the wall. The Pipe Nipple (8A) is to project 1/4” – 3/4” from the finished wall. Screw Drop Elbow (8B) onto Pipe Nipple (8A) and tighten until Drop Elbow (8B) is property positioned and flush to the finished wall.

Place Rubber Seal (8C) inside Hex Hose Fitting (8D). Connect Hex Hose Fitting (8D) into Drop Elbow Outlet (8E) by turning Hex Hose Fitting (8D).


9. UNIT STARTUP

Turn on hot and cold water supplies, and check all connections for leaks.


10. FINAL FLUSHING

For final flushing, turn the valve on and allow water to run through the Hose (10A) for several minutes. Allow water to run for several minutes until all foreign matter clears the line.


11. SHOWER ARM INSTALLATION

Place Rubber Seal (11A) inside Tapered Hose Fitting (11B). Conned Hand Shower (11C) to Hose (11D) by turning Tapered Hose Fitting (118) clockwise.


Mixer Installation


A.







Valve Control Installation

a. Release 4 handwheel levers according to the above directions.
b. Take apart the embed valve, panel, and handwheel.
1. Dig the embed space for the pipe on the wall according to the specification of the valve.
2. Dig 4 holes according to the position of the screws.
3. Use a hammer to thwack the screws into 4 holes.
4. Fix the valve body with 4 screws.
5. Find out the expansion screw heads with washer and spring washer. Use copper sleeve wrench to lock the screw heads with the embed valve body.
6. After connecting all the pipes and before sealing the wall with concrete, confirm no leaking problem occur when you turn on the water.
7. Fix the decorative panel on the embed valve body.
8. Screw the handwheel arms with the handwheels.
