Installation Instructions



According to the dimensions and shape of the mounting bracket, determine the bracket location to be installed in the ceiling.

Showerhead lists :
-> Showerhead
-> 11.8" shower hose
-> Tee joint
-> Expansion bolt
-> G1/2" filter net

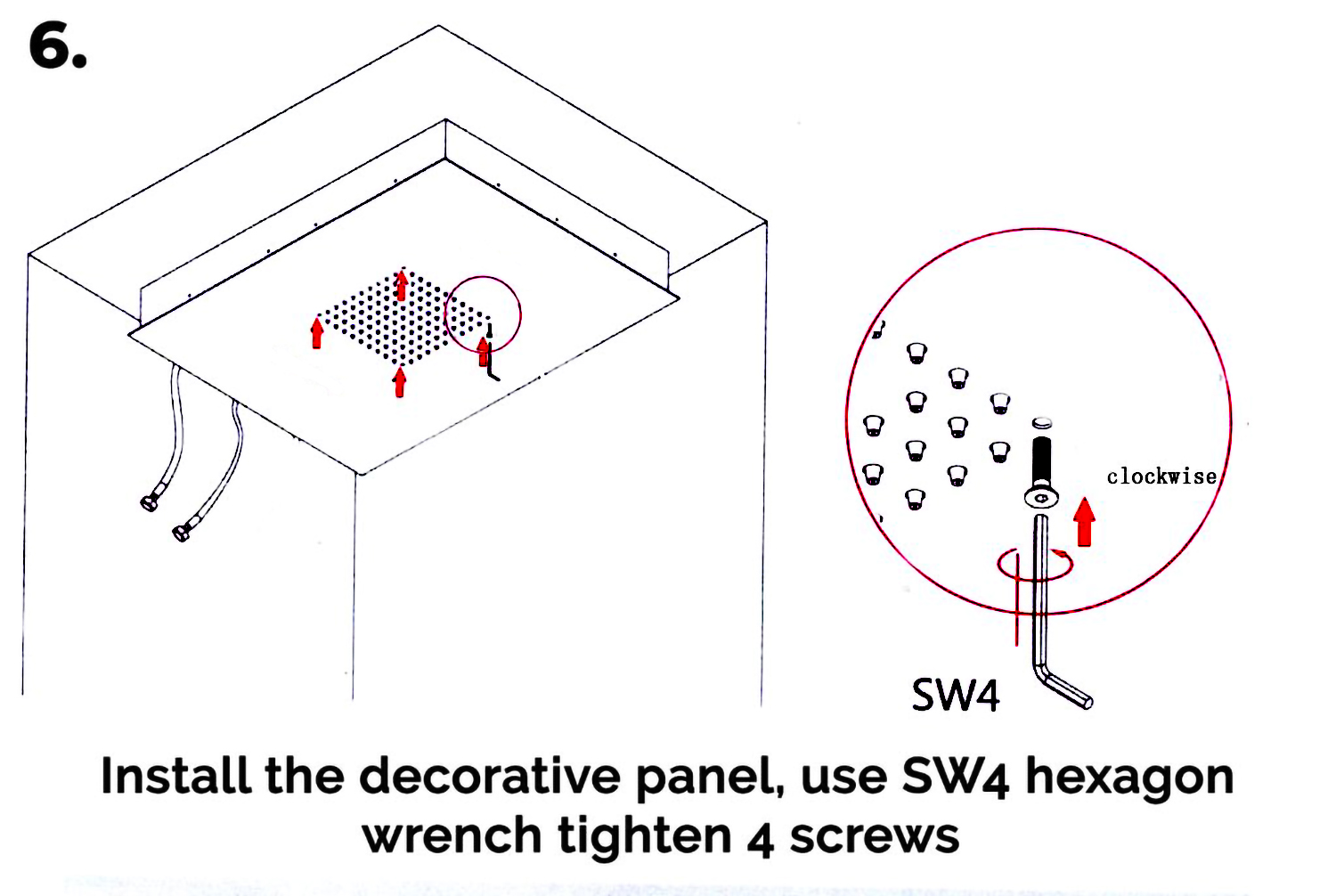

-> H4 inner hexagon.

Attention

1. Open packages, check all the goods whether everything is ok.

2. Check the size of the connector and the thread size of the water pipes connector in the wall.

3. Clean the water pipes before installing them.

4. At least 2 water electricians to install the showerhead.

5. Pay attention to the water temperature, not over 70 degrees.

6. Water pressure: 0.05 MPA - 0.5 MPA.

7. Adapter is 100-265 V to 12 V, insurance device rated current less than 30 MA.

According to the four mounting holes on the mounting bracket, use Electric drill play mounting holes.

a) Through the two hexagonal nuts adjust the distance between the mounting bracket and the ceiling, and keep the mounting bracket on the level.
b) Use explosion screw fixed mounting bracket on the ceiling, pay attention to the explosion screw can adjust the height, and use level adjust the mounting bracket to level.

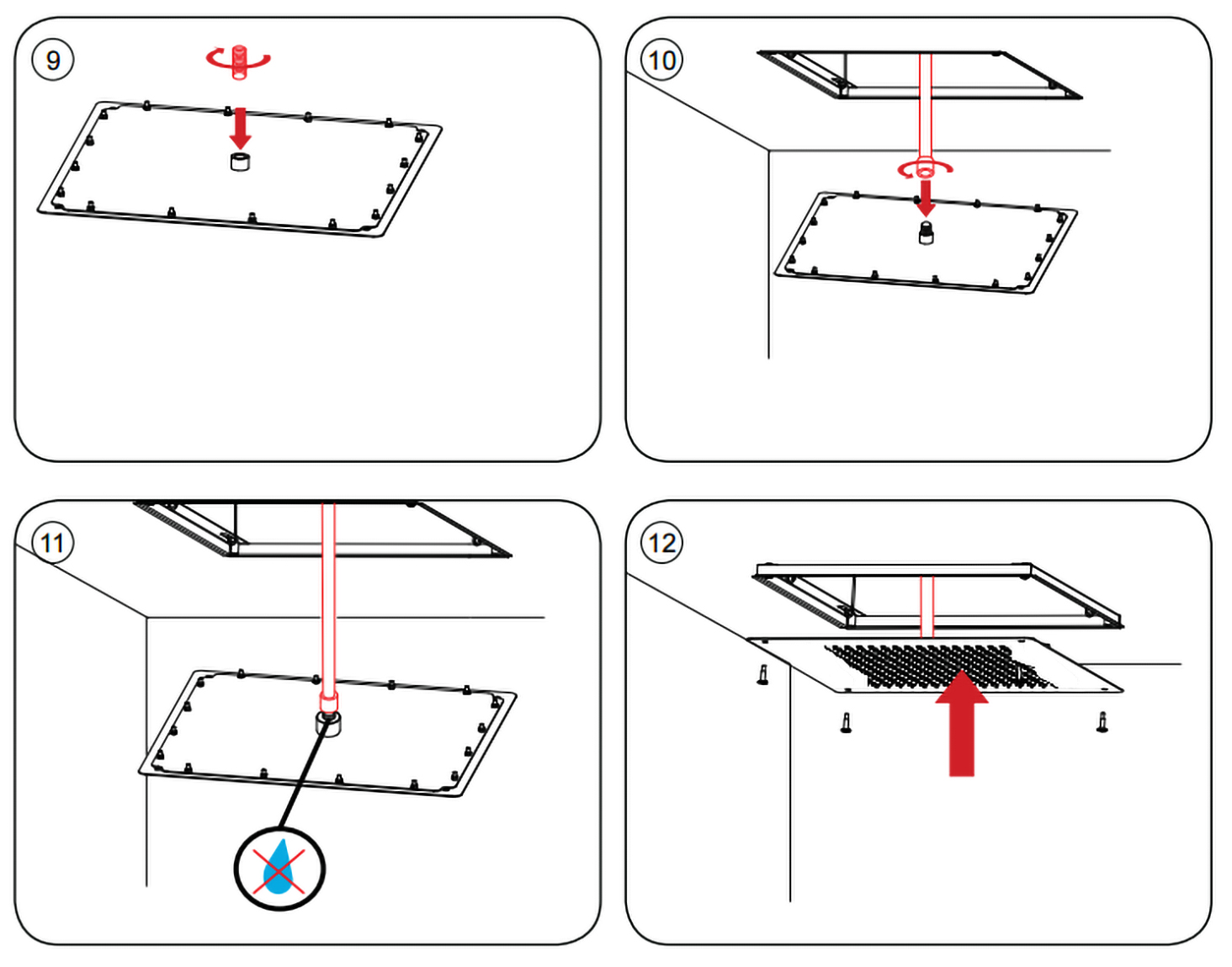

Connect 1 pcs water hose to 1 Tee Joints and G1/2, G1/2 joint in the middle, then put another side of the shower hose through the hole of shower head size.


Hand-Held Shower Instructions
