How to Install BathSelect Ceiling Mount LED Rainfall Shower Set With Thermostat Mixer Jet Spray And Handshower | BS-5674BN

BathSelect Shower Head With 4 Way Mixer, Body Massages Jets & Hand Shower

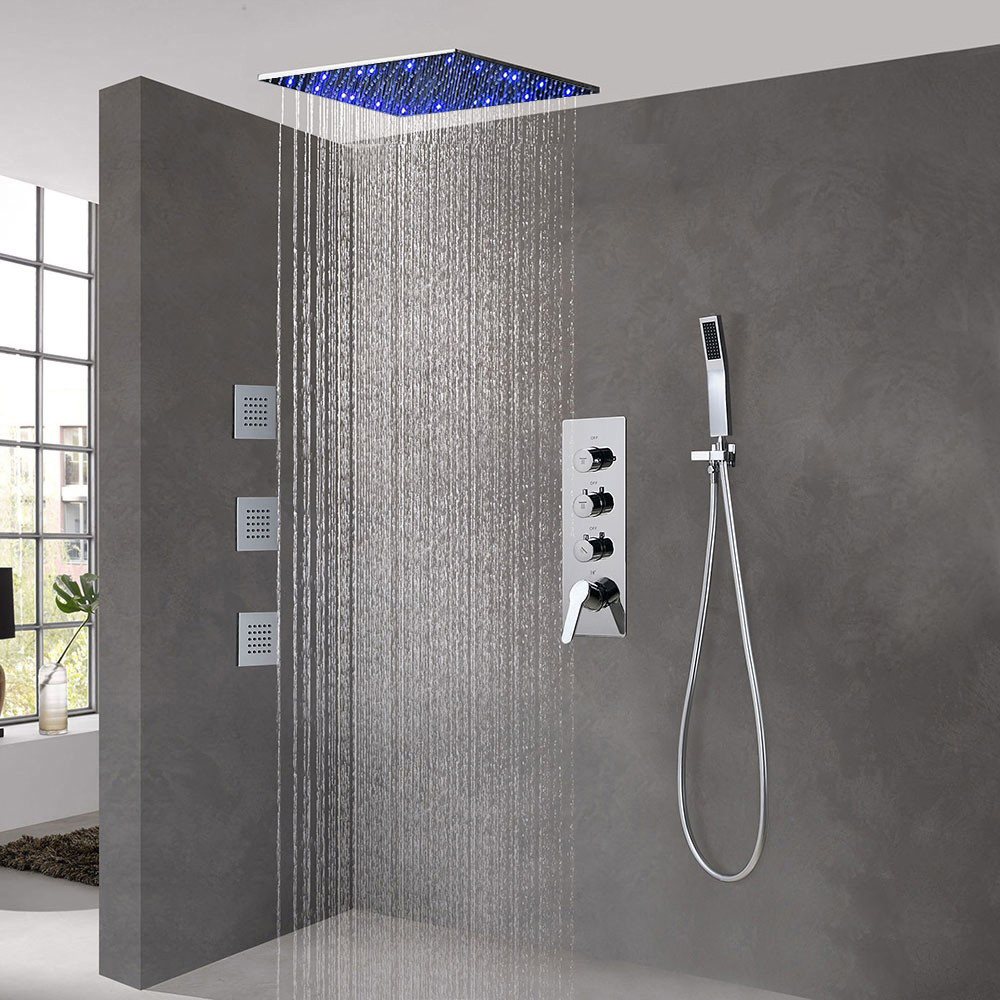

This Brushed Nickel Rainfall Shower Set is a ceiling mount shower with brushed nickel plated finish and comes with a handheld shower. When it comes to new bathroom upgrades, BathSelect is offering shape, finishes, and styles that you've been looking for. Give your bathroom an elegant glance with sink faucets and fixtures. This is one of the most trendiest finishes across decor styles in the bathroom. This has an elegant design and elevates the appeal of your decor made from the highest quality and for great tastes.



Features:

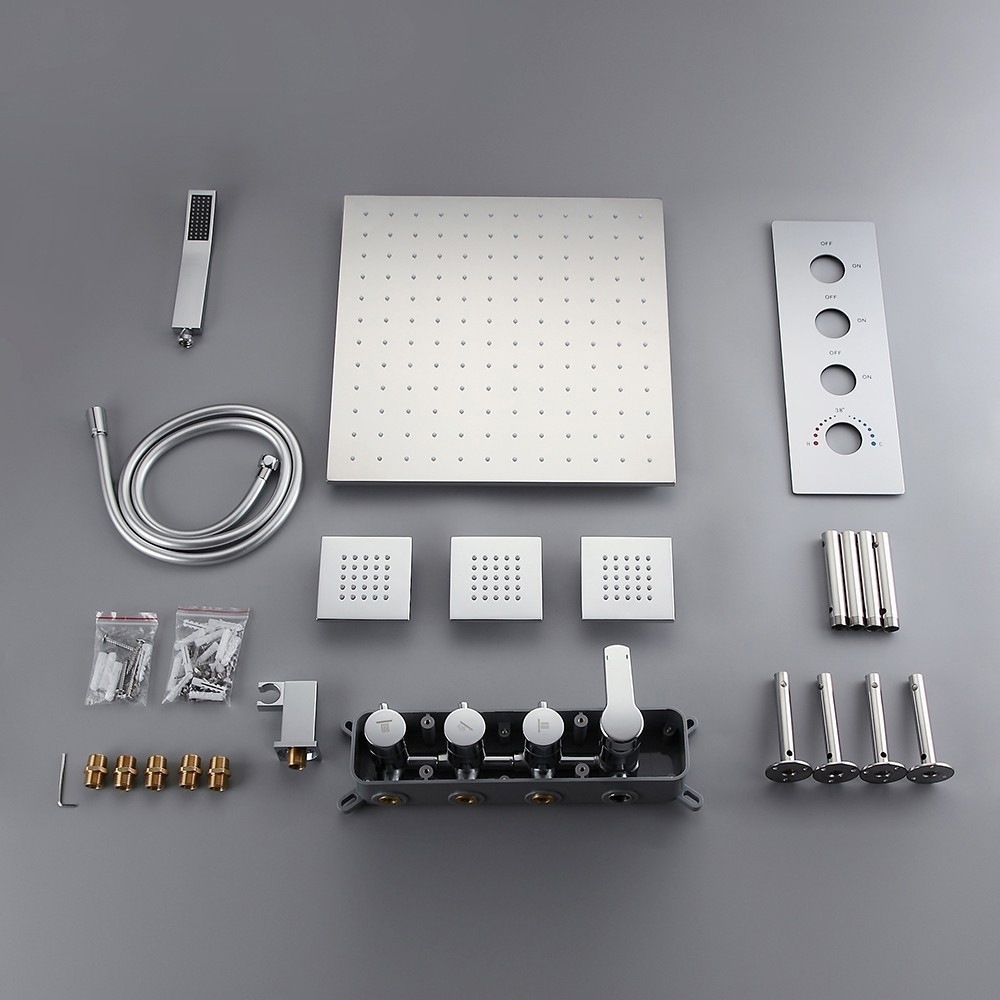

Model Number: BZ-5674N Type: LED Shower Set Valve Core Material: Ceramic Surface Treatment: Brushed Surface Finish: Brushed Nickel Shower Head Material: Brass Installation Type: Ceiling Mount Three Body Sprays Shower Head Function: Rainfall with Thermostatic Mixer with 4 knobs Simultaneous use of shower head and jet sprays, handshower Shower Arm Included : Yes	shower

Important Note:

Before you begin, please read the installation instructions below. Observe all local building and safety codes.

Unpack and inspect the product for any shipping damages. If you find damages, do not install.

Please note all showers must be installed by a professional and certified plumber otherwise warranty may be voided.

Flow rate:
Rain shower - 2.5 GPM / 9.5 LPM
Hand Shower - 2.0 GPM / 7.6 LPM
Each Body Spray - 1.5 GPM / 5.7 LPM



	shower

Step 1:		Step 2:

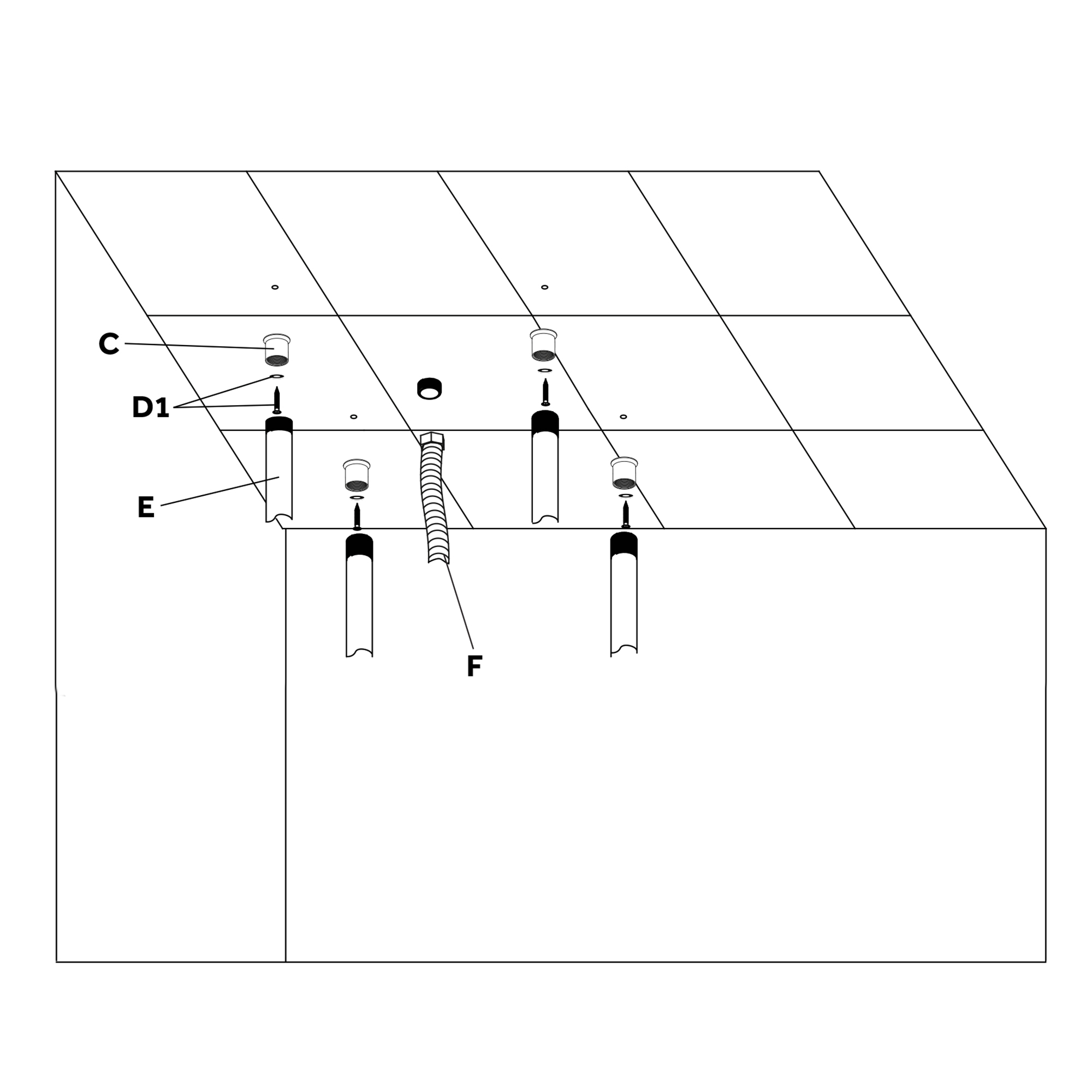

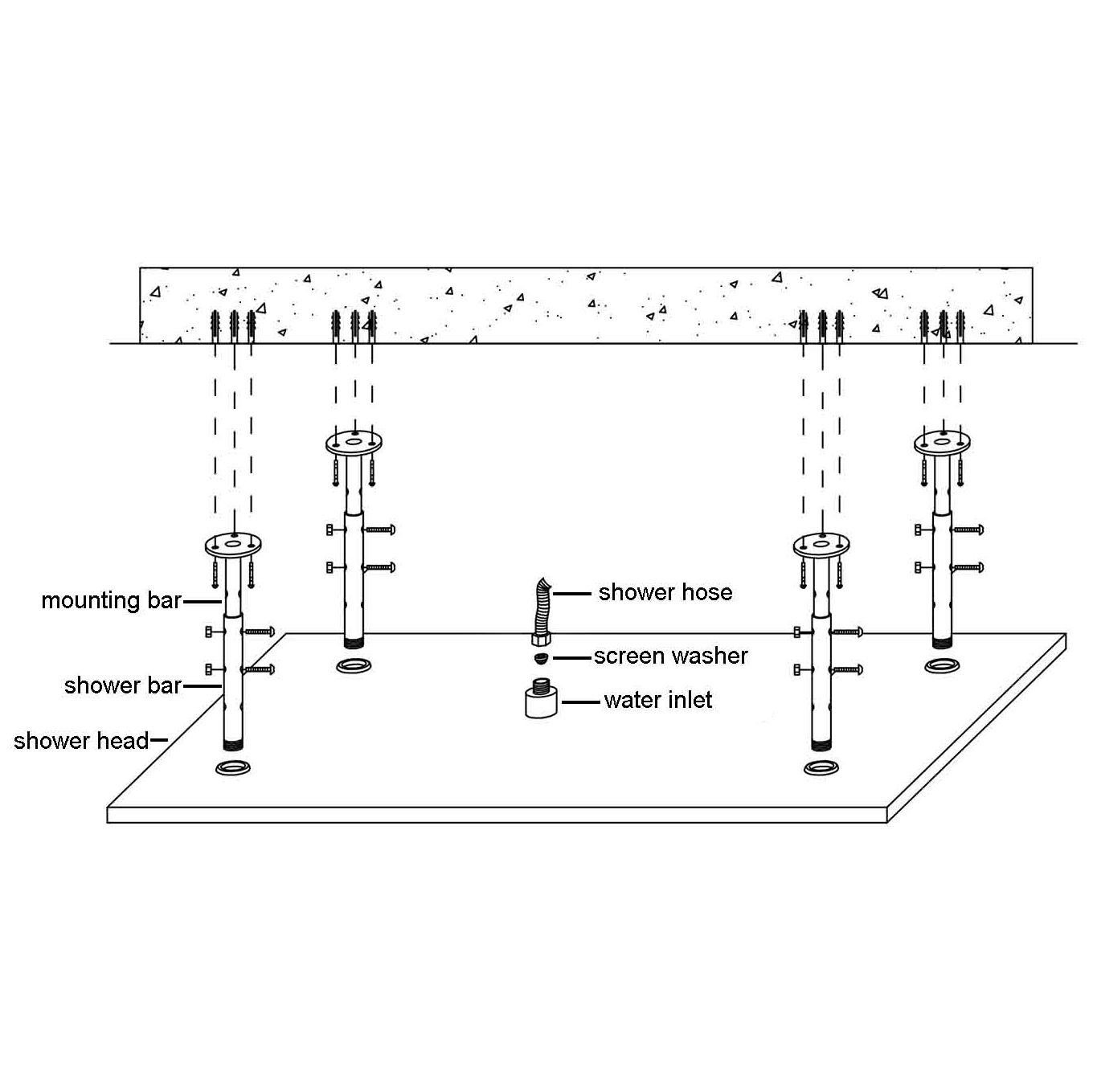

According to the template (B) mark the location of the mounting holes (1). Use a drill with a 6mm bit to drill mounting holes into studs or blocking.		Install the mounting brackets (C) with the tapping screws (D1). Thread the shower bars (E) onto the mounting brackets, and the inlet hose (F) onto the water inlet.

Step 3:		Step 4:

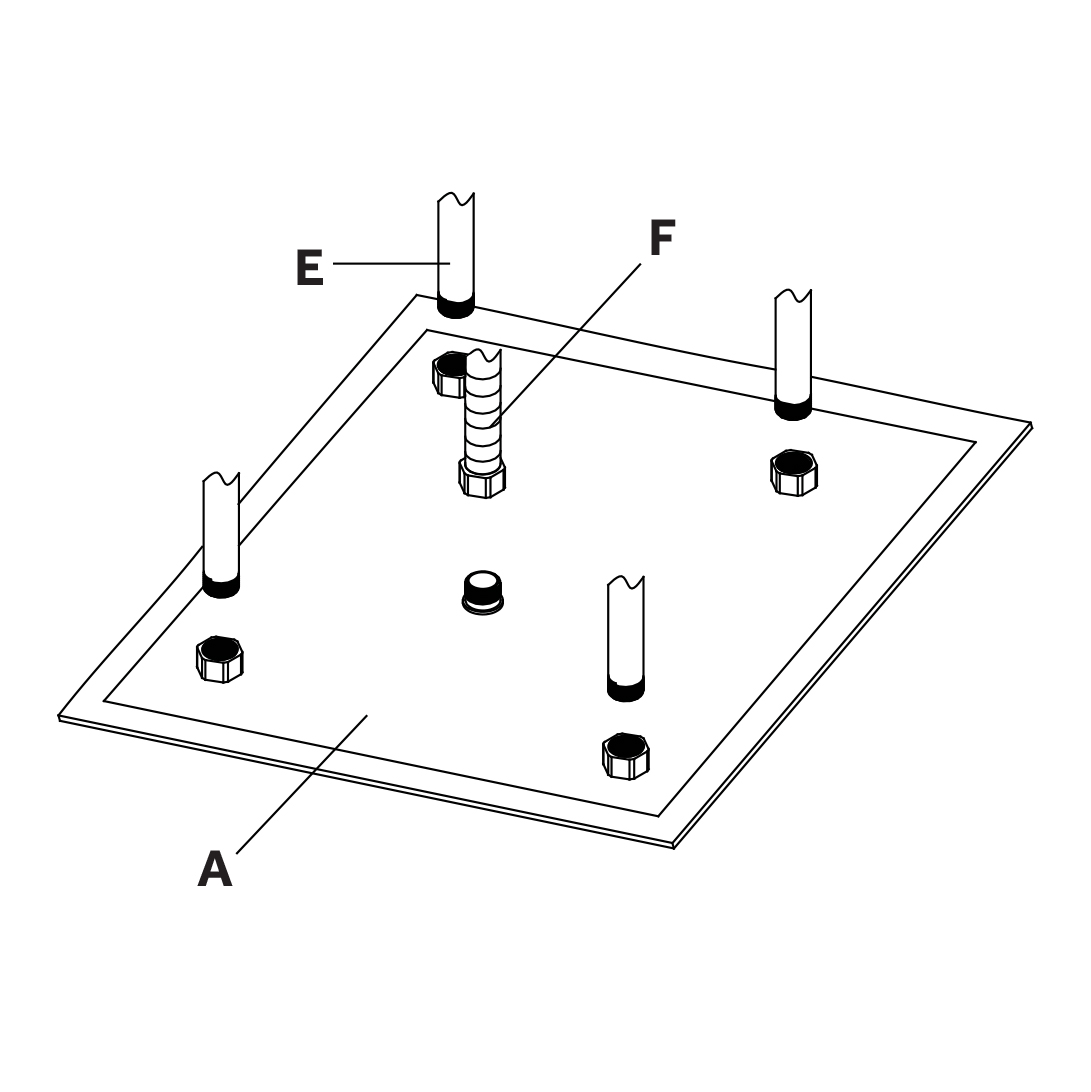

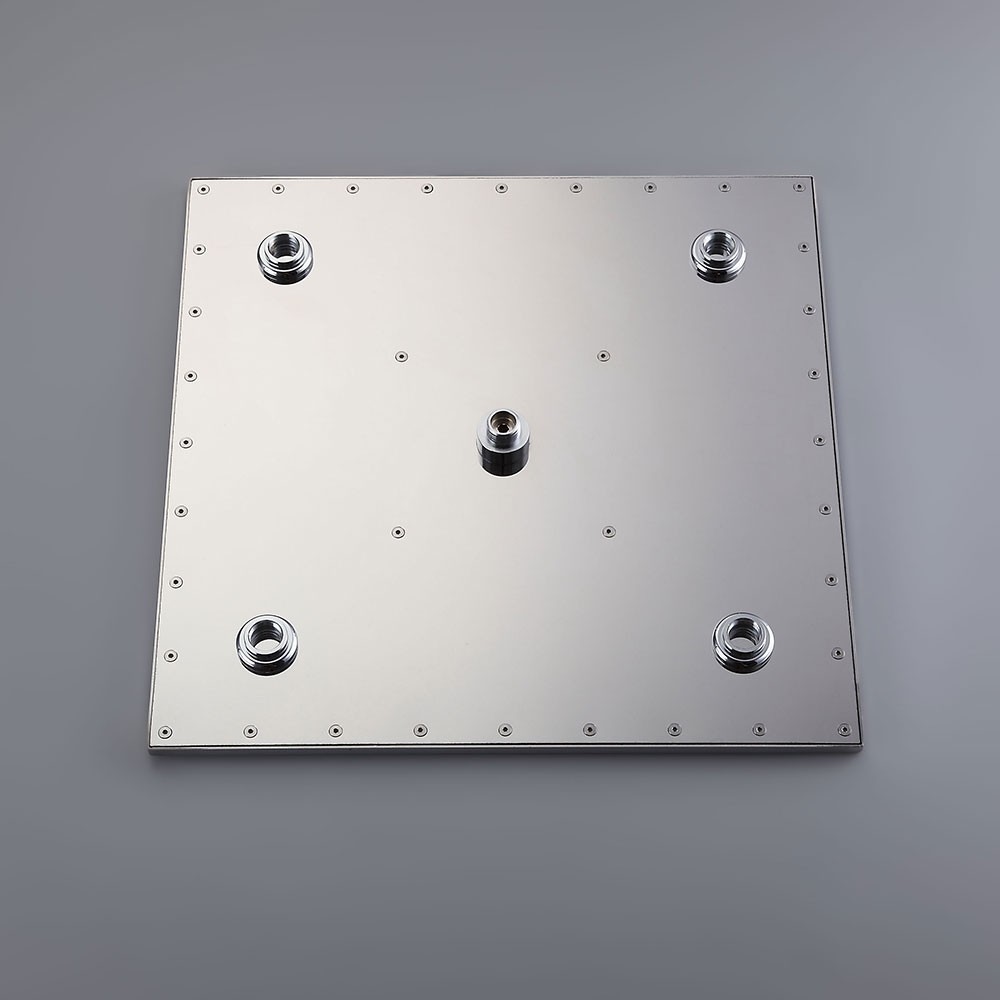

Attach the shower head (A) to the shower bars (E). Connect the inlet hose (F) to the showerhead.

Step 5:
