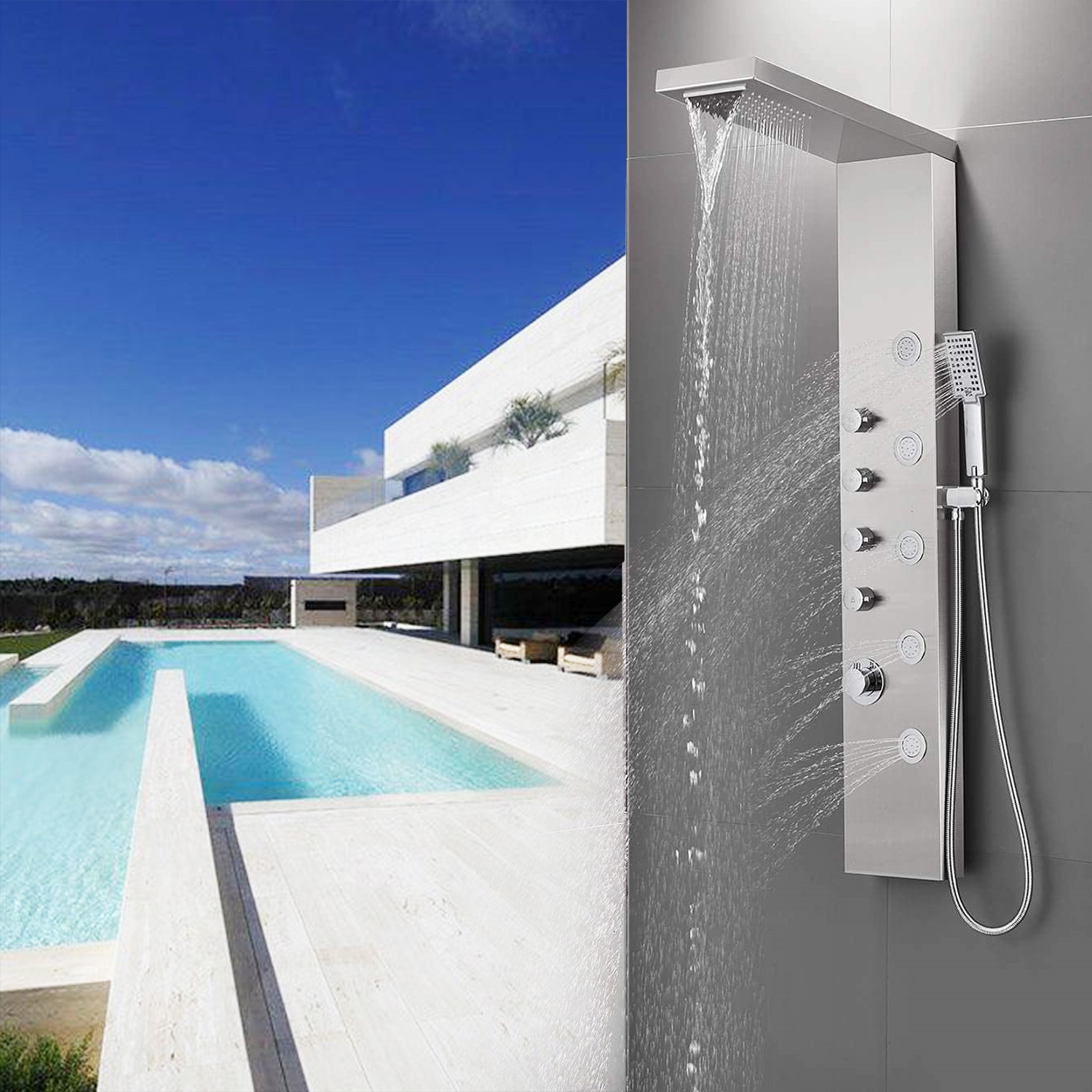

How to Install Marseille Shower Panel Tower, Rainfall Waterfall Shower Head, 5 Body Jets And 3-Function Handheld Shower, Rain Massage System, Wall-Mount Shower Column, Stainless Steel Brushed | BS10387


The 5 adjustable body spray massage jets, rain showerhead, hand shower and tub spout on the Shower Massage Panel have the power to transform your everyday shower into a luxury spa experience. Massage enjoyment, like raining -- clear and comfortable with dynamic waterfall flap on shoulder skin softly, let you enjoy comfortable massage. It has also 5 body jets with active side spray: 360 degree rotation of water, multi-directional shower. There are 5 shower knobs on the shower panel from top to bottom. Rotate the top 4 shower knobs anticlockwise to turn on showers; 4 showers can run separately or simultaneously; Rotate the bottom knob to control water temperature and volume. Its hand shower and tub spout is made of brass and chrome plated finish that will not rust. This shower panel will give you a spa shower experience at home. Immerse yourself in a truly relaxing shower experience and enjoy the modern style of this beautifully designed shower panel.

Features: shower Visit Product Page
  • Model Number: BS10387
  • Installation Method: Wall Mounted
  • Panel Material: SUS304 Stainless steel
  • Handle Material: Metal
  • Body Material: Stainless Steel
  • Finish: Brushed Nickel
  • Functions: Rainfall, Waterfall, Body Massage Jets, Hand Shower
  • Shower Head Size: 8"
  • Hose Length: 150cm
  • Product Dimension: 53 x 10.25 x 8.5 inches
  • Weight: 20.3 pounds
  • Number of Handles: 5
  • Laser Beam Color: Silver
  • Batteries Required?: No
  • Inclusion:
    Shower panel body*1;
    Shower panel holder and nuts *2;
    Shower panel connectors to wall*2;
    Hand shower*1;
    150CM hose for hand shower*1;
    Holder for hand shower*1.
Marseille Shower Panel Tower, Rainfall Waterfall Shower Head, 5 Body Jets And 3-Function Handheld Shower, Rain Massage System, Wall-Mount Shower Column, Stainless Steel Brushed


Important Note:
  • Before you begin, please read the installation instructions below. Observe all local building and safety codes.
  • Unpack and inspect the products for any shipping damages. If you find damages, do not install.
  • Please note all products must be installed by a professional and certified plumber otherwise warranty may be voided.
    		•

    Shower Panel Installation Instructions



    Step 1: Step 2:


    mirror
    Step 3: Step 4:
    Step 5: Step 6:

    IMPORTANT
    Before drilling any holes for the shower panel brackets, ensure there are no hidden cables or pipelines aligned with the desired drilling position.

    Drill the two holes for the top bracket 1” apart at the desired height.
    Drill the two holes for the bottom bracket 1” apart at approximately 45” below the top bracket.
    Insert the wall anchors into the pre-drilled holes as shown in Figure B.
    Place the shower panel brackets aligned with the drilled holes and using a Philips screw-driver tighten the screws to secure the brackets.

    Insert the shower wand holder through the pre-drilled hole on the shower panel.
    Install the water supply hose for the shower wand onto the holder, as shown.
    Make sure all O-rings are inserted to prevent leakage.
    Once the shower panel is fully installed and hung on the bracket, you can install the shower wand hose to the holder connection.
    Finally, install the hand shower to the hose.
    Screw the cold and hot water hose from the shower panel to the supply lines in the wall.
    Carefully hang the shower panel on the secured mounting brackets.
