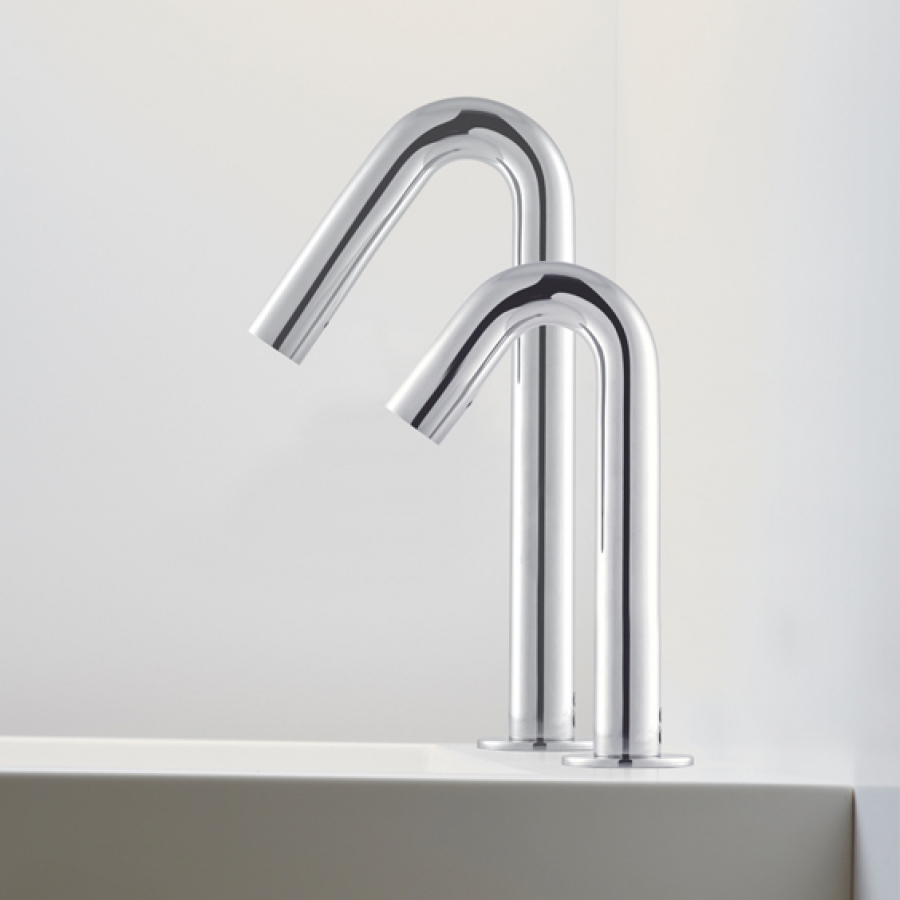

How to Install BathSelect Goose Neck Chrome Finish Dual Commercial Automatic Sensor Faucet And Soap Dispenser | BST9868D

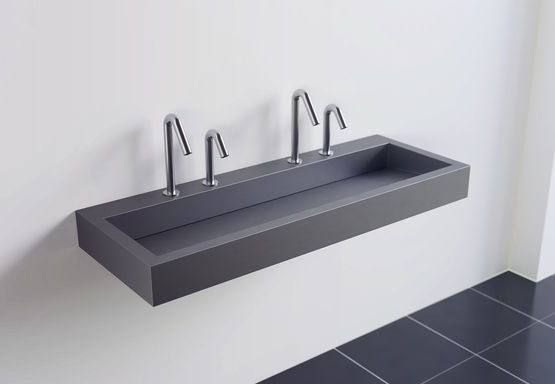

Our BathSelect goose neck dual automatic sensor faucet and soap dispenser is an elegant fixture that will seamlessly fit in any contemporary restroom. Its easy use technology definitely make your cleaning job easier.This cast brass electronic motion faucet is now available in dual function water and soap dispenser sensor faucet. This touch less motion sensor faucet reduces the transfer of germs by preventing cross-contamination and re-contamination of germs and bacteria by not touching the faucets or handles. Uses 4 AA Alkaline Batteries (purchase separately).Water Pressure: 0.5 - 7.0 KGS /cm, 10-125 psi. With its micro-computer controlling its action, the motion sensor faucet can self adjust its best detection zone as per the color and shape of lavatory.Sensor faucet with built-in Infrared AI smart-chip no water dripping design 100% touch-free operation. Ideal for commercial use applications in public restrooms, restaurants, office building, public facilities, hospitals. Fits all standard US plumbing.


Features:		Visit Product Page
Complete motion detection touch less operation Sensitive Sensor with Infrared AI Smart-Chip Automatic Soap Dispenser Factory set to 30-second Auto Shutoff (can be adjusted). Water Pressure: 0.5 - 7.0 KGS /cm , 10 - 125 psi Solid Brass Construction, Chrome Finish Easy to Install - Instructions Included Water resistant solenoid enclosure Advanced energy saving design for long lasting battery life Sensor faucet comes complete with Hoses & Accessories Power Supply: AC 110 V and DC 6 V (batteries not included) AC/DC power option. ADA Compliant. Easily can be installed in new or retrofit applications. Usage: Commercial / Residential	sensor

Important Note:

Before you begin, please read the installation instructions below. Observe all local building and safety codes.

Unpack and inspect the products for any shipping damages. If you find damages, do not install.

Please note all products must be installed by a professional and certified plumber otherwise warranty may be voided.

Sensor Faucet Installations Instructions



Parts:

Step 1: Deck Mount Installation		Step 2: Control Box & Battery Connection
	sensor

Step 3:		Step 4: (Correct way for Hose)

1. Screw the hose into the corresponding screw-hole of the faucet body. Fix the o-ring into the bottom groove of the faucet body. 2. Insert hose, threaded pipe and data cable through the drilled hole of the countertop. Put rubber washer and metal washer onto the threaded pipe, screwing in mounting nut. Adjust the faucet body correctly and tighten the mounting nut with screws. 3. Install the control box to the faucet. 4. Then connect the battery cable to the control box. 5. Make Connections to water supplies. Turn on the water supply and flush water lines into a container for one minute. Important: This flushes away any debris that could cause damage to internal parts. 6. Connect waterlines to angle stops. Turn on the angle stops and check for leaks (DO NOT TURN FAUCET ON). 7. Turn the faucet on for 1 minute to flush any debris.
Flexible Connecting Hose Care must be taken when connecting the flexible connection hose from the power supply box to the spout to ensure it does not bend sharply and kink or twist. See above for recommended ways to fit the flexible connecting hose. *Important:* Failure to follow these guidelines may result in poor performance and damage to the flexible connection hose.

Installation: Deck mounted

Power Supply Options:
∙ IP67 Dual power input box with a 9V battery (battery not included)
∙ IP67 Dual power input box with a 9V transformer

Operating pressure: 0.5 - 8.0 bar (7 - 116 PSI). With a pressure over 8 bar, use a pressure reducing valve.

Minimum Sensor Range: 30 mm / 1.18"
Maximum Sensor Range: 120 mm / 4.72"
Water supply: Cold or premixed water
Water-Saving options: 4 LPM / 1.0 GPM - PCA spray
Water temperature: 70°C Maximum
Security Time: Auto shutoff after 90 seconds

Functions:
1. Water saving: water flows out when hands get close and when your hand moves away, water stops immediately.
2. Hygienic: one open and close to hands-free from any contact, which can efficiently prevent mutual infection of bacteria
3. Intelligent: with your computer to control its action, the faucet can auto-adjust its best detection zone as per color and the shape of the sink
4. Low power consumption: for DC agitators, 4AA alkaline batteries can be used for 2 years.
5. convenient to maintain: there is an internal filter to prevent the entry of the solenoid valve of miscellaneous and the filter is easy to clean.

Automatic Soap Dispenser Installation Instructions

Size:


Step 1:	sensor	Step 2:


Step 3:		Step 4:


Step 5:		Step 6:


Step 7:

Features:

More Hygienic
The proximity sensor removes the need to touch the spout, reducing the spread of germs and reducing the chance of cross-infection.

Battery Override
Your infrared soap dispenser is supplied with a backup battery pack. In the event of a power failure, the product will automatically switch to battery-operated mode to ensure the spout continues to function.

Low Battery Warning
When the batteries run low and the power falls below 3.9V the sensor light will flicker to indicate the batteries are running low and need replacing.
When the batteries are exhausted the sensor light will not light up.

Installation

1. Fit The Spout
Fit the spout to the sink/basin ensuring the dispensing cable and sensor cable are threaded through the hole in the sink/basin.

2. Secure Spout to Sink / Basin
Screw the metal back nut onto the thread of the spout upto the underside of the sink/basin.
Tighten backnut using a suitable spanner.

3. Fit Wall Brackets
Position the brackets onto the wall surface and mark the position of the fixing holes.
Remove the brackets and drill suitable holes for the wall plugs supplied.
Before drilling into walls, check that there are no hidden electrical wires, cables or water supply pipes. This can be checked with the aid of an electrical detector:

If power tools are used do not forget to:
- Wear eye protection
- Unplug equipment after use
Fit the wall plugs and position the brackets into position and secure using the screws provided.

4. Attach Pump to Bottle
Ensure the dispenser tube is located inside the bottle and push the pump down firmly onto the bottle until a loud ‘click’ is heard.
To remove the pump from the bottle press the release button in on the side of the pump and pull the pump from the bottle.

5. Connect Sensor Cable and Dispenser Cable
Connect the sensor cable from the spout to the sensor cable on the pump. Push the two connections together and tighten the connecting ring to ensure the two connections are locked together.
Connect the dispensing cable from the spout into the top connection on the pump.
Push the threaded connection of the dispensing cable into the connection on the pump and tighten the nut ensuring it is fully tightened.
A suitable spanner may be used to tighten the nut.

6. Place Pump into Bracket
The pump has a cut-out section which the wall bracket slots into.

7. Connect Power Supply Cable
Before starting any electrical work ensure the power supply is isolated.
Wire the electrical power cable into a switched fused spur off the ring main.

Important: The power lead must be permanently connected to the fixed wiring of the mains supply using the factory supplied power cable.
Plug the power cable into the power cable on the pump.

8. Inserting Batteries
Remove the battery cover by loosening the screw in the top of the cover.
Insert 4 batteries into the battery box ensuring they are inserted the correct way.

Replace the battery box cover and tighten the screw. Insert the battery box into the holder.
Push the holder into the battery box wall bracket.

Commissioning

Commissioning Sequence
Before using the soap dispenser for the first time the following sequence must be carried out.
Fill the bottle full of liquid soap.
Locate the dispense button on the side of the pump. Press and hold the button until soap is dispensed from the spout. This will ensure the dispenser tube and cable are full of liquid soap.

Selecting Volume Adjustment
The soap dispenser has four dispense volume adjustment settings. Each adjustment setting dispenses a different volume of liquid soap.

To adjust the volume of soap dispensed follow the steps below.
Locate the volume adjustment switches under the rubber cover.
Set the switches to the required position for the desired volume adjustment setting.
Refer to the switch position diagrams.

Operation

Using the Automatic Soap Dispenser
Place the users hands under the spout within the sensing range.

Once the users hands have been detected a small amout of liquid soap will be dispensed from the spout into the users hands.

CARE AND MAINTENANCE - General Instructions

1. Fill the soap bottle with liquid soap for the first use. 2. Press and hold the button until liquid soap is dispensed from the nozzle. 3. Place hand below the nozzle to dispense liquid soap into the palm of hand. The soap dispensers have 4 settings to adjust dispense of soap, the first gear being the least volume and the fourth being maximum. Factory default is set at second gear. CARE AND MAINTENANCE If the soap dispenser fails to function correctly, firstly check all connections are tight and free from air leaks. If dispenser still fails to function, place manifold into a bottle of warm water. Pump the warm water through the dispenser to dislodge any dried soap residue and then refit manifold into soap bottle. Water marks and soap residue on polished chrome surfaces are best cleaned using warm water and a mild detergent. Use a stainless steel cleaner for brushed stainless steel soap dispensers. Never use an abrasive cloth to remove stubborn stains. Dry with a soft clean cloth.
• ALWAYS mount the soap tank feeding the dispenser/s BELOW the level of the dispensers • NEVER mount the soap tank feeding the dispenser/s ABOVE the level of the dispensers Also please note: The soap type and brand used in these dispensers should not be altered throughout the life of the dispenser as mixing soaps can affect their chemical characteristics and cause them to become more aggressive. If another soap type or brand is needing to be used then the previous type must be thoroughly flushed through and cleaned from the soap dispensers and system prior to its use.
