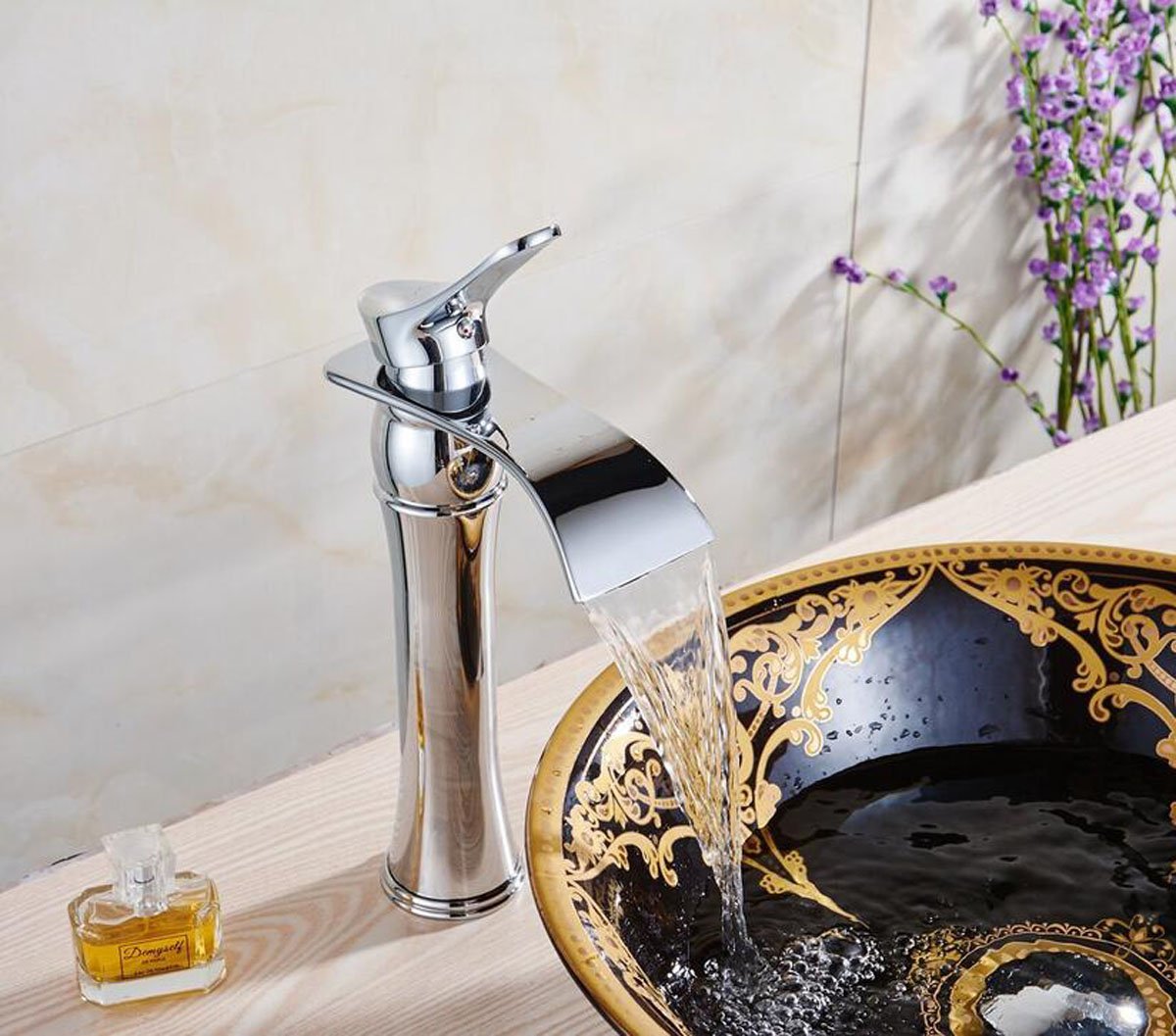

Installation Instructions for Burgos Single Handle Bathroom Sink Faucet With Drain | BS177CRO
Single Handle Deck Mount Faucet

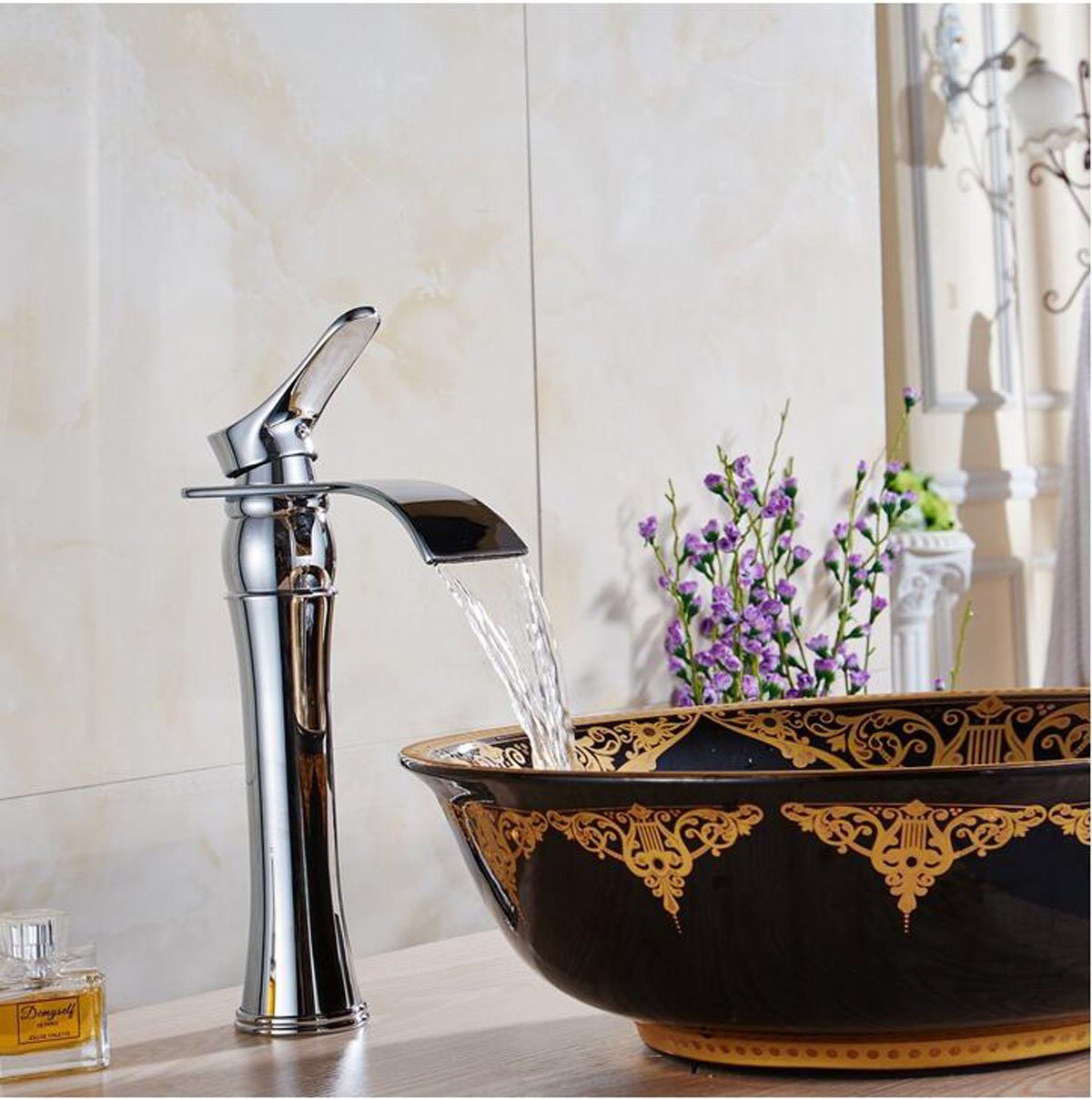

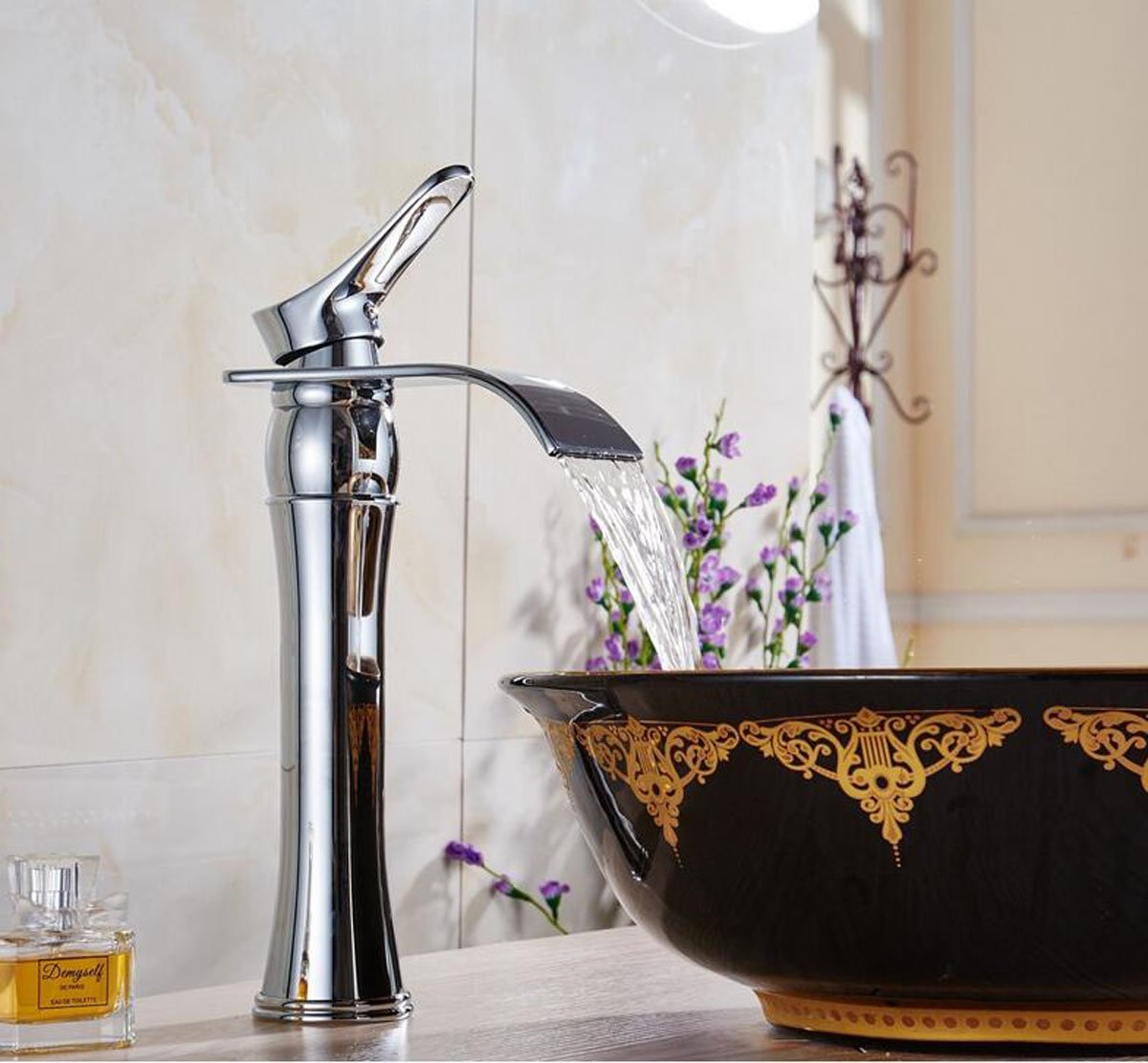

| Functional And Creative Faucet...Our Burgos bathroom sink faucet has been designed to proudly stand in any modern bathroom. The bright chrome finish helps it fit a large variety of styles, whether opulent or minimalist. The spout reaches a 9.8” height, so it can easily match a bowl sink too. The handle is beautifully curved shaped, placed on top for ease of use. It comes with a built-in hot and cold water mixer and it is deck mount, single hole. The delivery includes a matching pop-up drain. Only the best materials have been used: the body is made of solid brass and the valve cartridge is ceramic, for a long-lasting lifetime. It comes complete with accessories and installation instructions. | |  | | |
|
| | | | Features: | faucet | | - Type : One Handle Bathroom Vessel Faucet
- Mounting : Deck-mount/Single Hole
- Hole Diameter : 3.3cm-4.5cm (1.29"-1.77")
- Finish : Chrome
- Main Body Material : Brass
- Handle Material : Zinc Alloy
- Valve : Reliable Ceramic Cartridge

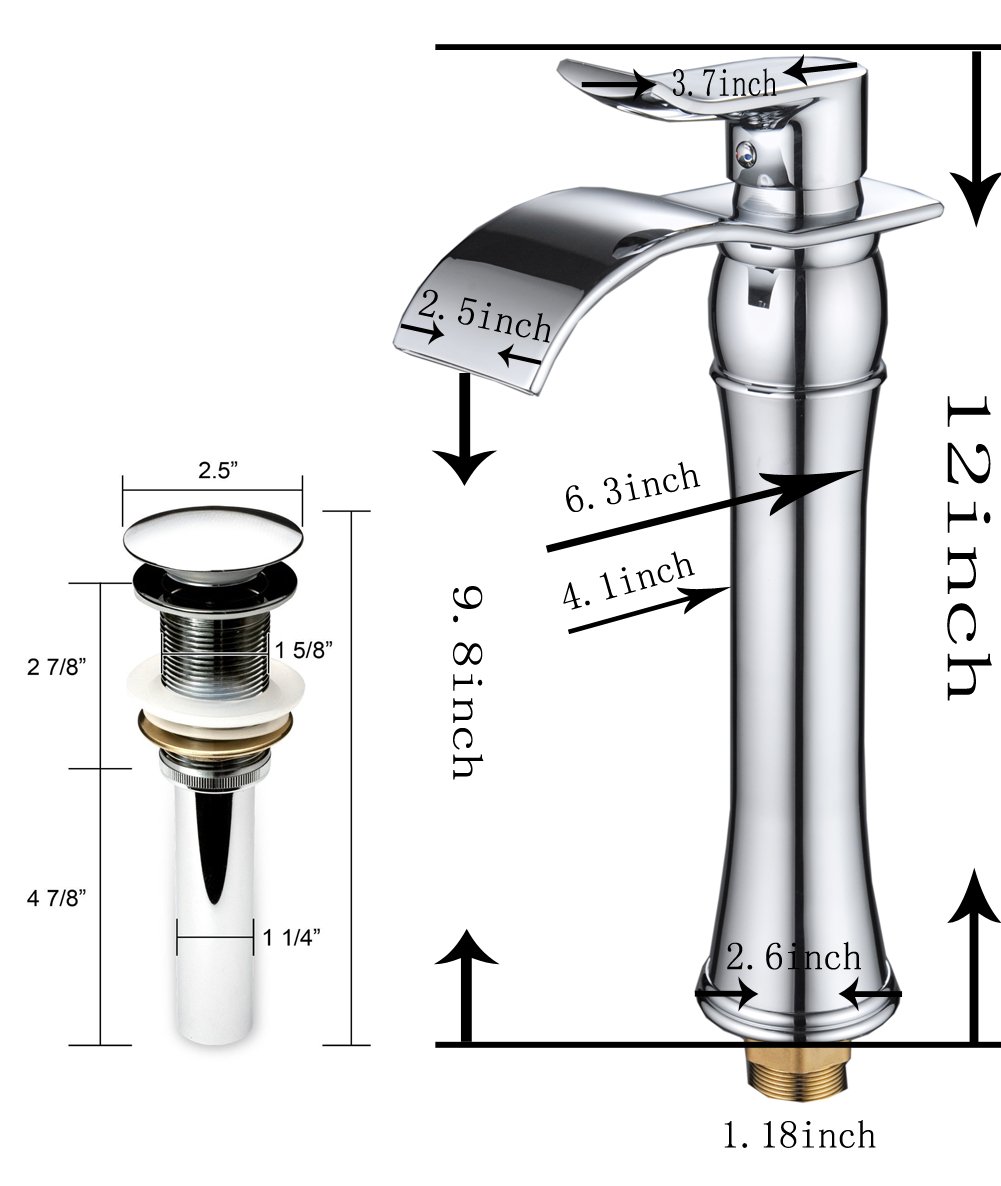

- Product Dimensions : 16.1 x 8.8 x 3.5 inches
- Item Weight : 5 pounds
- Spout Reach : 4.1 inch
- Spout Height : 9.8 inch
- Overall Height : 12 inch

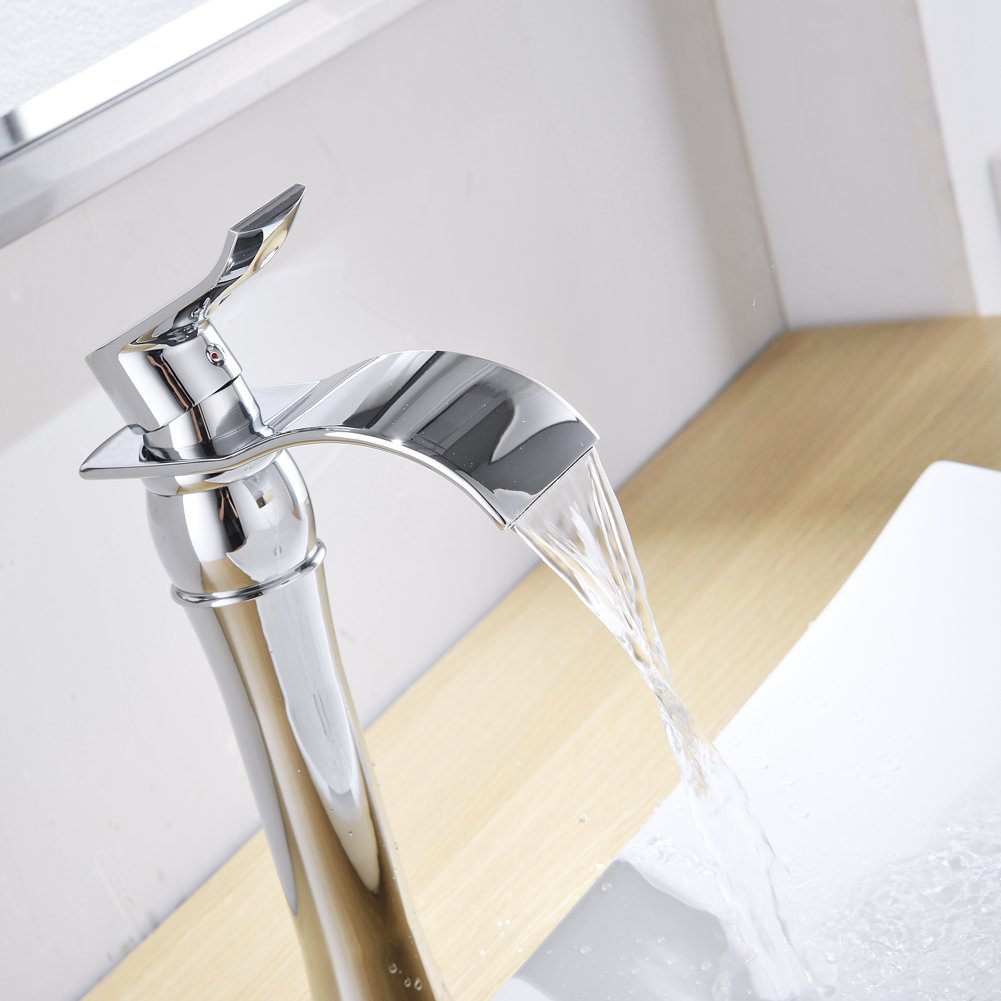

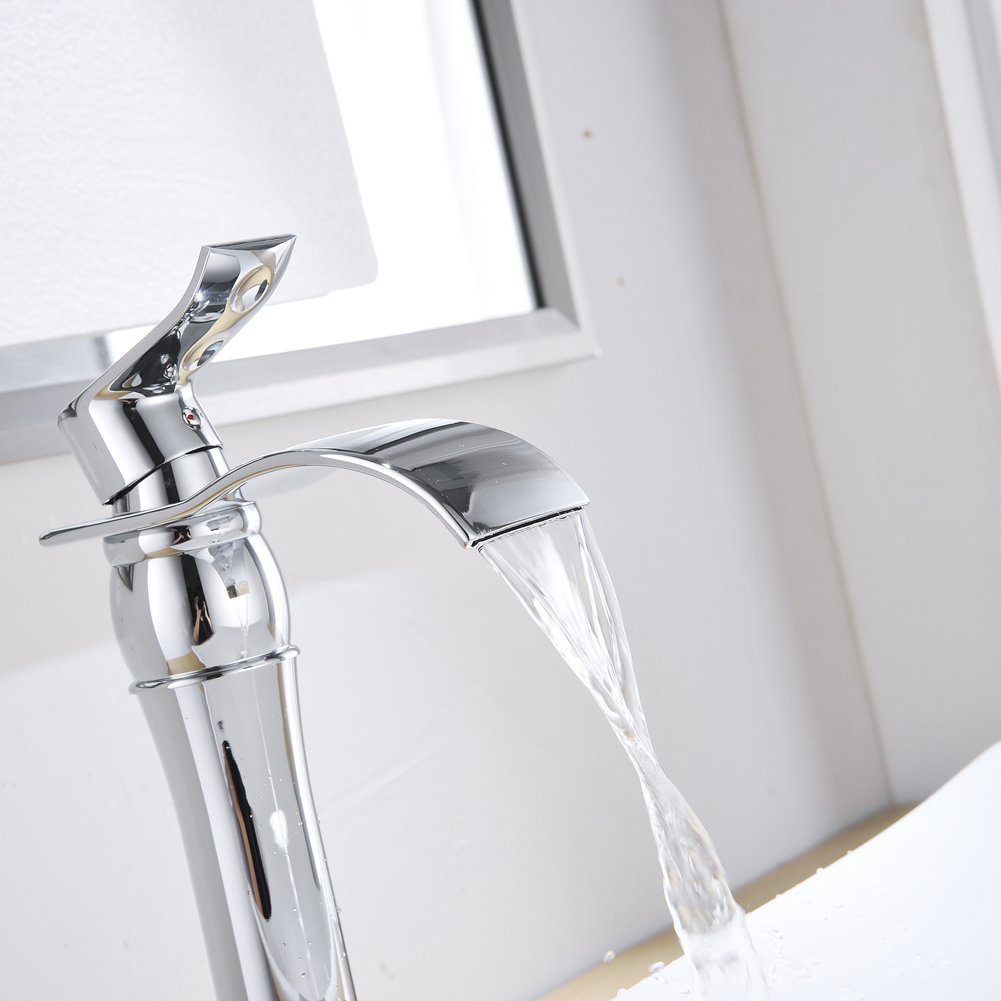

- Water Mode : Waterfall
- Water Feature : Mix Hot and Cold
- Water Pressures : Minimum 0.5 bar, 1.0 bar recommended
| |
|
Important Note:
Before you begin, please read the installation instructions below. Observe all local building and safety codes.
Unpack and inspect the product for any shipping damages. If you find damages, do not install.
Please note all showers must be installed by a professional and certified plumber otherwise warranty may be voided.
|
|
Faucet Installation Instructions
|

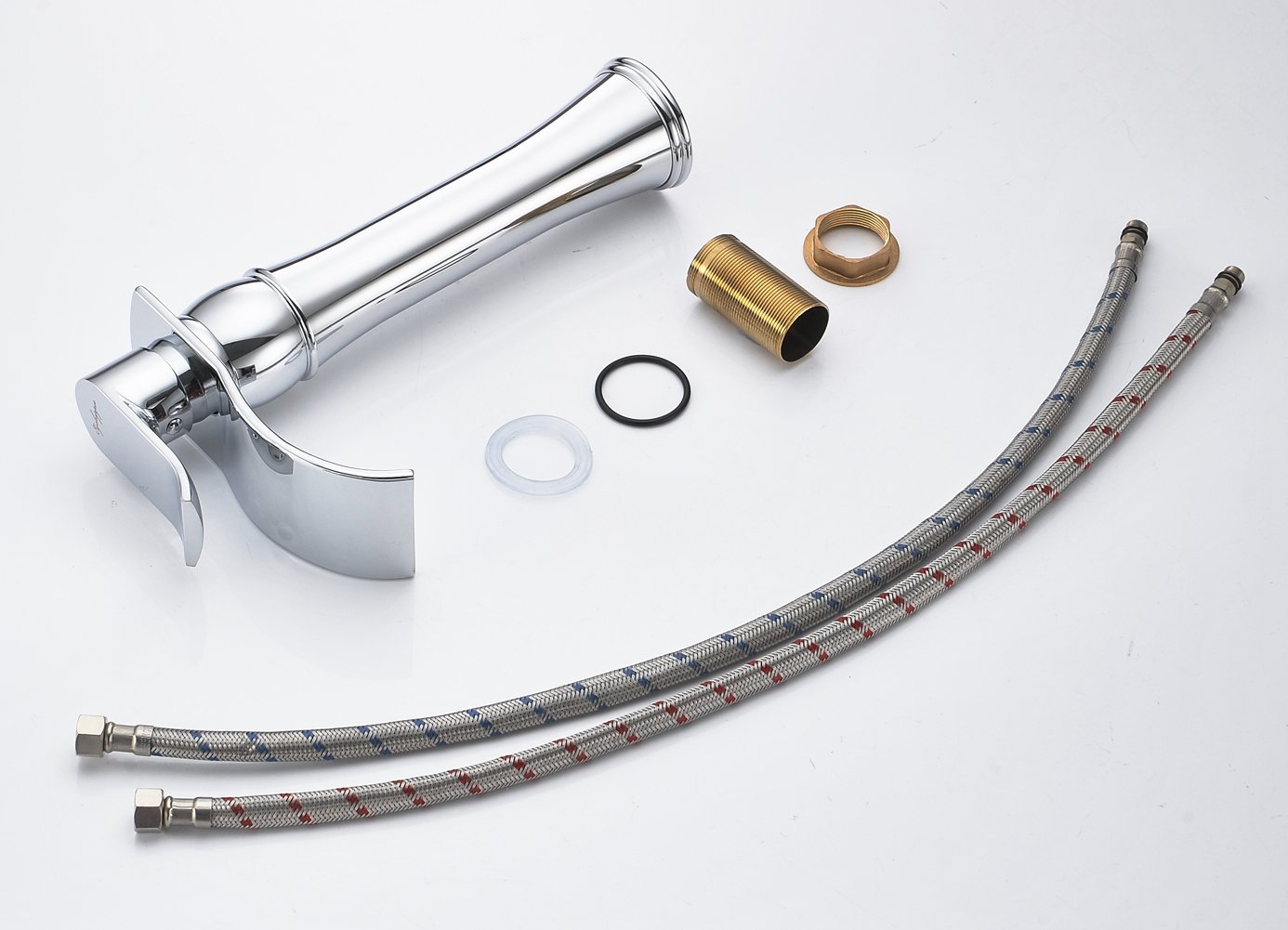

Step 1: (Assemble Parts)
|
sink faucet
|
Step 2: (Mount Faucet)
|
faucet
|
|
|
|
|
|
|
|
|
|
|
Step 3: (Flush Debris)
|
|
Step 4: (Connect Water pipelines)
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
1. Remove the mounting nut, metal washer, and rubber washer from the threaded pipe.
2. Fit the O-ring into the groove of the faucet body. Screw waterlines into the corresponding screw-hole of the faucet body.
3. Insert waterlines and threaded pipe into the hole of the sink.
4. Install rubber washer, metal washer, and mounting nut back to the threaded pipe. Adjust the faucet body correctly and secure with mounting screws tightly.
5. Connect waterlines to angle stops. Turn on the angle stops and check for leaks (DO NOT TURN FAUCET ON).
6. Turn faucet on for 1 minute to flush any debris.
Important: Turn on hot and cold water supplies and flush water lines into a container for one minute.
This flushes away any debris that could cause damage to internal parts.

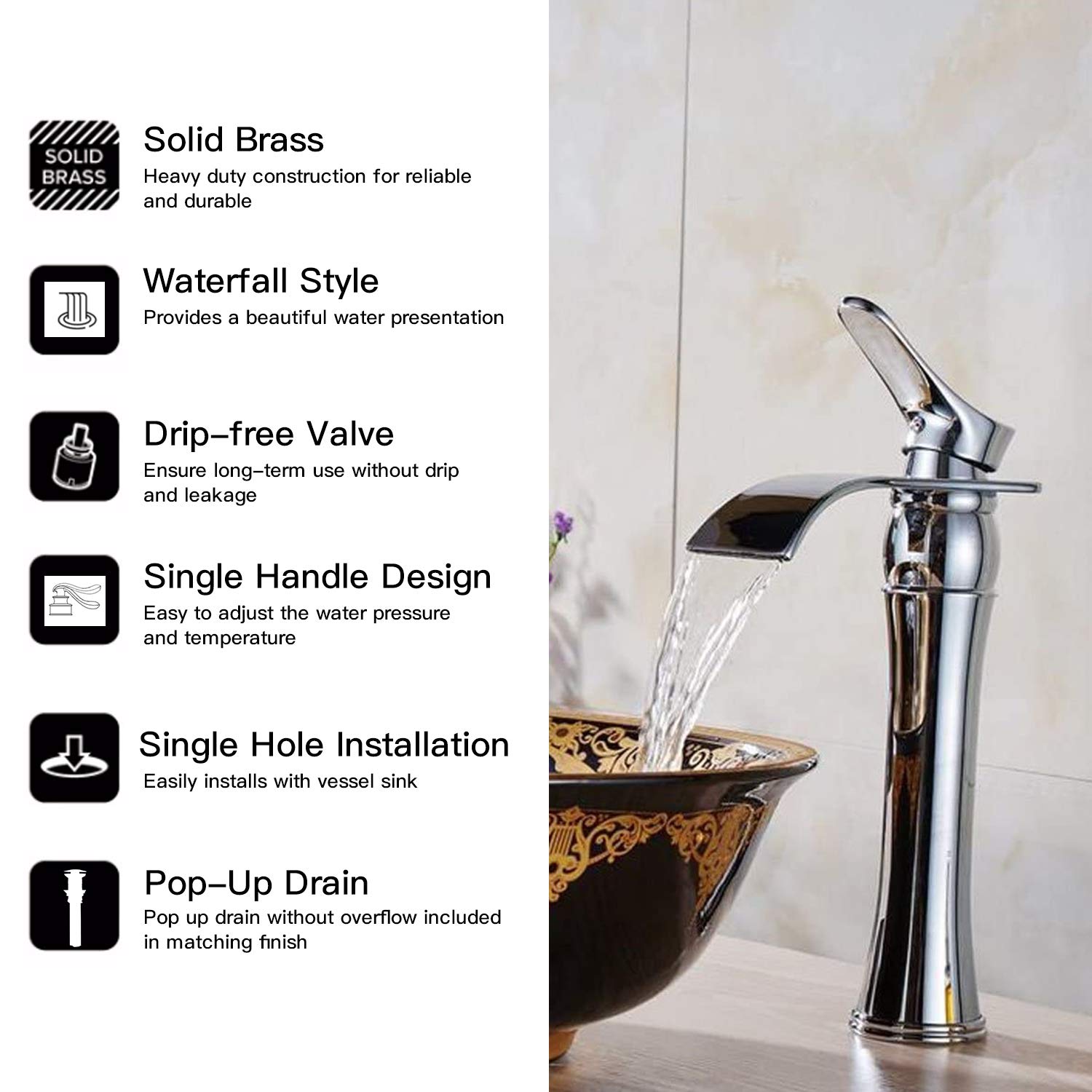

Details
Single lever design for effortless flow and temperature control
Standard 3/8-In compression threads easy to install and hardware
Chrome finish is highly reflective for a mirror-like look that works with any decorating style
Solid brass construction ensures quality and reliability
Type: One Handle Single-Hole Bathroom Faucet
Mounting: Deck mounted/one Hole
Finish: Chrome
Main Body Material: Brass
Handle Material: Zinc Alloy
Water Mode: Waterfall
Valve: Reliable Ceramic Cartridge
Total Height: 12 inch
Spout Reach: 9.8 inch
Spout Height: 4.1 inch
|
|
|
|
|
|
