Before you begin, please read the installation instructions below. Observe all local building and safety codes.
Unpack and inspect the product for any shipping damages. If you find damages, do not install.
Please note all showers must be installed by a professional and certified plumber otherwise warranty may be voided.

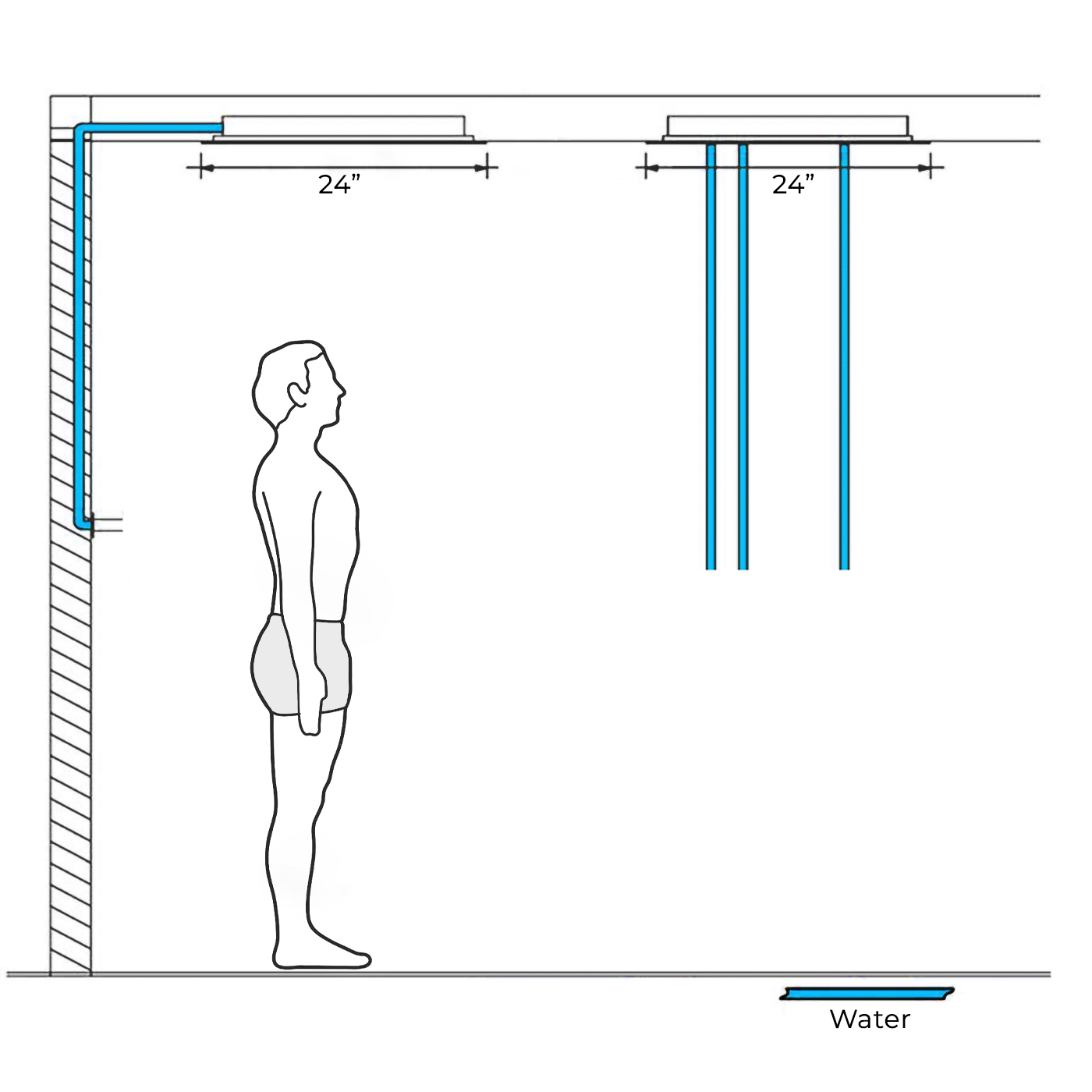

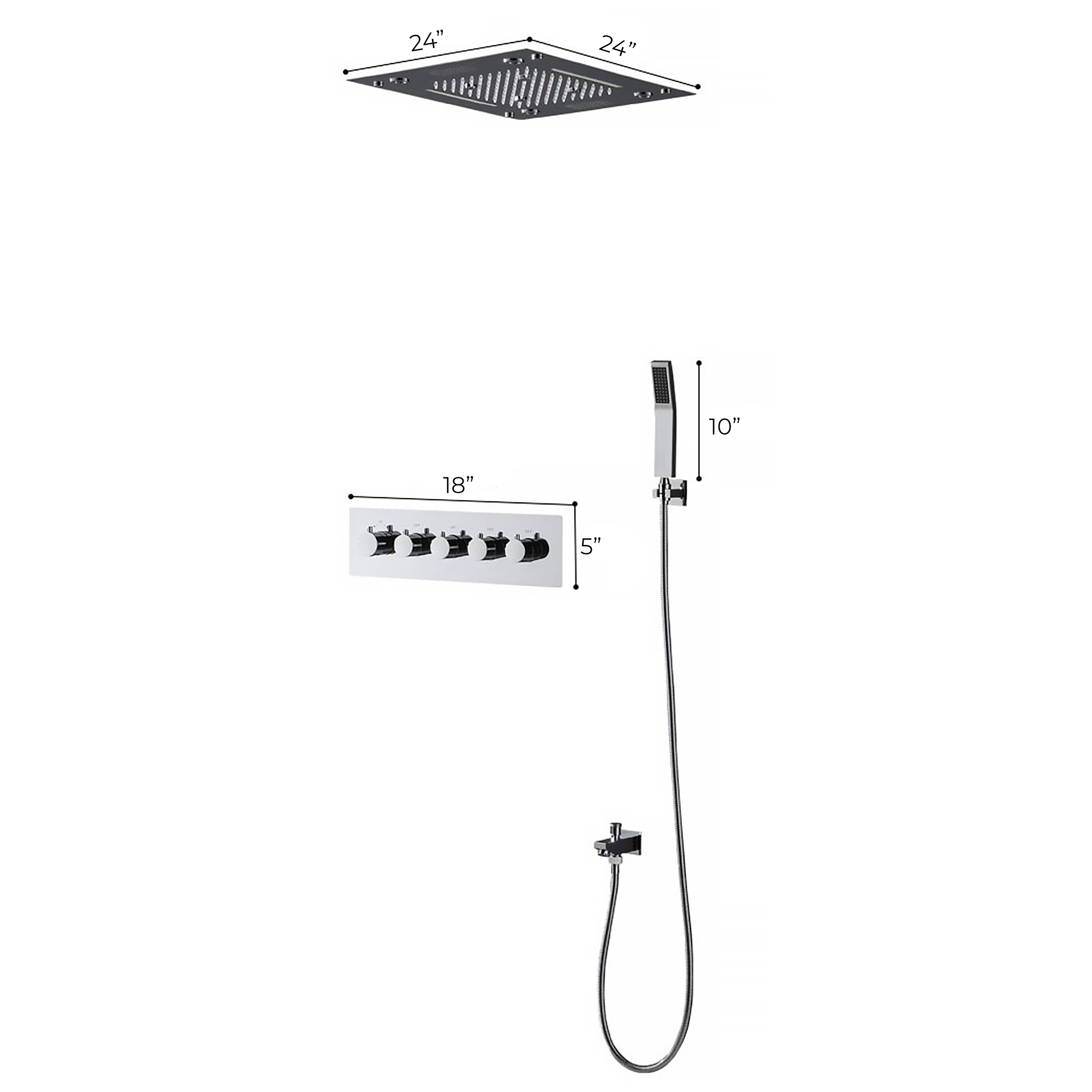

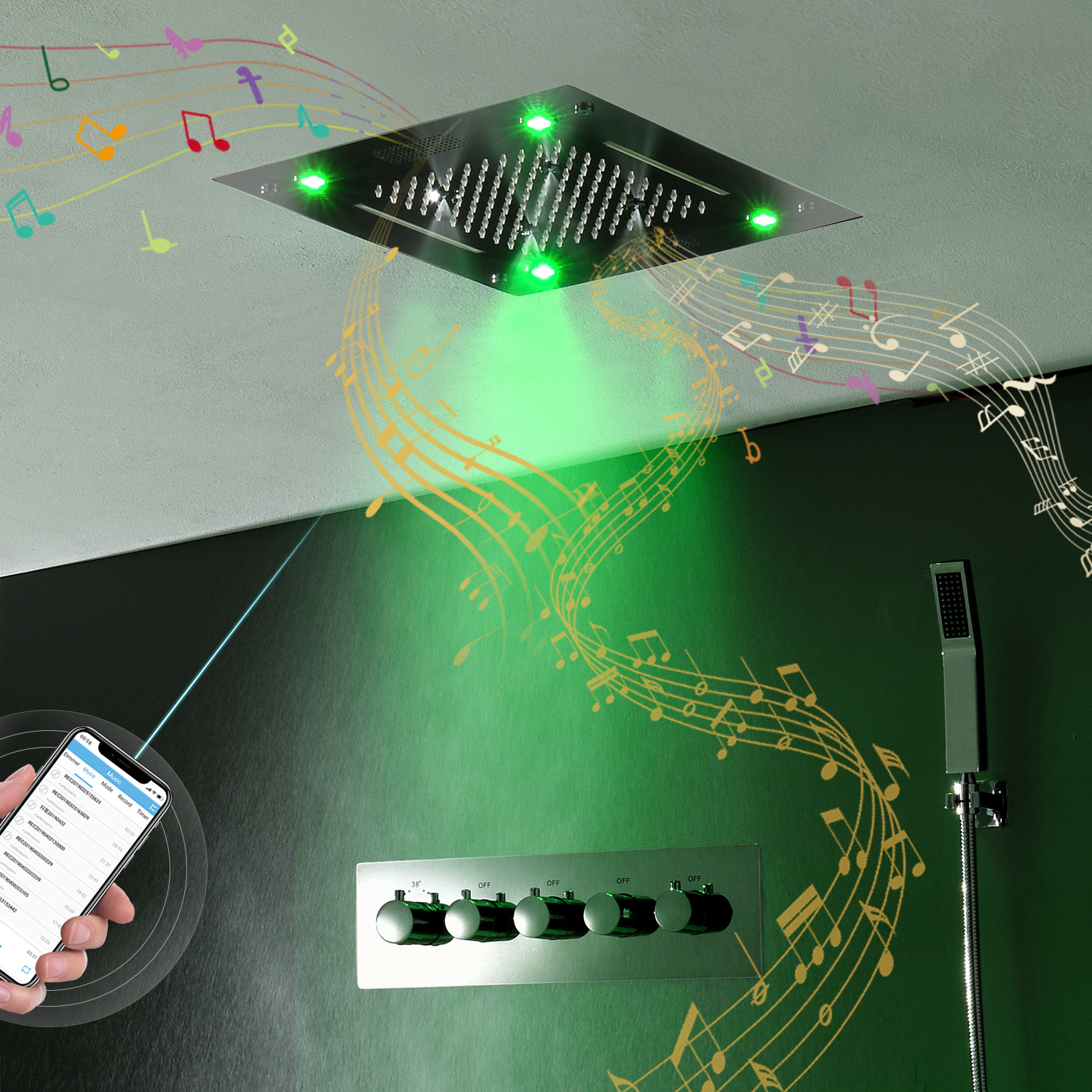

Recessed Shower Head Installation Instructions
Step 1:
showerhead
Step 2:
Step 3:
Step 4:
Step 5:
Step 6:
Step 7:

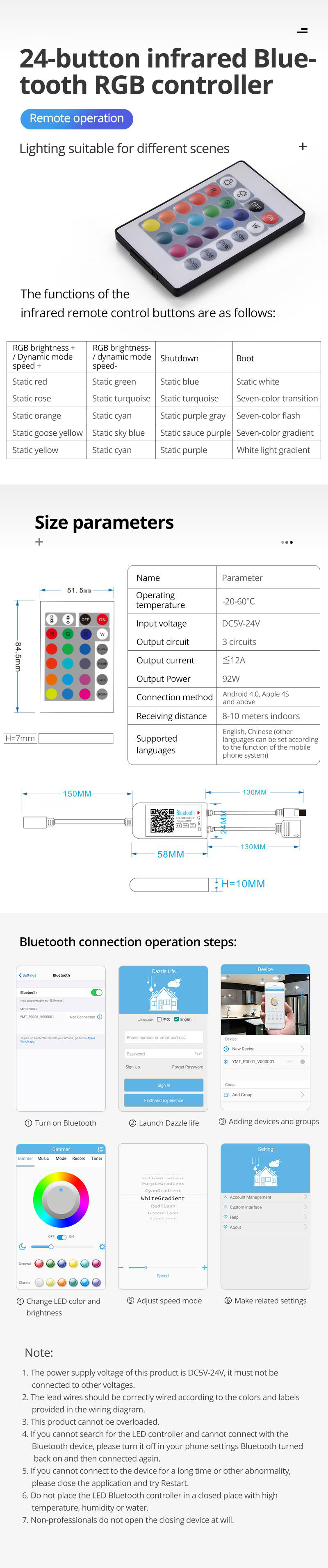

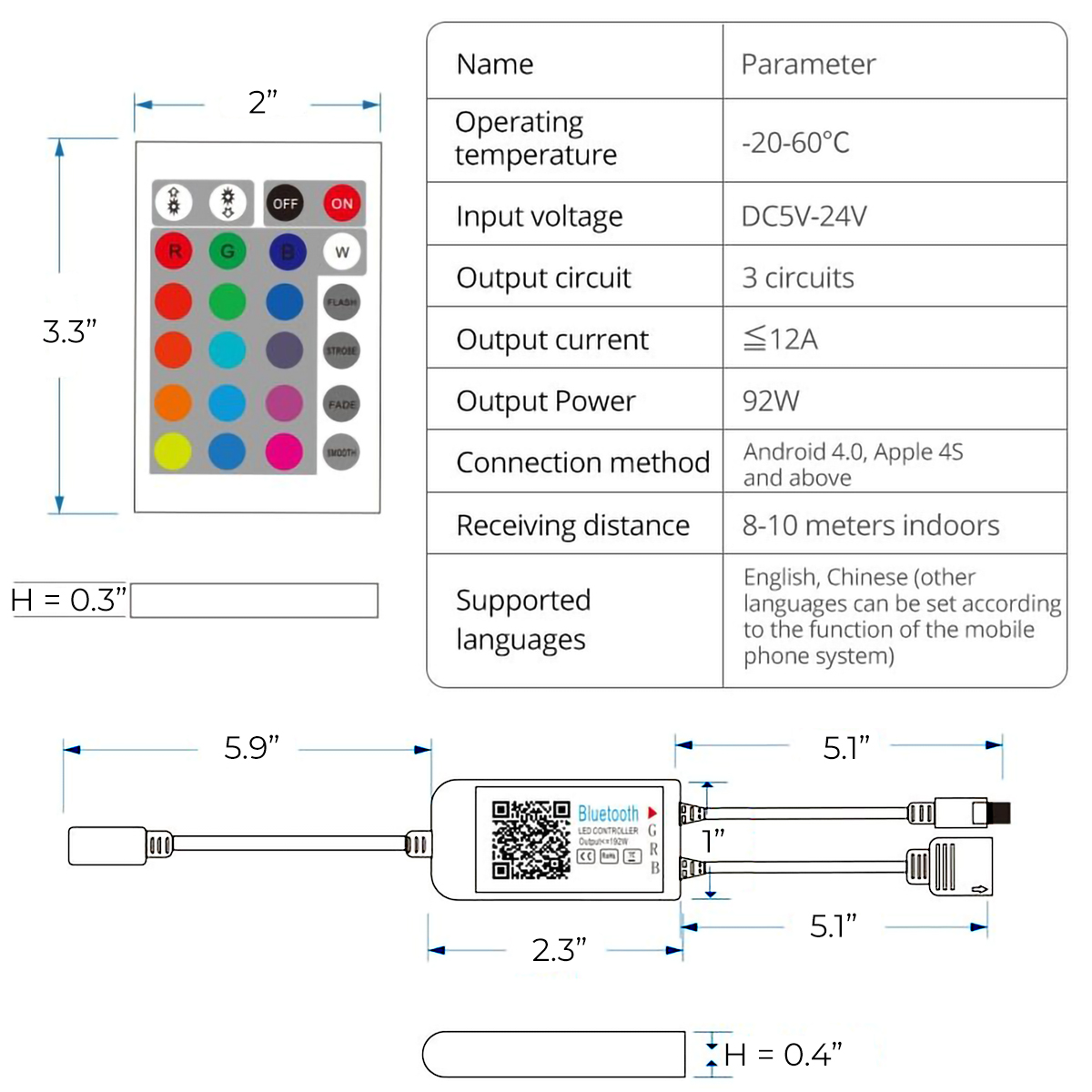

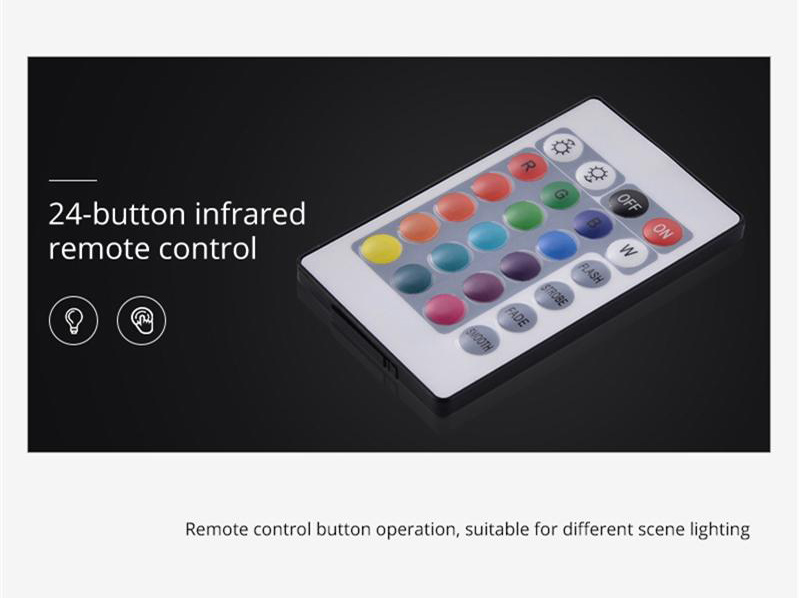

Remote Control Specs:
Make connections to the desired shower mixer valve.
Step 8: (LED Control Box)
Step 9:
Minimum water pressure requirement : 0.3MPA Water Flow : 9L-25L/min Power : Electricity Powered
Regular Working hydraulic pressure :40-90 PSI Regular Working water flow :2.11 - 6.34 GPM.

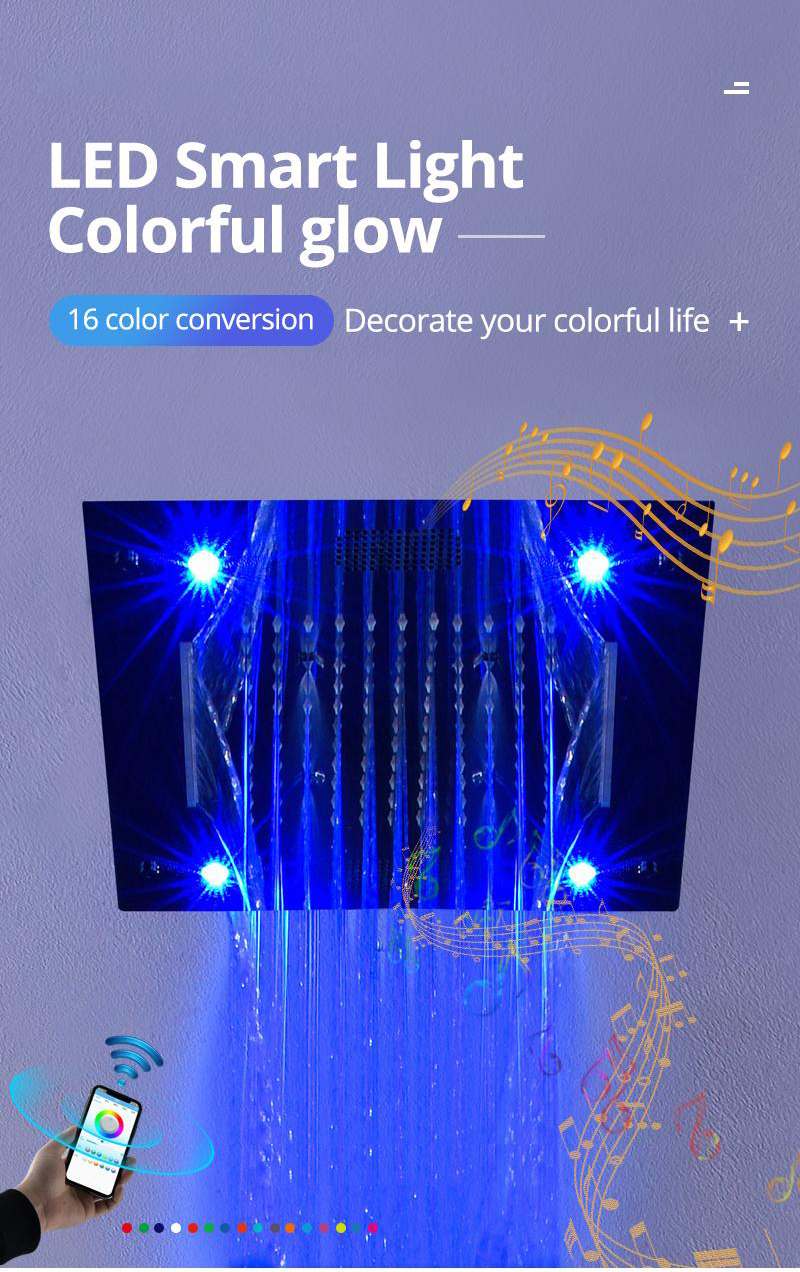

LED Light: Need to Connect Power
LED Light Color: Remote Control LED Light
Shower Hand Held Shower Installation Instructions
Step 1:
Step 2:
HandHeld
Shower
Hand Held Shower
Handheld Shower
Step 3:
Tub Spout & Hand Shower Elbow Installation • Complete the outlet pipework ensuring it ends in an appropriate 15mm x 1/2" BSP female thread elbow.
Note: This fitting is not supplied as variations in installations require the selection of a suitable solder or compression fitting.
• Install the 'Wall Outlet', thread long male 1/2" BSP into the appropriate female fitting using PTFE tape to give a watertight joint.
Note: The thread can be cut to size if required. Make sure that all debris is removed from the connector and the section that has been cut is dressed correctly, before installation.
Shower Wall Holder Installation Decide the position for the shower head holder on the wall within the bath showering area and proceed as follows: • Hold the hand shower head holder fixing plate in a suitable position on the wall, mark out the position of the holder. Mark the two locating holes, these are 17mm center. • Drill and plug the wall. Use an appropriate masonary drill, but if the wall is plasterboard or a soft building block, use special wall plugs and an appropriate drill bit. • Slide the inserts onto the screws in the orientation. Secure the inserts by tightening the screws. • Slide the hand shower head holder body onto the inserts and secure by tightening the grub screw facing down.
