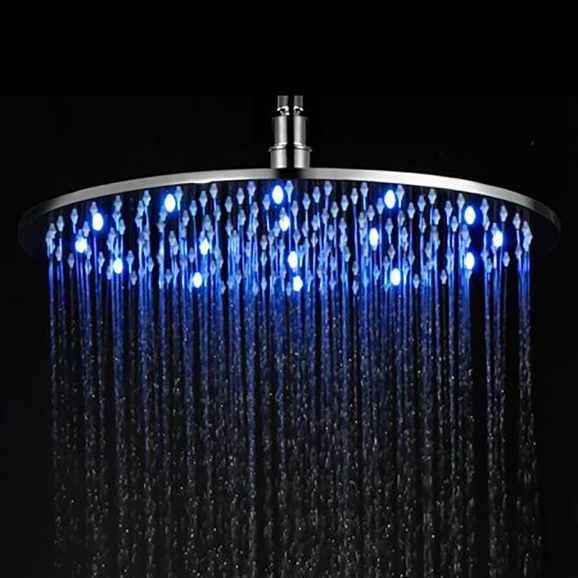

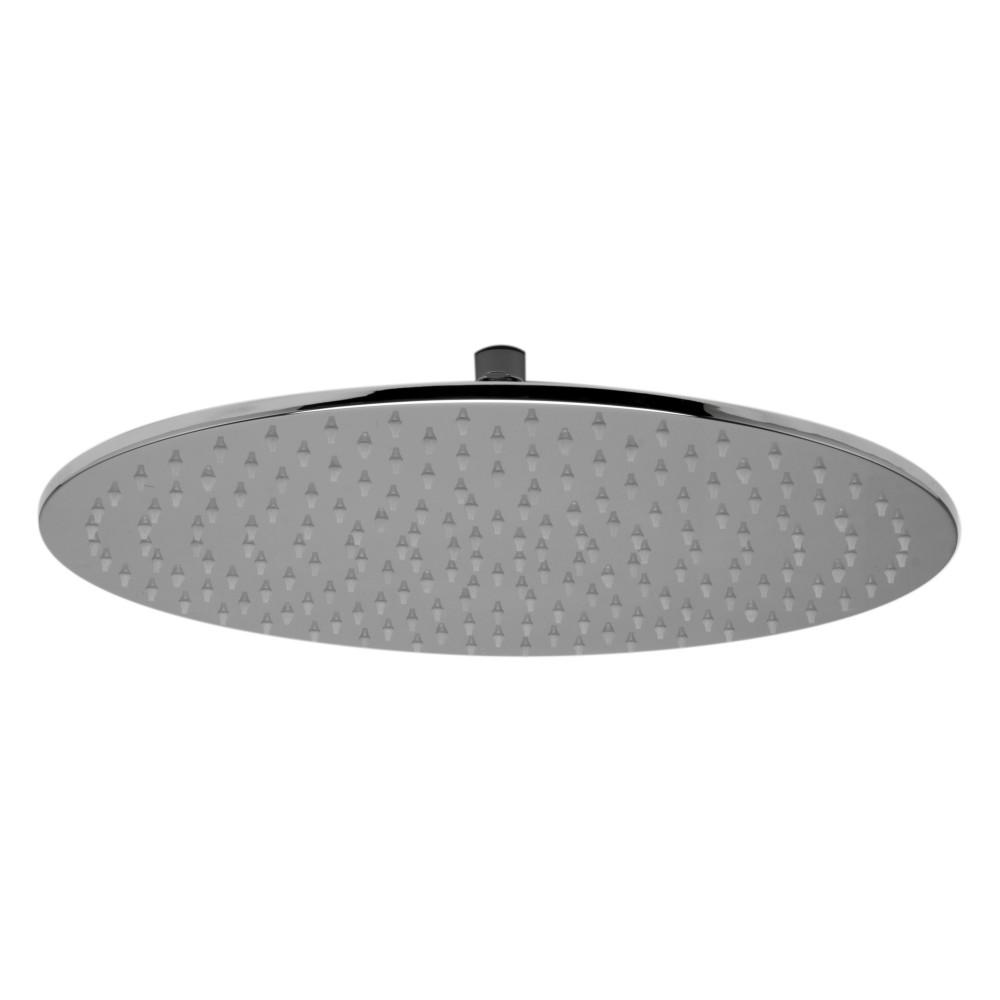

How to Install 20" Brushed Nickle Round Color Changing LED Rain Shower Head | BS-ARC02
Shower Head Installation Instructions

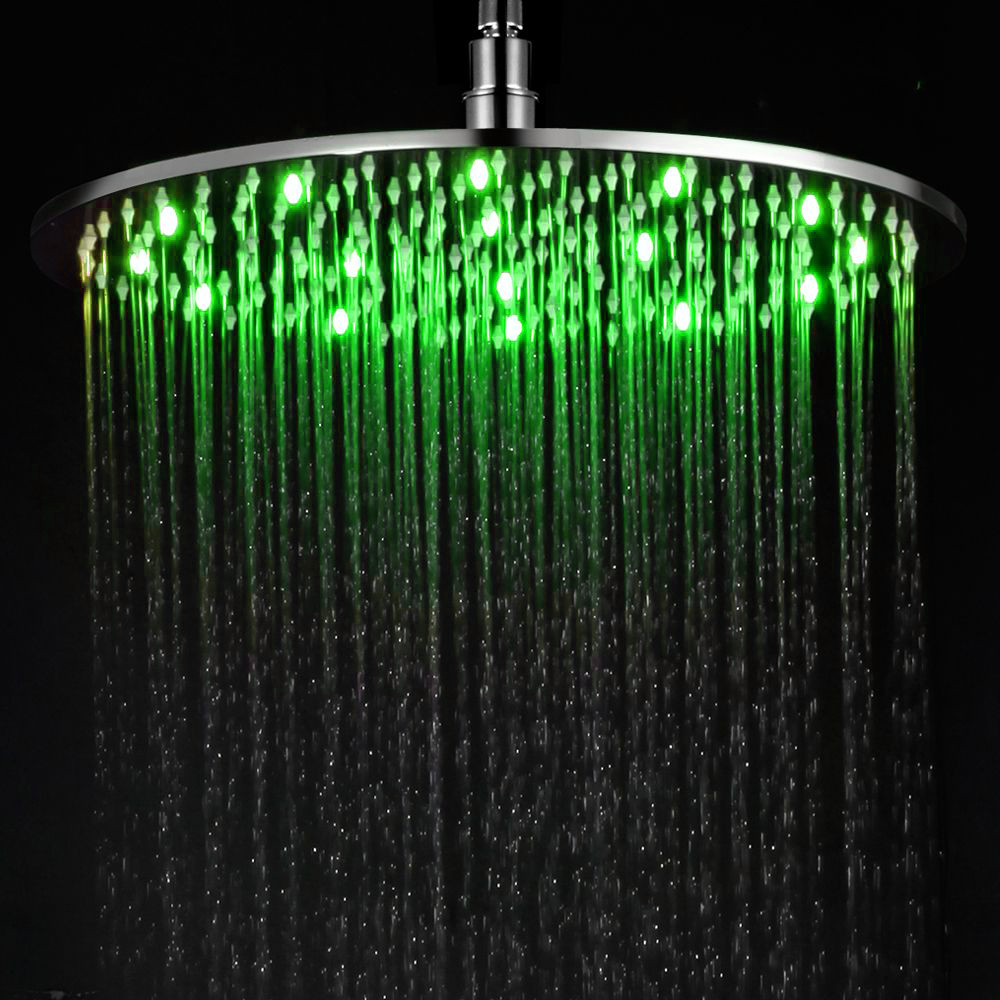

| This contemporary brushed nickel led shower head has a warm, soft appearance that looks classic against white and coordinates well with granite or slate, you can turn on the fun in your shower just by turning on the water, the LED lights will automatically light up and set the mood. They will even change colors automatically based on the water temperature. All this with no batteries, everything is self-powered by a built in dynamo that takes advantage of the water pressure to create the energy to light the bulbs. | |  | | |
|
| |
|
|
| |
|
|
Features:
| |
|
- This high tech 20" brushed nickle rain shower head powers the LED lights using a built in hidden dynamo
- The lights will automatically turn on when water pressure is turned on
- The lights will dim and brighten when you lower and raise the pressure so you can set the perfect mood, water and light
- The shower head will automatically change colors according to the temperature of the water so you always know how the water will feel on your skin just by looking at it
- Never be scalded again by entering a shower that is just too hot
- The threading is universal so it will fit any standard shower head by simply unscrewing the old one by hand and attaching the new one. A ceiling mount shower arm is included
- The shower head can be used with either wall or ceiling mount arm
- Modern stylish design completely polished chrome made to match or stand out from your other bathroom fixtures
- High quality this modern shower head is made out of brass, so its made to last!
- The flow rate is 2.5 GPM

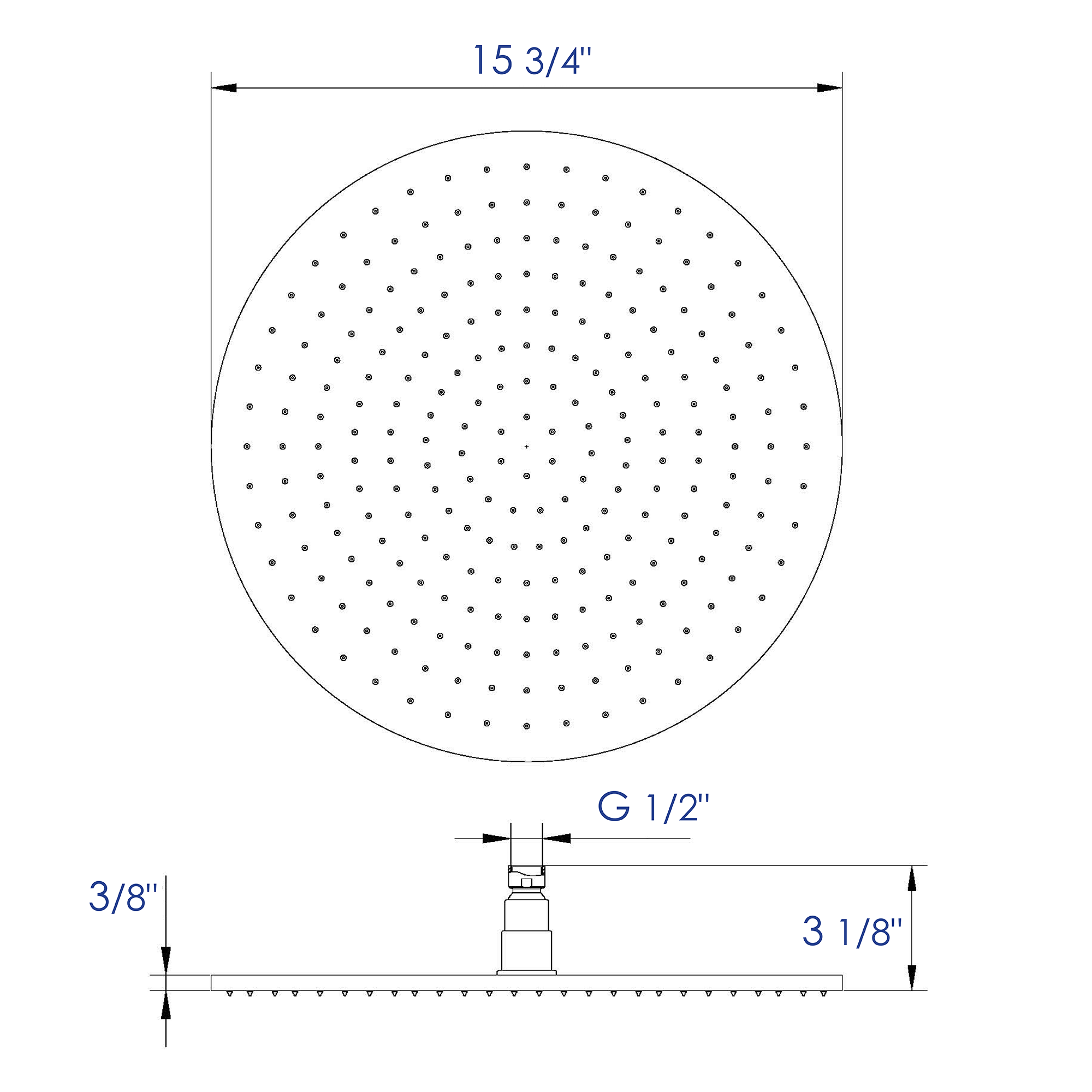

- Connection - 1/2" US standard (included)
| shower |
|
Important Note:
Before you begin, please read the installation instructions below. Observe all local building and safety codes.
Unpack and inspect the product for any shipping damages. If you find damages, do not install.
Please note all showers must be installed by a professional and certified plumber otherwise warranty might be voided.
|
|
Shower Head Installation Instructions
|
|
|
|
|
|
|
|
|
Step 1:
|
shower
|
installation
|
Step 2:
|
|
|
|
 |
|
|
|
|
|
|
|
|
|
|
|
|
|
Step 3:
|
|
|
Step 4:
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Step 1: Take Out the Old Shower Head
You can easily remove it by hand, but depending on how long the rain showerhead has been installed, you might need to use an adjustable wrench. Hence, if you find it difficult to remove, rotate the showerhead with an adjustable wrench in a counterclockwise direction to unscrew it.
Step 2: Keep the Shower Arm Clean and In Good Shape
After you have removed the head, check the shower arm threads for any debris and old Teflon tape. If you find any, remove it and clean them off thoroughly. It’s best to use a microfiber cloth when cleaning the thread because it removes Teflon tape perfectly and works great to pick up tiny grits.
Once you’re done cleaning, check if it is corroded or leaking. For damaged threads, it will be best you replace it entirely so you can have a comfortable shower experience any time.
Step 3: Time to Add New Teflon Tape
Since you have removed the old Teflon tape, you have to replace it with new ones. The reason is that this tape helps to protect the shower from leaking after installing the showerhead. Now apply the new Teflon tape about 3-5 turns on the thread and tear the end part. Use your hands to smooth it out to keep it leveled to the thread. Keep in mind that when applying the tape, you should go in a clockwise motion so that it doesn’t come off when you attach the head in the same direction.
Step 4: Connect the Showerhead

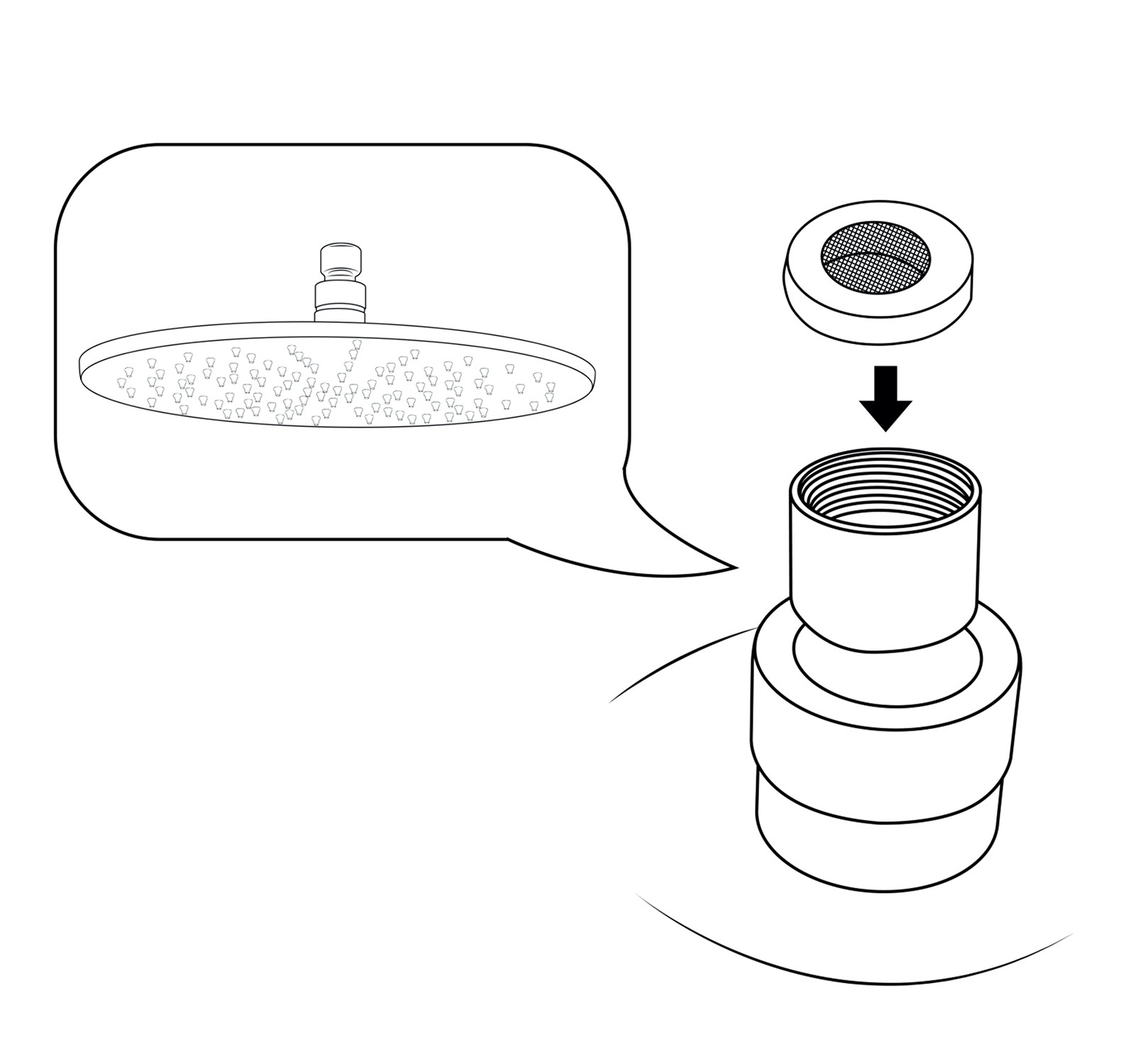

As said earlier in the tools needed, we’re using the rubber sealing washer that comes with the showerhead. This tool helps to make the showerhead stay watertight and secured on to the thread. Ensure you place it properly before installing it.

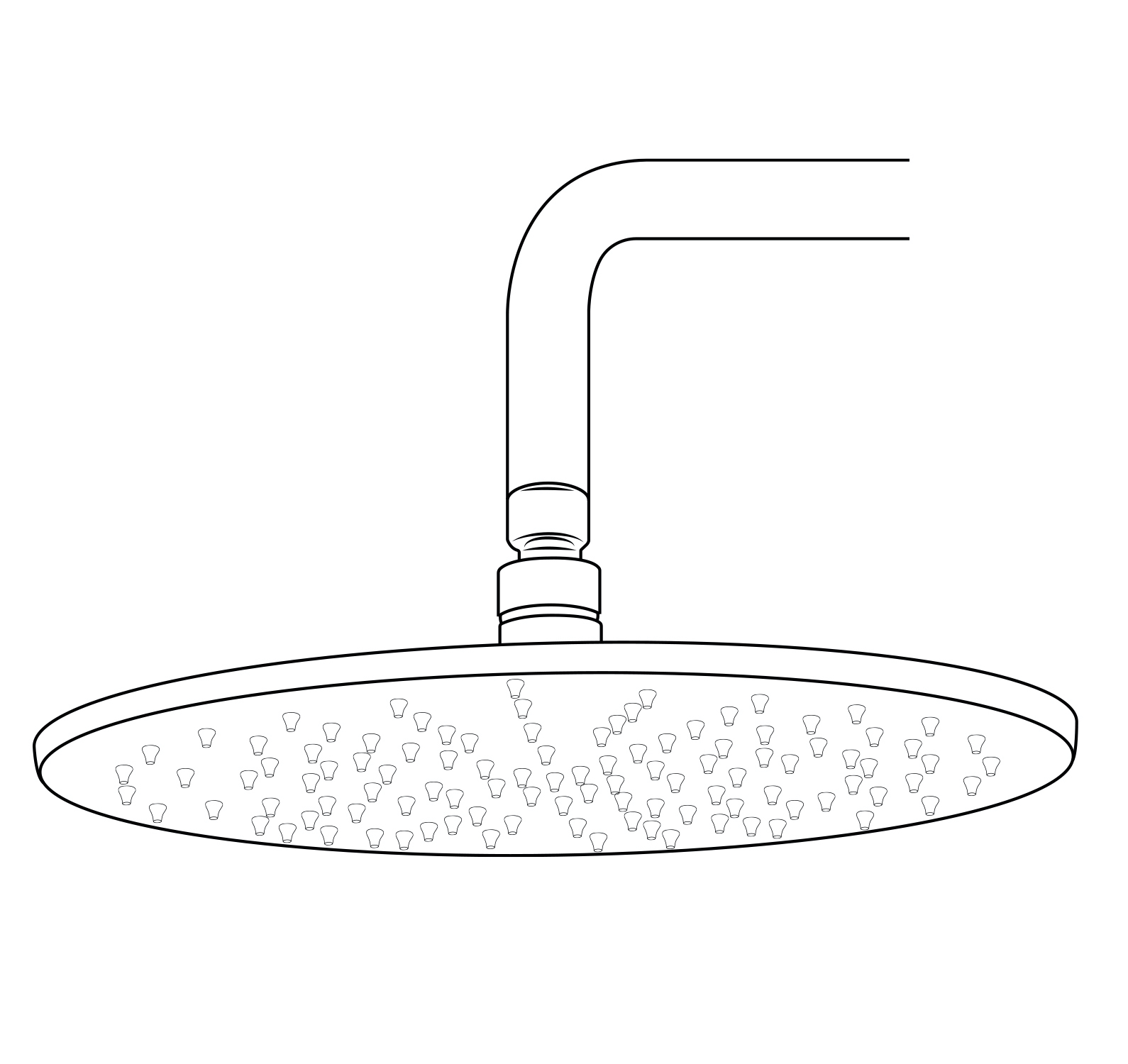

After that, reconnect the shower head and tighten it down with your hands. You can employ a chair or ladder to make things easier for you.
Step 5: Tighten the Showerhead
On To the Thread You will need to get the adjustable wrench handy to tighten down the shower very well. But make sure you wrap the threads with a terry cloth, so it doesn’t damage the finish when tightening the showerhead.
Once you have done that, now use the adjustable wrench to tighten down the showerhead. However, don’t over-tight or force it so that it’s easier to remove in the future.
|
|
|
|
|
|
|
Features:
- Ideal for home and commercial user.
- Blends quality and durability with elegant style.
- Equipped with drip-free ceramic disc valves for long life and smooth feel.
- Strictly choose stainless steel refined to become, corrosion resistance, prevent pollution, water quality health.

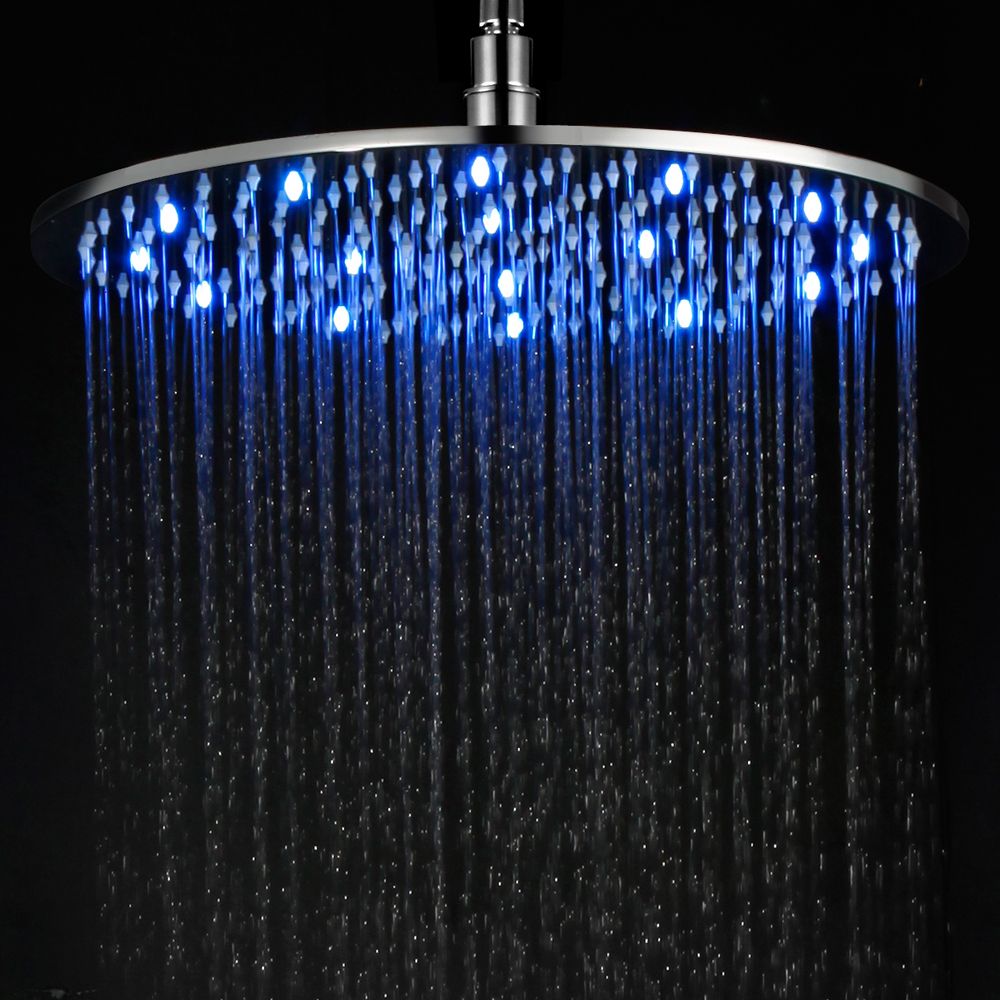

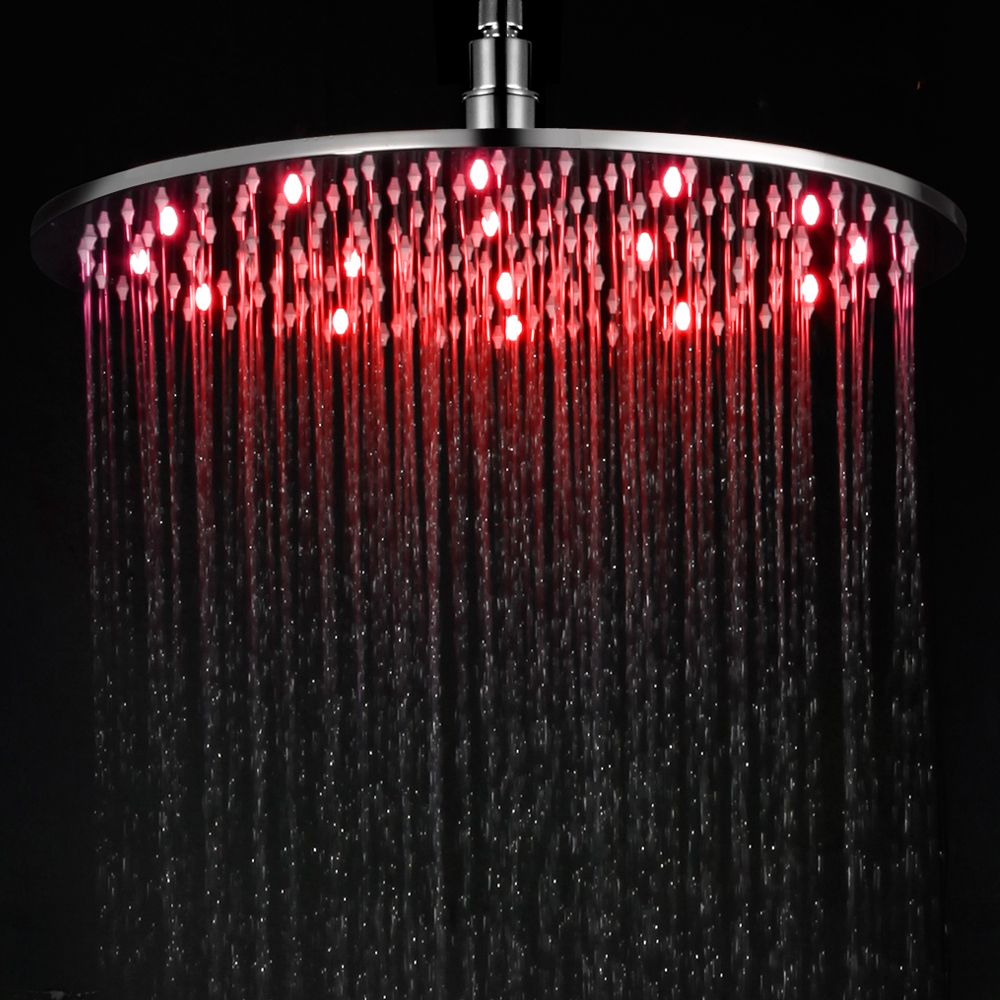

- When water temperature is below 113° F lights glow BLUE. When water temperature is between 114° F - 121° F lights glow RED. When water temperature is over 122° F lights flash RED.
- Features a swivel adapter which allows you to angle the shower head during use.
- Flow Rate 1.8 GPM
Turn on the fun in your shower just by turning on the water. The LED lights on this 16 inch round ALFI brand rain shower head will automatically light up and set the mood. They will even change colors based on the water temperature. This unique shower head includes a built in self-powered dynamo that utilizes the force of water pressure to create the energy needed to light the bulbs; no batteries required. |
|
|
|
|
|
|
|
