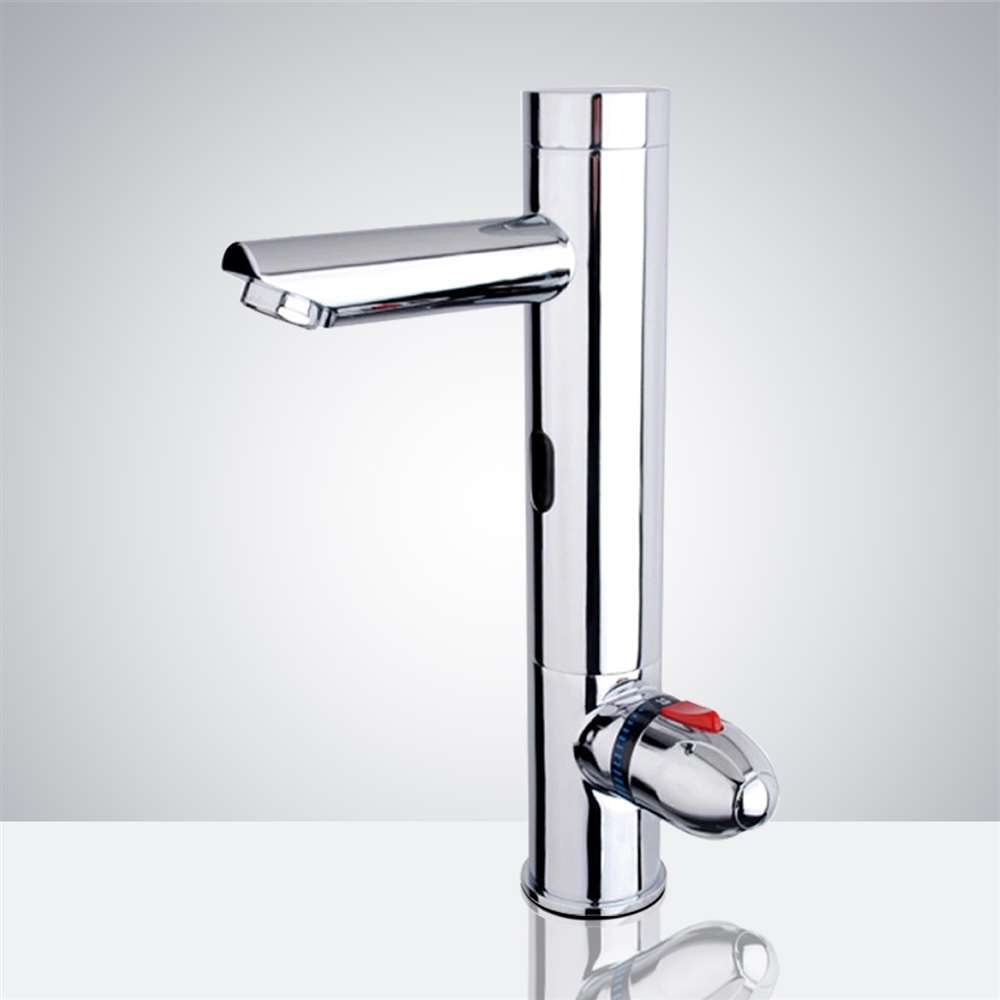

For Luxury Suite Milano All-in-one Chrome Thermostatic Automatic Commercial Sensor Faucet

Milano All-in-one Thermostatic Automatic Commercial Sensor Faucet

Sensor Activated Faucet Special Features:

  • Durable Vandal-Resistant Brass Body;
  • Ideal for commercial use applications in public restrooms, restaurants, office building, public facilities, hospitals.
  • Fits all standard US plumbing.
  • Intelligent: with its micro-computer controlling its action, the faucet will self adjust its best detection zone as per the color and shape of lavatory
  • Flashing light indicator; a diagnostic indicators for power up, low battery, and solenoid function. Meaning of the codes are described in the installation instructions.
  • Convenient to maintain; with built-in strainer to prevent sundries from entering the solenoid valve and the strainer is easy to clean
  • Faucet can be mount to any sink surface.
  • ADA Compliant
  • Batteries life 8,000 cycles per month and with enough water pressure is approx 5 year service life of the batteries.
  • Adjustable sensing range; while the factory range is set about 4"to 5"from the sensor, it can be adjusted.
  • Usage: Commercial / Residential
  • Diameter of inlet pipe: DN15
  • Diameter of outlet pipe: DN15
  • Water Pressure: 0.05Mpa - 0.7Mpa
  • Power: DC.6V
  • Detection Zone: Factory set 25cm/10" (based on standard inductive board)
  • Ambient Temperature: 1 - 45 ℃ / 33.8 -113 °F
  • Degree of protection by enclosure: 1P56

Heavy Duty Lavatory Automatic Sensor Faucet, Solid Brass, Generally Suitable for

Heavy/Medium Traffic Commercial and Residential Applications.

  • Specifications: Overall Height: 7" (measured from counter top to the highest part of the faucet)
  • Spout Height: 3-1/2" (measured from counter top to the spout outlet)
  • Spout Reach: 4" (measured from the center of the faucet base to the center of spout outlet)
  • Mounting Type: Single hole
  • Number of Hole Required for Installation: 1
  • Faucet Centers (Distance Between Handle Installation Holes): Single Hole
  • Flow Rate: 1.3 GPM (gallons-per-minute)
  • Maximum Deck Thickness: 1-5/8" Infrared sensor operation

Features


Milano All-in-one Thermostatic Mixer Sensor Faucet B5137

  • The infrared sensor technology: Sensor-operated taps increase hygiene in public and patient restrooms. Surprisingly, the dirtiest area in the bathroom, as far as germs are concerned, are the handles to the tap that collect most of the germs on them.
  • The thermostatic technology: Controlling the temperature fluctuations at the outlet prevents scalding. Mixing the water at the desirable temperature at the point of use allows to store the water enoughcoldand hot to prevent scalding.
  • Installation is a child's game, almost like a manual faucet
  • Easy servicing
  • Version with mixer to adjust the temperature also available
  • 6V battery or electrical connection version available
  • Solenoid valve inside the product
  • Operates with low and high pressures (0.5 to 7Bar)
  • Range adjustment
  • Two products in 1: the thermostatic mixing valve and operates by an infrared sensor
  • Usage: Commercial / Residential
Installation Manual For Details of Milano All-in-one Thermostatic Sensor Faucet Faucet Installation Instructions
