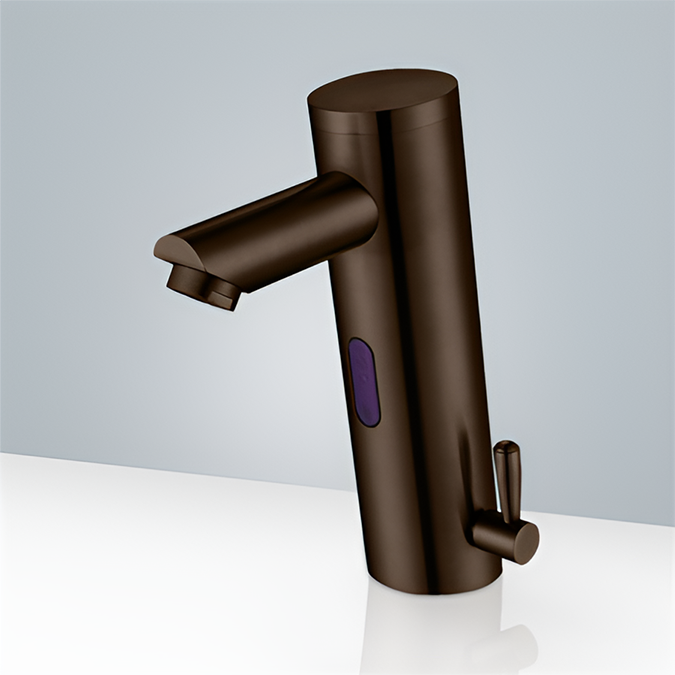

For Hotel Restroom BathSelect Platinum Thermostatic Commercial Automatic Hotel Bath Faucet Solid Brass Construction in Light Oil Rubbed Bronze Finish
Commercial Automatic Faucet with Integral Water Mixing Valve Light Oil Rubbed Bronze Finish
|
- Touchless Operation
- Sensitive Sensor with Infrared AI Smart-Chip
- Factory set to 30-second Auto Shutoff (can be adjusted).
- Water Pressure: 0.5 - 7.0 KGS/cm, 10 - 125 psi
- Solid Brass Construction, Light Oil Rubbed Bronze Finish
- Installation made easy with simplified instructions
- Water resistant solenoid enclosure
- Advanced energy saving design for long lasting battery life
- Comes complete with Hoses & Accessories
- ADA Compliant
- Hotel Restroom Touchless Faucet can be installed in new or retrofit applications.
- Usage: Commercial / Residential
- Ideal for commercial use applications in public restrooms, restaurants, office building, public facilities, hospitals.
- Fits all standard US plumbing.
|
|

Intelligent: with its micro-computer controlling its action, the faucet can self adjust its best detection zone as per the color and shape of lavatory!
Sensor Faucet finish is polished chrome, with built-in Infrared AI Smart-Chip No Water Dripping Design 100% Touch-free operation.
Sensor faucet
meets ADA regulations
Reduces the transfer of germs by preventing cross-contamination and re-contamination of germs and bacteria by not touching the faucets or handles. Cut down on water usage by minimizing waste of water while soaping, lathering, scrubbing and drying hands by eliminating unnecessary and unattended water flow.
Platinum Sensor Faucet Special Features:
- Durable Vandal-Resistant Brass Body; Ideal for commercial high use restroom applications
- Intelligent: with its micro-computer controlling its action, the faucet will self adjust its best detection zone as per the color and shape of lavatory
- Flashing light indicator; a diagnostic indicators for power up, low battery, and solenoid function.
- Meaning of the codes are described in the installation instructions.
- Convenient to maintain; with built-in strainer to prevent sundries from entering the solenoid valve and the strainer is easy to clean
- Faucet can be mount to any sink surface.
- ADA Compliant
- Batteries life 8,000 cycles per month and with enough water pressure is approx 5 year service life of the batteries.
- Adjustable sensing range; while the factory range is set about 4"to 5"from the sensor, it can be adjusted.
- Diameter of inlet pipe: DN15
- Diameter of outlet pipe: DN15
- Water Flow Rate: 1.3 GPM (gallons-per-minute)
- Power: DC.6V
- Detection Zone: Factory set 25cm/10" (based on standard inductive board)
- Ambient Temperature: 1 - 45 Ž / 33.8 -113 ‹
- Degree of protection by enclosure: 1P56
- Overall Height: 7" (measured from counter top to the highest part of the faucet)
- Spout Height: 3-1/2" (measured from counter top to the spout outlet)
- Spout Reach: 4" (measured from the center of the faucet base to the center of spout outlet)
- Mounting Type: Single hole
- Number of Holes Required for Installation: 1
- Faucet Centers (Distance Between Handle Installation Holes): Single Hole
- Flow Rate: 1.3 GPM (gallons-per-minute)
- Maximum Deck Thickness: 1-5/8"
- Infrared sensor operation with temperature control.
Platinum Sensor Faucet Product Description
The Platinum Sensor Faucet an electronically controlled faucets that eliminate the need to touch or turn handles. Through the use of sensor beams the automatic faucet determines when an object is in front of it and automatically turns on the faucet. Since there is nothing to touch and nothing to reach for, an automatic faucet eliminates all of that cleaning and disinfecting that you do to try to maintain a hygienic surface. Bathroom sensor faucets are anti-erosion, anti-abrasion and high strength. Minimize waste of water, by using the automatic faucet. Immediately reduces water waste by eliminating unnecessary and unattended water flow.Fits all standard US plumbing.Uses 4AA Alkaline Batteries (purchase separately)
Water Pressure: 0.5 - 7.0 KGS/cm, 10-125 psi.This faucet is used for commercial heavy traffic facilities.
Sensor Faucet water-saving; hygienic; automatically opens and closes
Hands Free - no touch, avoid contamination, cross infection!!
A must in, restrooms, hotels, restaurants, public places, government facilities...!
- This Sensor Faucet Applications: Residential, Commercial use & ADA
- This faucet is shipped complete. ANSI A112.18.1M CSA Standard B125, 2.2 U.S.
- GPM Complies with NSF Standard 61, Section 9
- Flow Preventers Stainless Steel Hoses Mounting Hardware Batteries Pre-installed
- All the hardware necessary for satisfactory installation
- Specifications and Dimensions
- Spout: Chrome Plated Solid Brass Power: 4 (AA) Alkaline Batteries or AC Adapter
- Battery life expectancy: 250,000 cycles Solenoid valve: 6 Volt magnet latching
- Working Water Pressure: 1 PSI -100 PSI
- Supply Inlet Size: 1/2h NPT Male
- Water Temperature Control;
- check Options for temperature control sensor faucets
- Built-in Pop-Up Drain
- Rod: N/A
- Sensor type and Location: Active Infrared, Neck mount Senso
- Microprocessor: Digital, Pug And Play Sensing Range: 2h to 6h
- Response Time: 0.3 Second Shut-Off Delay Time: 2 Seconds
- Anti vandalism maximum Running Time: 60 Seconds
- Particle filter size: 50
- Mesh Aerator: 2.2 GPM Standar
|
|
|
 |
|
 |
|
|
|
 |
|
 |
|
Features
Platinum Thermostatic Sensor Tap B505 Product Description
- The infrared sensor technology: Sensor-operated taps increase hygiene in public and patient restrooms. Surprisingly, the dirtiest area in the bathroom, as far as germs are concerned, are the handles to the tap that collect most of the germs on them.
- The thermostatic technology: Controlling the temperature fluctuations atthe outlet prevents scalding. Mixing the water at the desirable temperature at the point of use allows to store the water enoughcoldand hot to prevent scalding.
- Installation is a child's game, almost like a manual faucet
- Easy servicing
- Version with mixer to adjust the temperature also available
- 6V battery or electrical connection version available
- Solenoid valve inside the product
- Operates with low and high pressures (0.5 to 7Bar)
- Range adjustment
- Two products in 1: the thermostatic mixing valve and operates by an infrared sensor
- The Oil Rubbed Bronze finish will not fade, tarnish or corrode for the lifetime of the faucet.
|
|
|
|
|
|
|
