How to install Shower Set with Wall Mount Round Showerhead, Body Jets, Hand Held Shower and Thermostatic Mixer

BathSelect Thermostatic Brushed Gold Rainfall Shower Set with Handheld Shower Enhance your modern bathroom with Brushed Gold Rainfall Shower Set with Handheld Shower, which comes complete with the round wall mount shower head along with four square body jets and the thermostatic triple shower valve and a hand held shower. Its rainfall effect experience makes showering experience more soothing and relaxing. Its optimum design and innovative technology allow for voluminous soft droplets to make your showering experience a fun one. Constructed from solid brass and stainless steel with a high-quality unique brushed gold finish, the thermostatic shower valve features stylish yet easy to use handles that control the flow and temperature of the water and a diverter that allows you to switch between the fixed head, hand shower or the body jets. Made from solid brass that looks sleek and modern but delivers a refreshing showering experience. The shower arm is wall-mount that has been made from brass. The square body jets enhance the overall showering experience and provide an invigorating massage effect, while the hand shower with adjustable slide bar allows for easier rinsing and cleaning. The flow rate is 2.5 GPM. Easy installation, comes with all standard accessories. It is designed to be lightweight, durable and corrosion-resistant and has an automatic anti-scald device. BathSelect Brushed Gold Rainfall Shower Set with Handheld Shower Features: Brand Name: BathSelect Model Number: BS1001 Type: Shower Set Finish: Gold Number of Handles: Tripe Handle Brass Valve water pressure balance control Standard plumbing connection-Shower panel unit is pre-plumbed All functions work independently to ensure the proper water pressure Ceramic Disc Technology ½" NPT Inlets and outlets compatible with standard US plumbing connections Pre-set maximum temperature 104ºf The recommended pressure for best performance 2 to 75 psi The flow rate is 2.5 GPM BathSelect® Manufacturer Warranty Information Before you begin, please read the installation instructions below. Observe all local building and safety codes. Unpack and inspect the product for any shipping damages. If you find damages, do not install. Please note all showers must be installed by a professional and certified plumber otherwise warranty may be voided

shower

Shower

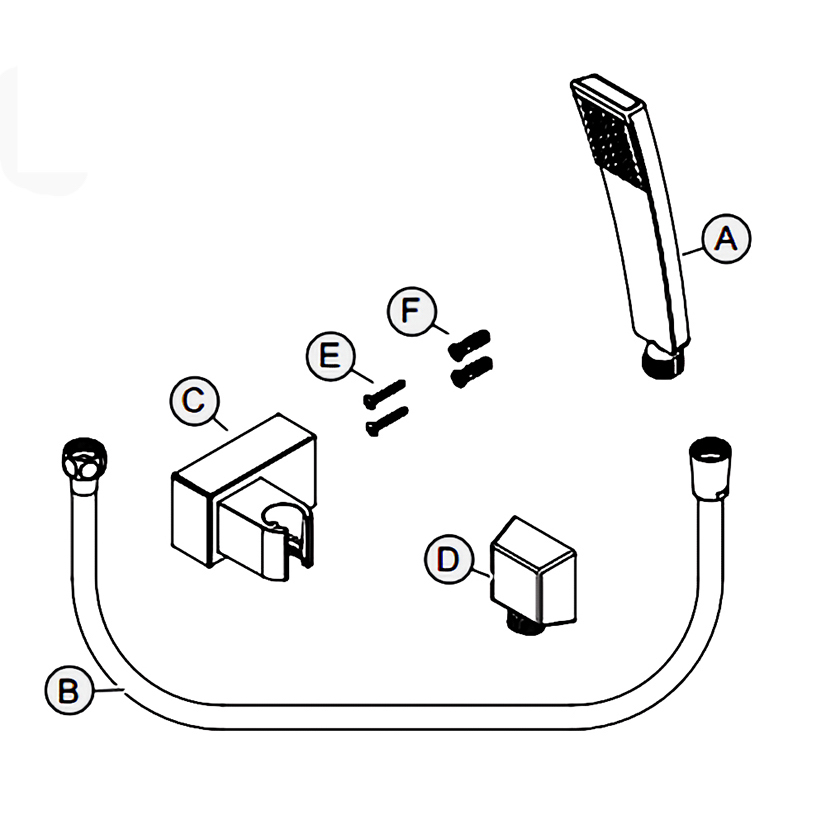

	Shower Head Parts Included: Wall Mounting Arm Locking nut Wall trim Shower arm Showerhead Fixing screws and wall plugs (not shown)

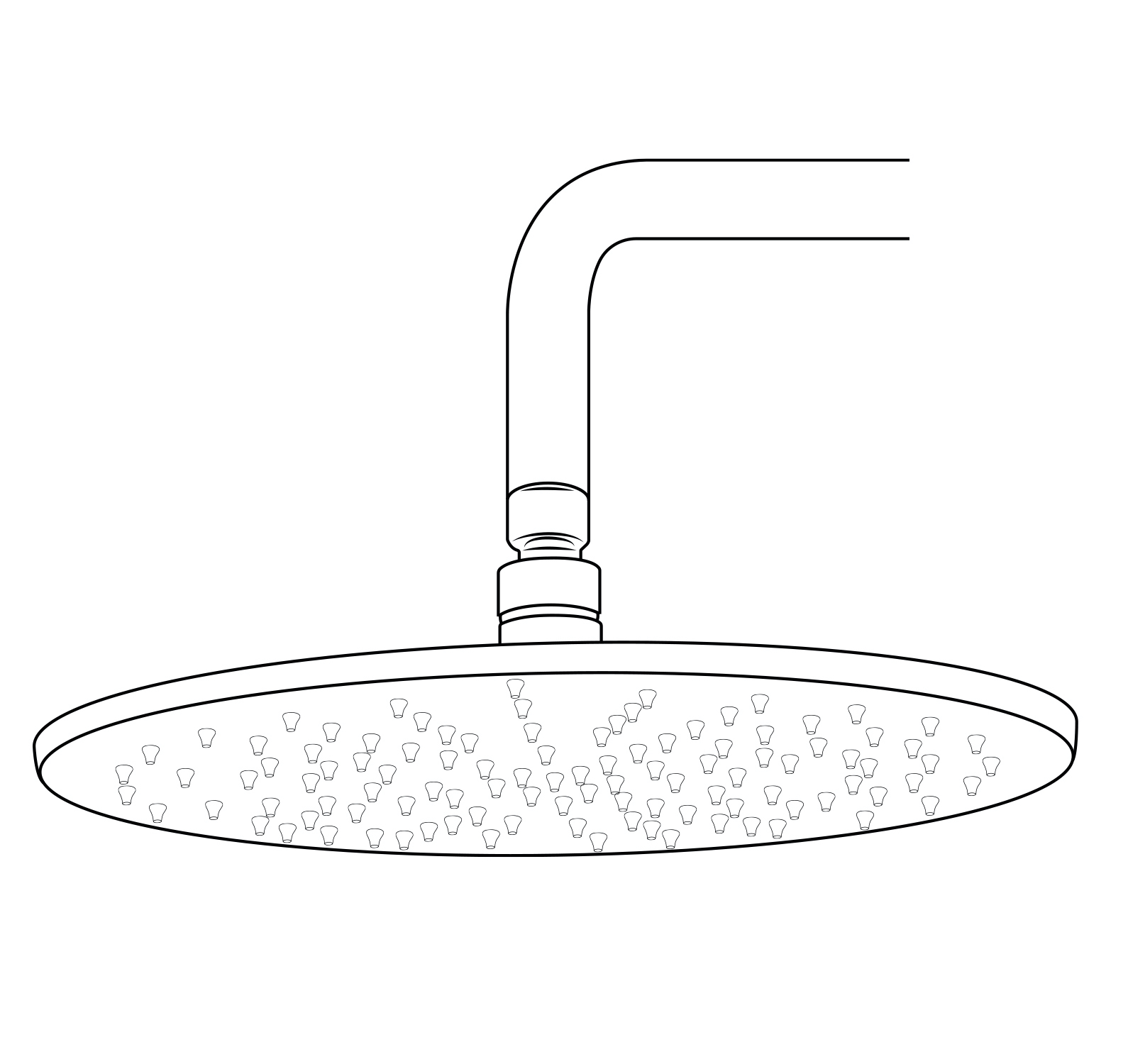

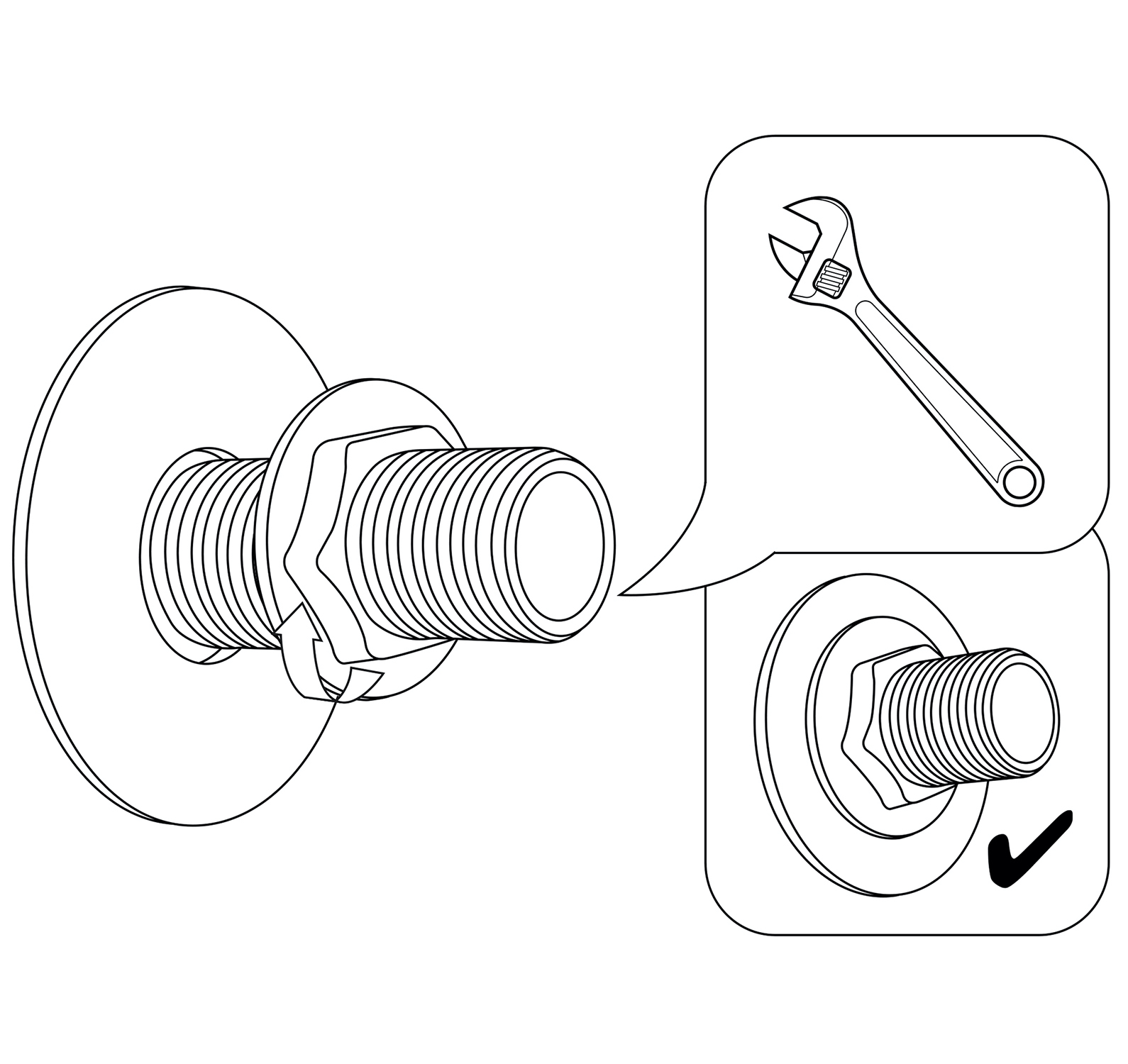

Step 1:		Step 2:		Step 3:
Wall Mount Round Showerhead	Showerhead		Showerhead
Wall Mount Round Showerhead
Step 4:		Step 5:		Step 6:
Wall Mount Round Showerhead

Step 1:		Step 2:		Step 3 & 4:
	Hand Held Shower		Hand Held Shower
Handheld Shower		Handheld Shower		Handheld Shower
Step 5:		Step 6 & 7:		Step 8:

2. HOLE LOCATIONS FOR WALL MOUNT

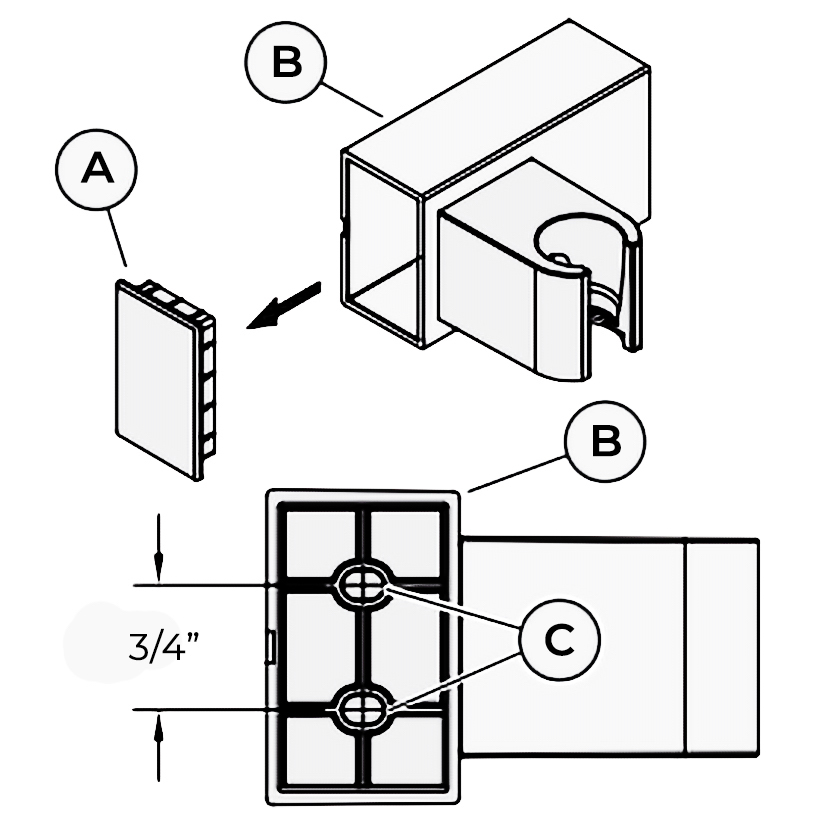

Remove Front Cover (A) from Wall Mount (B). Use Wall Mount Screw Holes (C) to place the desired location. Using a punch or awl, tap the screw hole locations.
Holes must be vertically aligned.

3. ANCHOR INSTALLATION

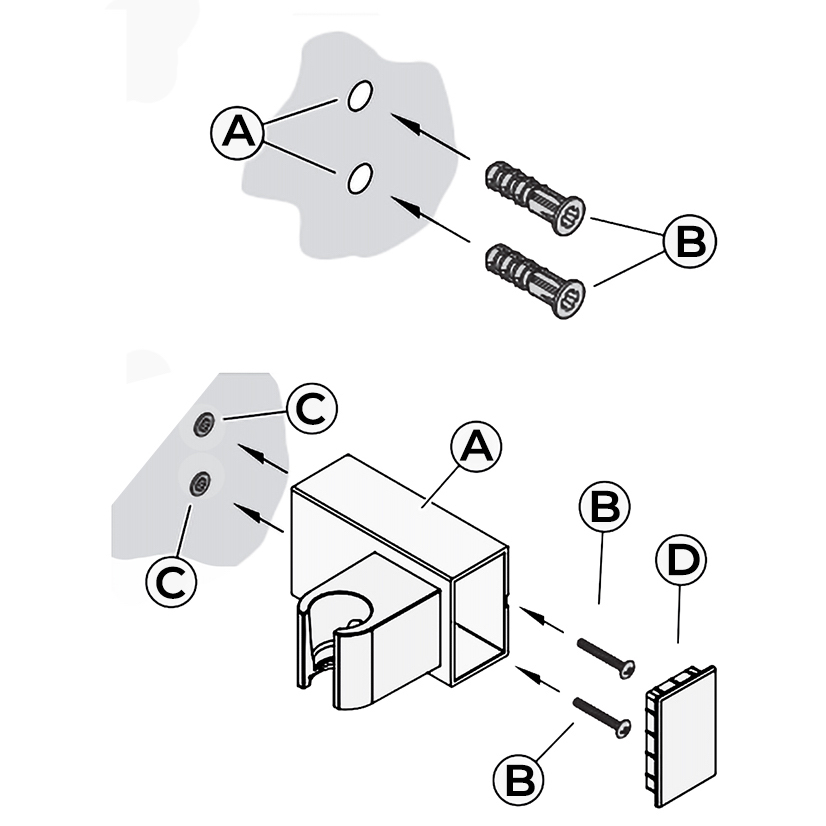

Drill two 1/4” dia. Holes (A). If installing into a studs drill two 1/8” dia. holes and do not use Anchors (B). Insert Anchors (B) into Holes (A) and tap flush with the wall.

4. WALL MOUNT INSTALLATION

Place Wall Mount (A) into wall and inset Mounting Screws (B) through Wall Mount Holes (C) and tighten until Wall Mount (A) is flush with the wall.
Do Not Over Tighten! Insert Front Cover (D) into Wall Mount (A)

5. DROP ELBOW & HOSE INSTALLATION

Apply PTFE plumbers tape on both ends of Pipe Nipple (A) (not included). Screw Pipe Nipple (A) into the elbow inside the wall.
The Pipe Nipple (A) is to project 1/4” – 3/4” from the finished wall. Screw Drop Elbow (B) onto Pipe Nipple (A) and tighten until Drop Elbow (B) is property positioned and flush to the finished wall.

Place Rubber Seal (C) inside Hex Hose Fitting (D). Connect Hex Hose Fitting (D) into Drop Elbow Outlet (E) by turning Hex Hose Fitting (D).

6. UNIT STARTUP

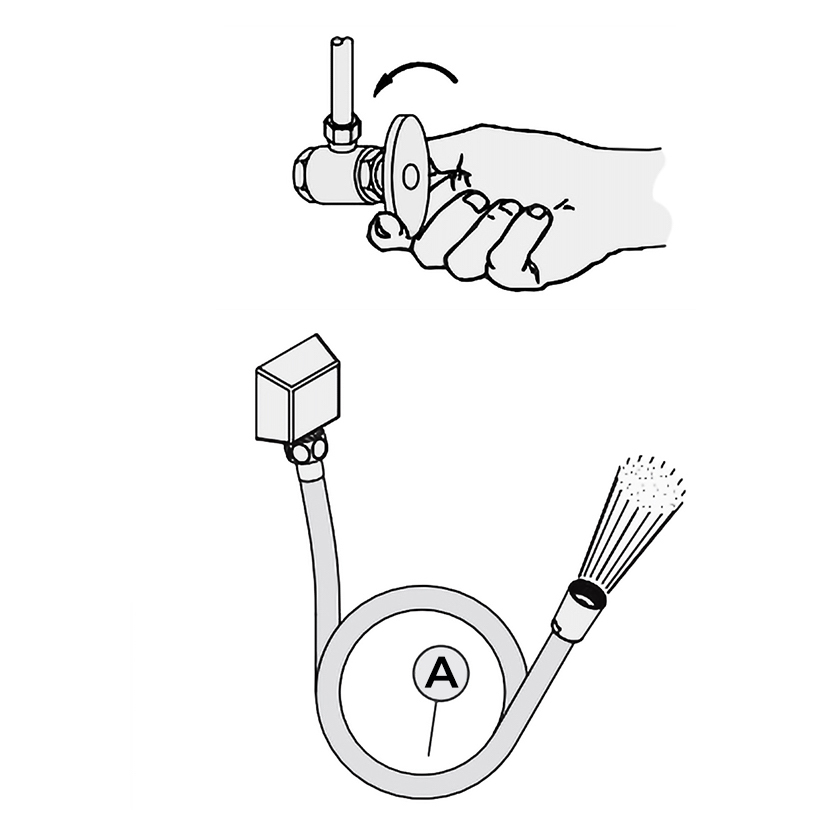

Turn on hot and cold water supplies, and check all connections for leaks.

7. FINAL FLUSHING

For final flushing, turn the valve on and allow water to run through the Hose (A) for several minutes.
Allow water to run for several minutes until all foreign matter clears the line.

8. SHOWER ARM INSTALLATION

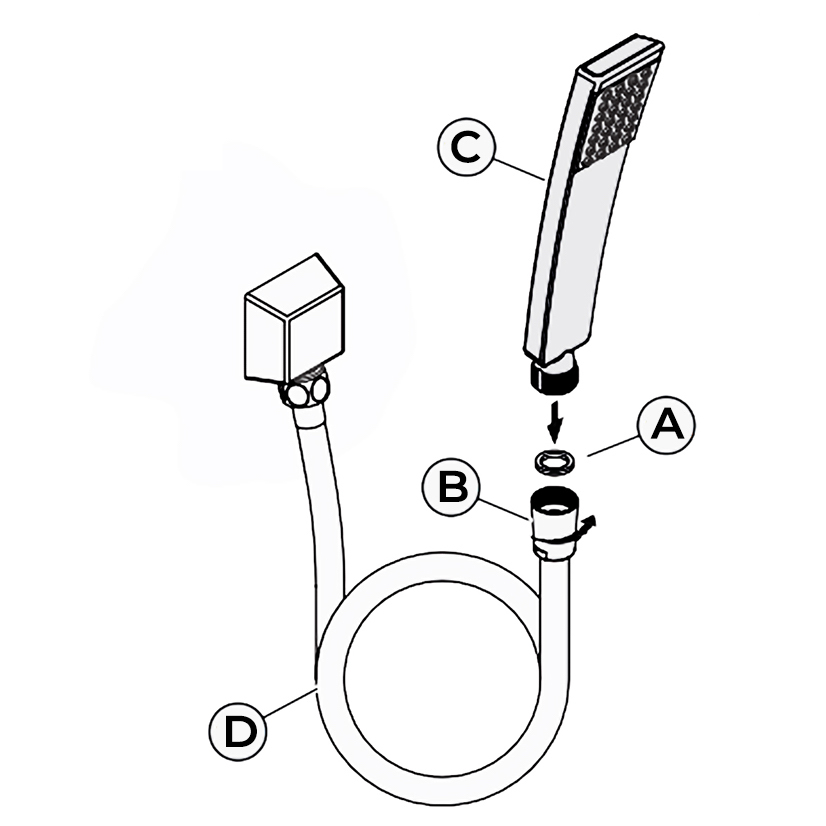

Place Rubber Seal (A) inside Tapered Hose Fitting (B). Conned Hand Shower (C) to Hose (D) by turning Tapered Hose Fitting (B ) clockwise.
Warning: Make sure Hand Shower (C) is securely tightened to Hose (D).

Step 1:		Step 2:		Step 3:
	Body Sprays		Body Sprays
Set the decorative cover on the body jet.		Roll the raw material belt in the thread screws.		Use a wrench to tighten 6 body jets on the water outlet holes in a clockwise direction.

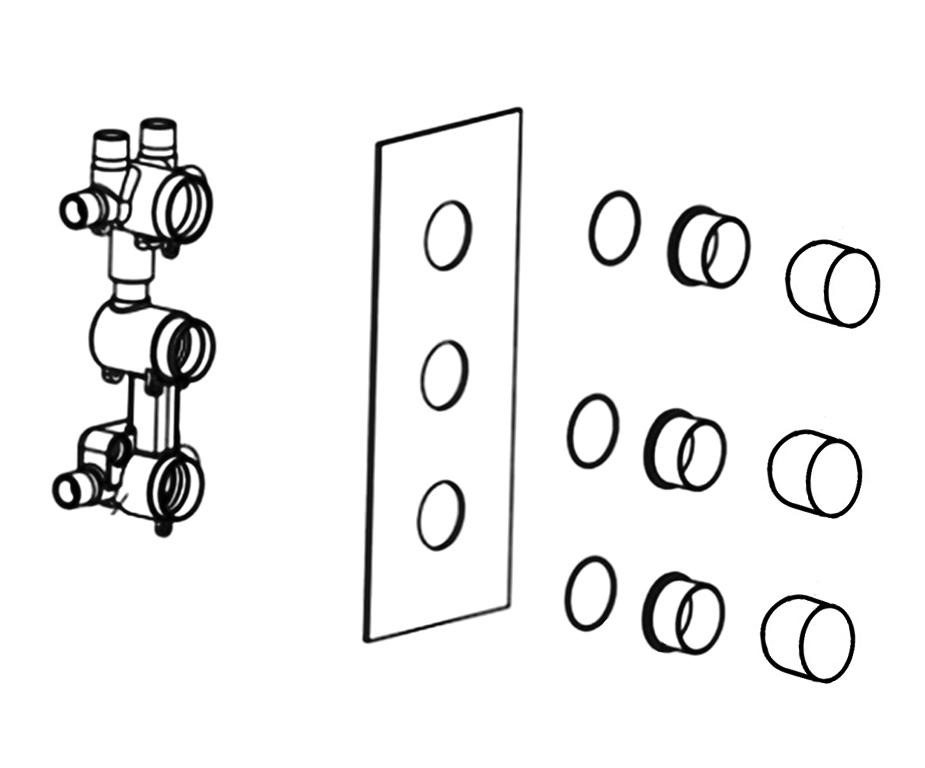

Mixer Exposed View	Mixer	Mixer Connections

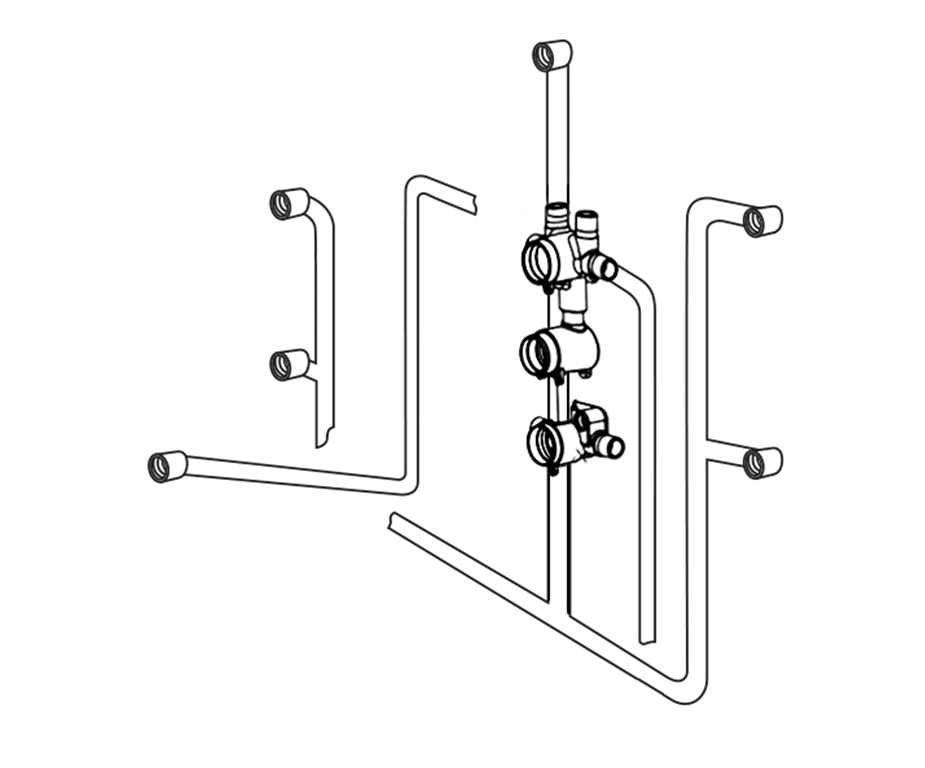

Mixer Exposed View		Mixer Connections
