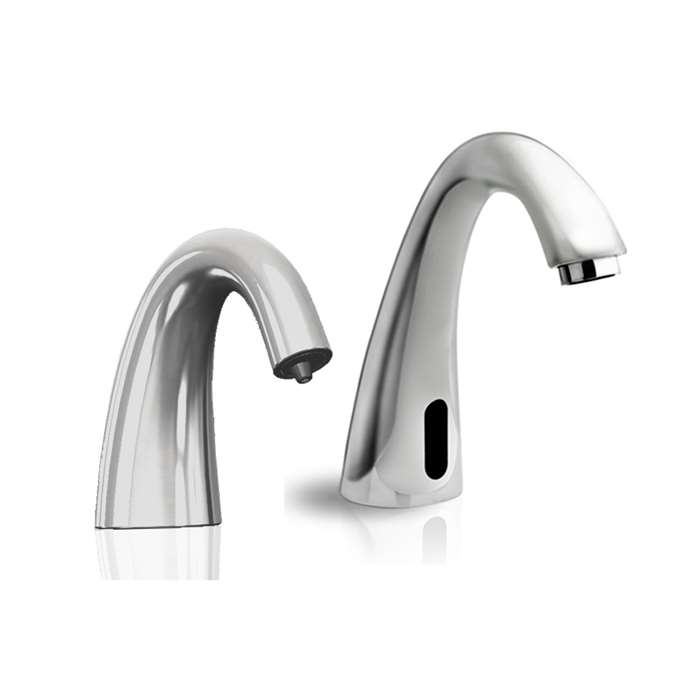

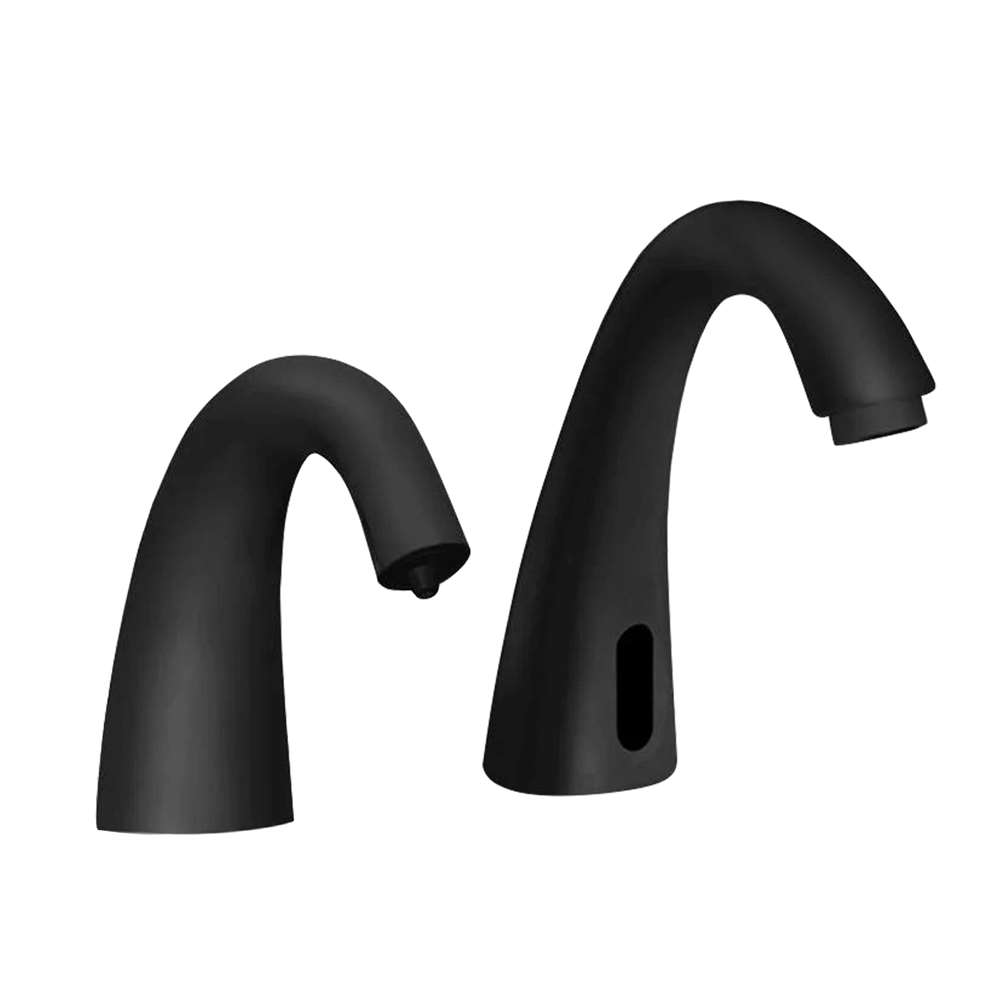

BathSelect Automatic Commercial Sensor Faucet & Soap Dispenser designed for new and retrofit installations
- Motion sensor with touchless operation
- Sensitive Sensor with Infrared AI Smart-Chip
- Factory set to 30-second Auto Shutoff (can be adjusted).
- Water Pressure: 0.5 - 7.0 KGS/cm, 10 - 125 psi
- Solid Brass Construction, Polished Chrome Finish
- Installation made easy with simplified instructions
- Water resistant solenoid enclosure
- Advanced energy saving design for long lasting battery life
- Comes complete with Hoses & Accessories
- Power Supply: AC110V And DC6V (batteries not included)
- AC/DC power option.
- ADA Compliant, commercial sensor faucet.
- Can be installed in new or retrofit applications.
- Usage: Commercial / Residential
- Ideal for commercial use applications in public restrooms, restaurants, office building, public facilities, hospitals.
- Fits all standard US plumbing.
Fits all standard faucets. BathSelect touchless faucet comes with AC/DC option (hardwired and battery backup)Water Pressure: 0.5 - 7.0 KGS/cm, 10-125 psi.
|
Sensor Activated Faucet Special Features: Intelligent: with its micro-computer controlling its action, the faucet will self adjust its best detection zone as per the color and shape of lavatory Low power consumption: 4AA alkaline batteries can be used for 2 years at 200 cycles a day. Convenient to maintain: Built-in strainer prevents sundries from entering the solenoid valve and the strainer is easy to clean
|
Comes Complete for easy installation.
Reduces the transfer of germs by preventing cross-contamination and re-contamination of germs and bacteria by not touching the faucets or handles. Cut down on water usage by minimizing waste of water while soaping, lathering, scrubbing and drying hands by eliminating unnecessary and unattended water flow.
Sensor Activated Faucet Special Features:
- Durable Vandal-Resistant Brass Body; Ideal for commercial high use restroom applications
- Intelligent: with its micro-computer controlling its action, the faucet will self adjust its best detection zone as per the color and shape of lavatory
- Flashing light indicator; a diagnostic indicators for power up, low battery, and solenoid function.
- Meaning of the codes are described in the installation instructions.
- Convenient to maintain; with built-in strainer to prevent sundries from entering the solenoid valve and the strainer is easy to clean
- Faucet can be mount to any sink surface.
- ADA Compliant.
- Batteries life 8,000 cycles per month and with enough water pressure is approx. 5 year service life of the batteries.
- Adjustable sensing range; while the factory range is set about 4"to 5"from the sensor, it can be adjusted.
-
Diameter of inlet pipe:
DN15
-
Diameter of outlet pipe:
DN15
-
Water Pressure:
0.05Mpa - 0.7Mpa
-
Power and Voltage:
DC.6V, AC.220V - 50/60Hz
-
Power Consumption:
0.5MW, <2W
-
Detection Zone:
Factory set 25cm/10" (based on standard inductive board)
-
Ambient Temperature:
1 - 45 ℃ / 33.8 -113 °F
-
Degree of protection by enclosure:
1P56
Automatic Commercial Sensor Faucet Product Description
|
The Plato is a motion electronically controlled faucets eliminate the need to touch or turn handles and the temperature and flow rate can be pre-set. Through the use of sensor beams the automatic faucet determines when an object is in front of it and automatically turns on the faucet. Since there is nothing to touch and nothing to reach for, an automatic faucet eliminates all of that cleaning and disinfecting that you do to try to maintain a hygienic surface.
|
Sensor Faucet water-saving; hygienic; automatically opens and closes
to free hands - no touch, avoid bacteria mutual infections! A great addition to powder room; kids bathroom, hotels, restaurants, public places, government facilities...!
- This Sensor Faucet Applications; Residential, Commercial use & ADA
- This faucet is shipped complete. ANSI A112.18.1M CSA Standard B125, 2.2 U.S.
- GPM Complies with NSF Standard 61, Section 9
- Flow Preventers Stainless Steel Hoses Mounting Hardware Batteries Pre-installed
- All the hardware necessary for satisfactory installation
- Specifications and Dimensions
- Spout: Chrome Plated Solid Brass Power: 4 (AA) Alkaline Batteries or AC Adapter
- Battery life expectancy: 250,000 cycles Solenoid valve: 6 Volt magnet latching
- Working Water Pressure: 1 PSI -100 PSI
- Supply Inlet Size: 1/2” NPT Male
- Temperature Control; check Options for temperature control sensor faucets
- Built-in Pop-Up Drain
- Rod: N/A
- Sensor type and Location: Active Infrared, Neck mount Sensor
- Microprocessor: Digital, Pug And Play Sensing Range: 2” to 6”
- Response Time: 0.3 Second
- Shut-Off Delay Time: 2 SecondsAnti vandalism maximum Running Time: 60 Seconds
- Particle filter size: 50
- Mesh Aerator: 2.2 GPM Standard
|
|
|
 |
|
 |
|
|
|
 |
|
 |
|
Features
Plato Sensor Faucet D514 Product Description: Electronic Sensor Faucet
- Water efficient,
- Hygienic,
- No-touch activation,
- Easy installation Durable,
- Solid DR-brass construction,
- Built-in filter,
- ADA compliant,
- Vandal resistant,
- Waterproof components,
- Complies with Food Premises Standard
Faucet Specification
-
Body: Solid brass with Chrome
- Power: i>DC AA Alkaline Battery*4, ii>AC/DC alternately
- Working pressure: 0.5~7Bar
- Water supply pipe size: DN15 (G1/2")
- Ambient Tem. Range: 0.1~ 55 Celsius
- Sensing distance: adjustable 25cm (default 25cm)
- Sensing range setup: Digital
- Response time: 0.3 sec (default)
- Off Delay time: 1 sec (default)
- Pop-up drain: yes
- Fresh Battery Life Cycle: 500,000 on/off
- Low Battery Indicator: Red Led flash
- Weakness of Battery: Red Led on,
- Usage: Commercial / Residential
|
|
|
|
|
|
|
Good Sensor faucet Combo Set
